Description

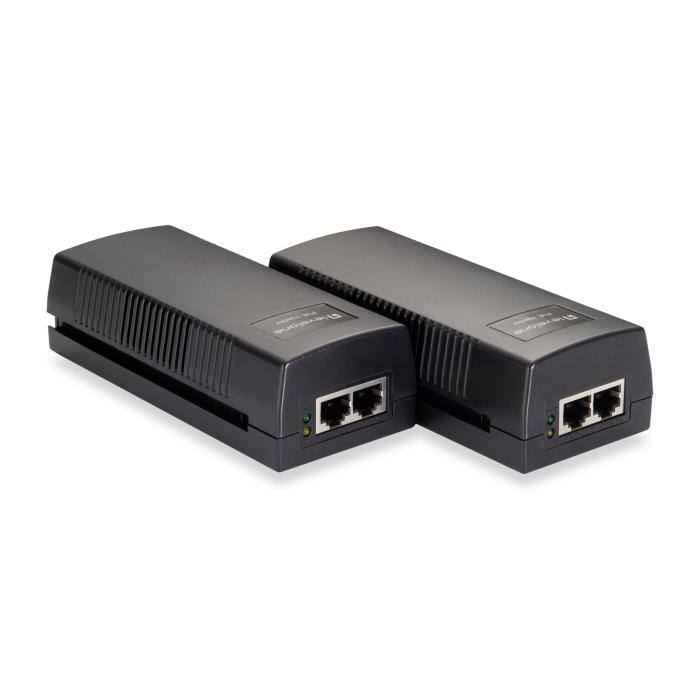

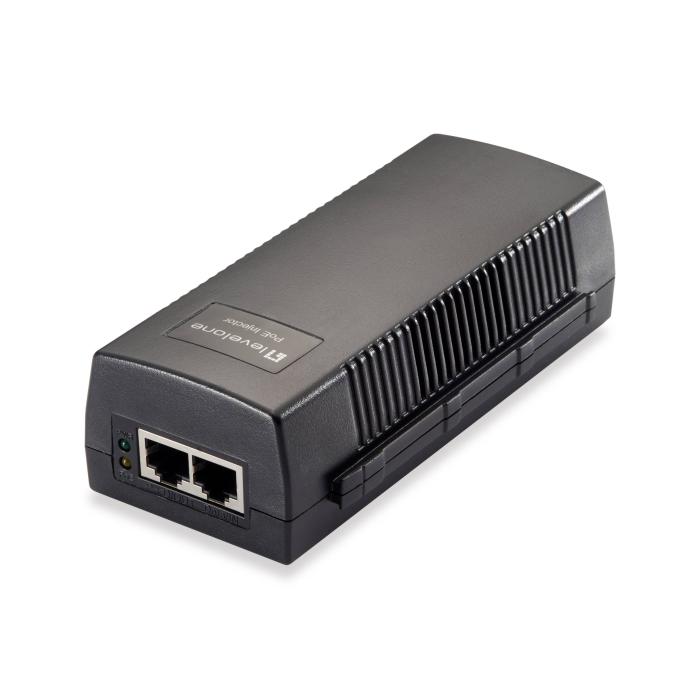

Connect and power network devices with the LevelOne POI-3014 PoE adapter and injector, a compact solution for carrying data and power over a single Ethernet cable. It supports speeds of 10, 100 and 1000 Mbit/s under the IEEE 802.3, IEEE 802.3ab and IEEE 802.3u standards, and incorporates two Ethernet LAN RJ-45 ports. Power over Ethernet operates at 52 V with a power of 30 W per port and a maximum consumption of 30 W, with an output current of 0.6 A and an input current of 0.8 A. Its AC adapter operates with an input voltage of 100 - 240 V and a frequency of 50/60 Hz. The pin assignment and polarity is 4/5 (+) and 7/8 (-), and the PoE and power LED indicators help to verify the operating status. It reaches a maximum operating distance of 100 m and protects against overloads. It has a black colour, a weight of 350 g and dimensions of 145.7 x 43.4 x 64.4 mm.
Specifications
Network
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Power over Ethernet (PoE): Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Features
- Product colour: Black
- Wall mountable: Yes
- Plug and Play: Yes
- Surge protection: Yes
- Maximum operating distance: 100 m

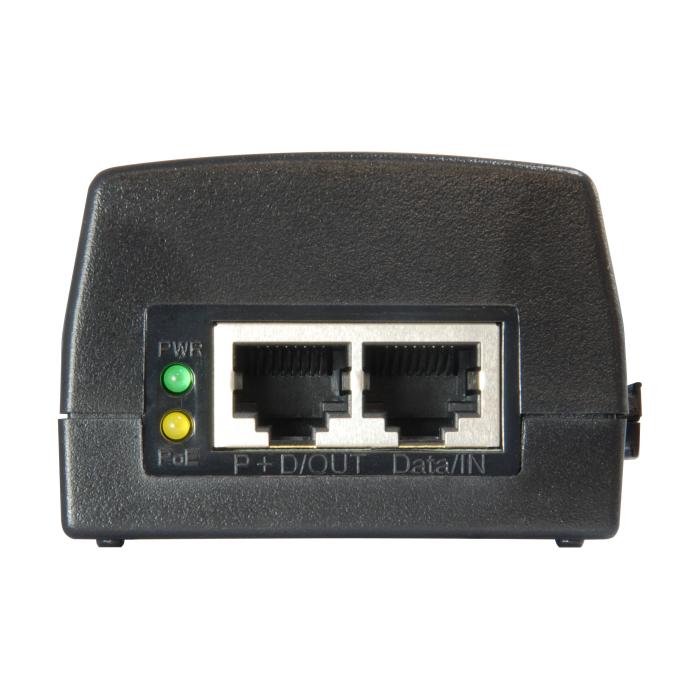

- LED indicators: PoE, Power
- Pin assignment & polarity: 4/5 (+), 7/8 (-)
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
Power
- Power over Ethernet (PoE) voltage: 52 V

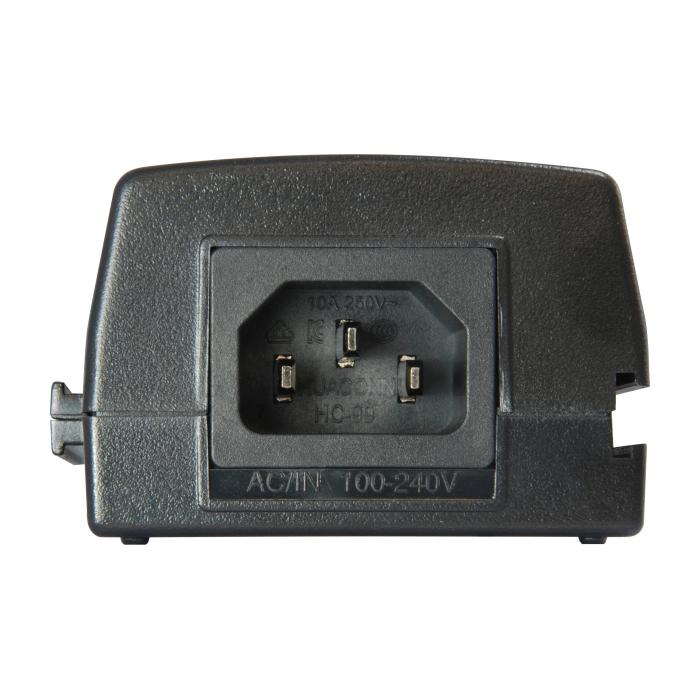

- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- Input current: 0.8 A
- Output current: 0.6 A
- Power consumption (max): 30 W
- Power over Ethernet (PoE) power per port: 30 W
Certificates
- Compliance certificates: RoHS
- Certification: FCC Part 15, CE
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): 0 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 145.7 mm
- Depth: 64.4 mm
- Height: 43.4 mm
- Weight: 350 g
Packaging content
- Number of products included: 1 pc(s)
- Quick installation guide: Yes
Packaging data
- Package width: 210 mm
- Package depth: 145 mm
- Package height: 55 mm
- Package weight: 400 g
Logistics data
- Harmonized System (HS) code: 85044095
