Description

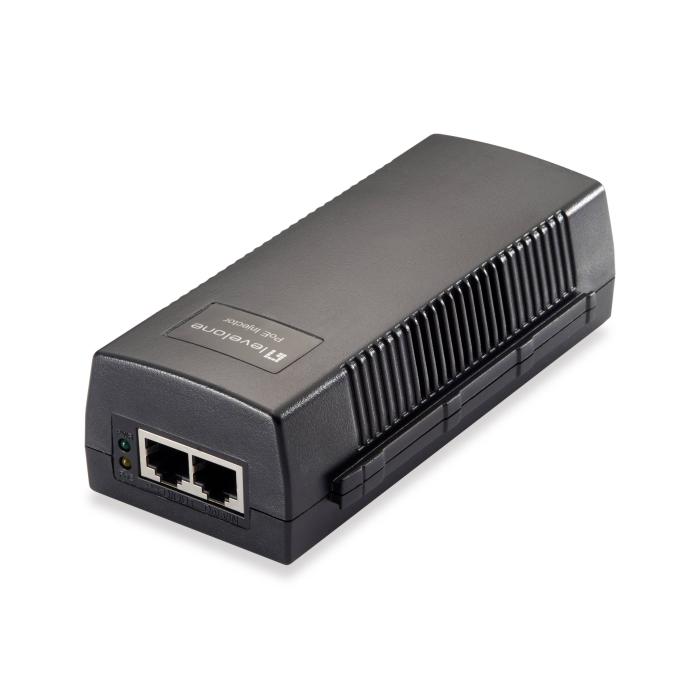

The LevelOne POI-3010 PoE adapter and injector is a black device that combines both functions in a single unit. It offers two RJ-45 Ethernet ports compatible with Fast Ethernet and Gigabit Ethernet, with speeds of 10, 100 and 1000 Mbit/s. It complies with the IEEE 802.3, 802.3u, 802.3ab, 802.3af and 802.3at standards, and supports a maximum operating distance of 100 m. It provides up to 30 W of power per PoE port with a voltage of 52 V, thanks to its 100 to 240 V and 50/60 Hz power adapter. It incorporates overload protection and PoE and power LED indicators. The pin assignment and polarity is 1/2 (+) and 3/6 (-). Its Plug and Play function and wall mounting make installation easy. With dimensions of 143 x 38 x 51 mm and a weight of 350 g, it is a compact solution for powering network devices.
Specifications
Network
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Power over Ethernet (PoE): Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Features
- Wall mountable: Yes
- Plug and Play: Yes
- Surge protection: Yes
- Maximum operating distance: 100 m

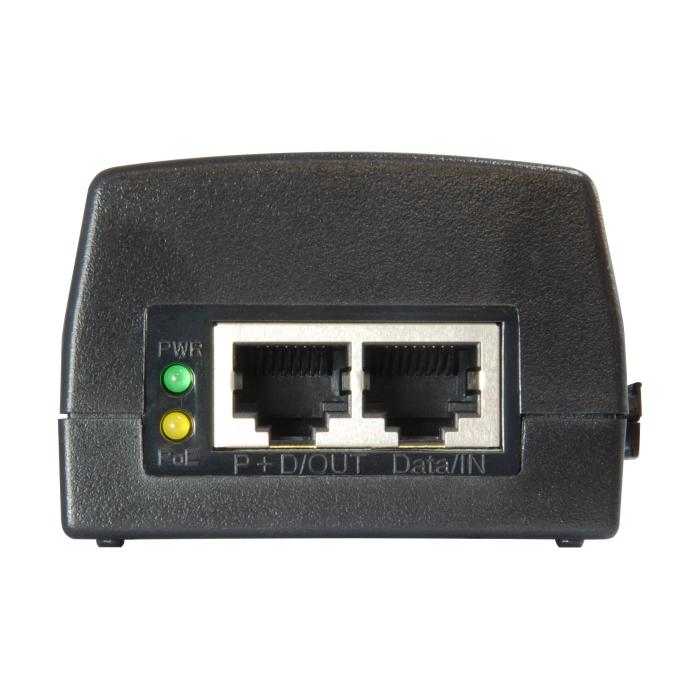

- LED indicators: PoE, Power
- Pin assignment & polarity: 1/2 (+), 3/6 (-)
- Product colour: Black
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
Power
- Power over Ethernet (PoE) voltage: 52 V

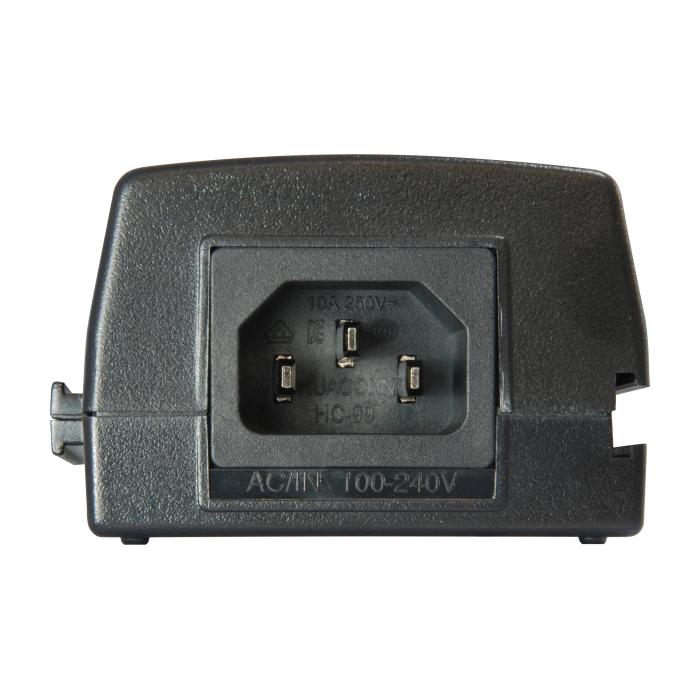

- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- Input current: 0.8 A
- Output current: 0.6 A
- Power consumption (max): 30 W
- Power over Ethernet (PoE) power per port: 30 W
Certificates
- Compliance certificates: RoHS
- Certification: FCC Part 15, CE
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): 0 - 70 °C
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 143 mm
- Depth: 51 mm
- Height: 38 mm
- Weight: 350 g
Packaging content
- Number of products included: 1 pc(s)
- Power cord included: Yes
- Quick installation guide: Yes
Packaging data
- Package width: 210 mm
- Package depth: 125 mm
- Package height: 55 mm
- Package weight: 400 g
- Package type: Box
Logistics data
- Harmonized System (HS) code: 85044095
