Description

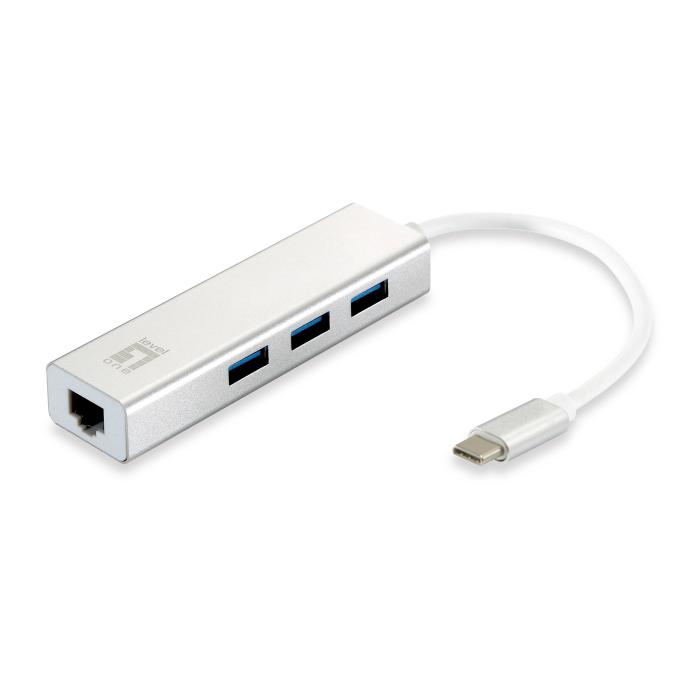

LevelOne USB-0504 network adapter and card with USB Type-C host interface and an RJ-45 Ethernet LAN port reaching a data transfer rate of 1000 Mbit/s. It features Gigabit Ethernet with 10/100/1000BaseT(X) cabling technology and wired connection, plus full duplex support. The Realtek RTL8153 chipset manages the network connection under the IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u and IEEE 802.3x standards. It has three USB ports and USB 3.2 Gen 1 (3.1 Gen 1) version to expand the device's connectivity. Its silver colour and its dimensions of 110 x 16.5 x 23.5 mm (width x height x depth) make it a compact accessory to carry with you. The weight of 44 g reinforces that portability for everyday use.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB Type-C
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
- USB ports quantity: 3
- USB version: 3.2 Gen 1 (3.1 Gen 1)
Network
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 1000 Mbit/s
- Cabling technology: 10/100/1000BaseT(X)
- Wake-on-LAN ready: Yes
- Full duplex: Yes
Design
- Component for: PC/Laptop
- Product colour: Silver
- Internal: No
- Chipset: Realtek RTL8153
- Plug and Play: Yes
- Country of origin: China
Power
- USB powered: Yes
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -5 - 80 °C
- Operating relative humidity (H-H): 0 - 85%
- Storage relative humidity (H-H): 0 - 85%
Weight & dimensions
- Width: 110 mm
- Depth: 23.5 mm
- Height: 16.5 mm
- Weight: 44 g
Packaging data
- Package width: 71 mm
- Package depth: 20 mm
- Package height: 152 mm
- Package weight: 64 g
Packaging content
- Quick installation guide: Yes
Technical details
- Compliance certificates: CE, RoHS
