Description

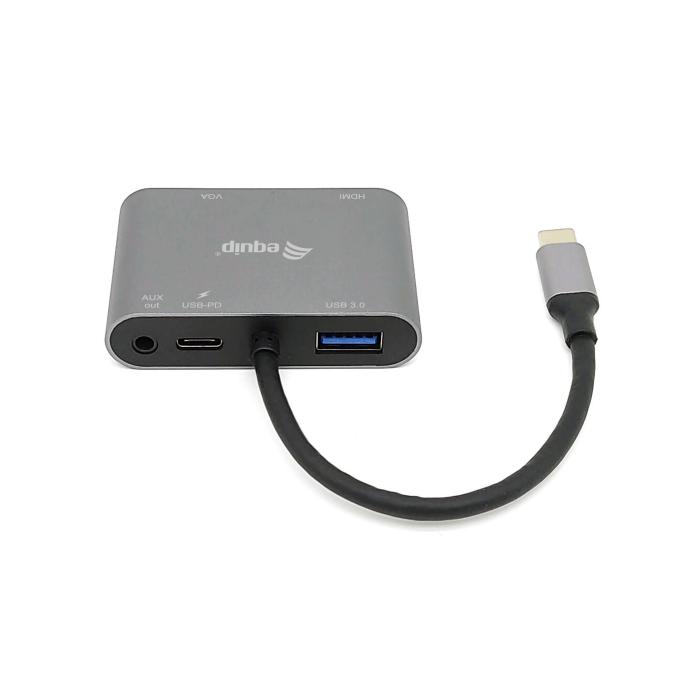

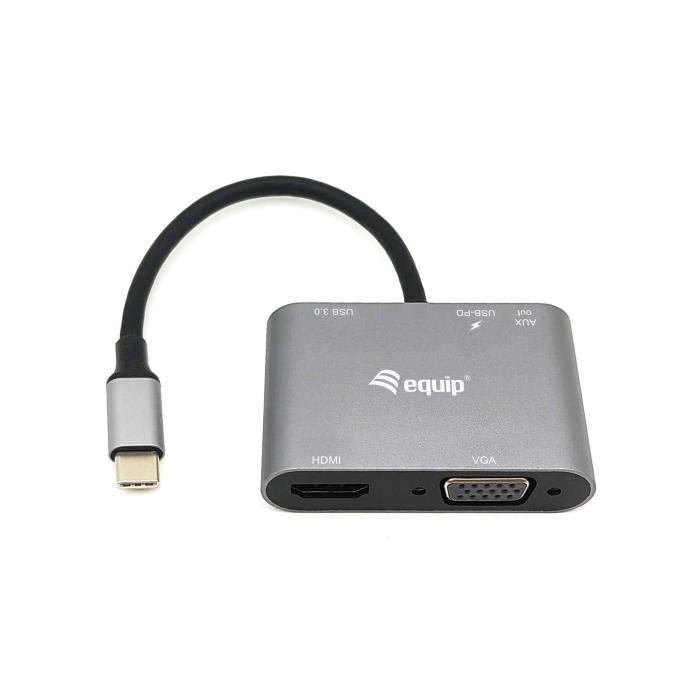

EQUIP 5 in 1 multifunctional USB-C adapter with HDMI, VGA (HD15), PD up to 100 W, USB 3.0 and AUX, in black and grey. Its host interface is USB 3.2 Gen 1 Type-C with cable connection and power delivery up to 100 W with USB Power Delivery 3.0 revision. It features an HDMI port, a VGA (D-Sub) port, a USB 3.2 Gen 1 Type-A port, a USB 3.2 Gen 1 Type-C port and a headphone output, with a data transfer rate of 5 Gbit/s. It reaches a maximum digital resolution of 4096 x 2160 pixels and a maximum analogue resolution of 1920 x 1080 pixels, with a maximum refresh rate of 60 Hz and support for 2 displays. Power is supplied via USB and it is compatible with Windows 10 and Mac OS X 10.10 Yosemite, among other systems. Its casing is made of aluminium and it weighs 43 g, with dimensions of 45 x 285 x 15 mm and a 0.15 m cable.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.0
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- Microphone in: No
- Headphone outputs: 1
Network
- Ethernet LAN: No
Performance
- Card reader integrated: No
- Data transfer rate: 5 Gbit/s
- Maximum digital resolution: 4096 x 2160 pixels
- Maximum analog resolution: 1920 x 1080 pixels
- Number of displays supported: 2
- Maximum refresh rate: 60 Hz
- Product colour: Black, Grey
- Plug and Play: Yes
- Housing material: Aluminium
- Country of origin: China
Power
- Power source type: USB
Software
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Mobile operating systems supported: Android 10, Android 10.0, Android 11.0, Android 12.0, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7
Weight & dimensions
- Width: 45 mm
- Depth: 15 mm
- Height: 285 mm
- Weight: 43 g
Packaging data
- Package width: 105 mm
- Package depth: 27 mm
- Package height: 215 mm
- Package weight: 87 g
Technical details
- Compliance certificates: CE, RoHS
Logistics data
- Products per master (outer) case: 120 pc(s)
- Master (outer) case width: 470 mm
- Master (outer) case length: 400 mm
- Master (outer) case height: 550 mm
- Master (outer) case gross weight: 11.4 kg
- Harmonized System (HS) code: 84733020
Other features
- Cable length: 0.15 m
