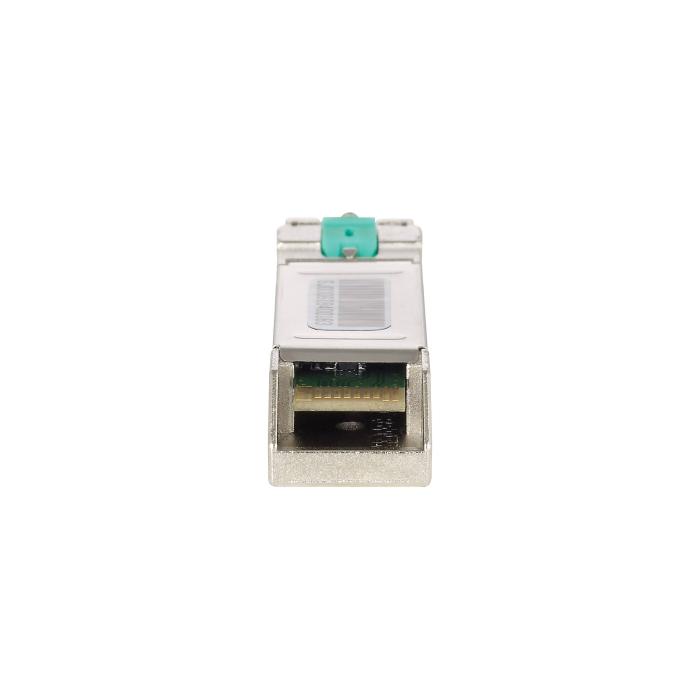

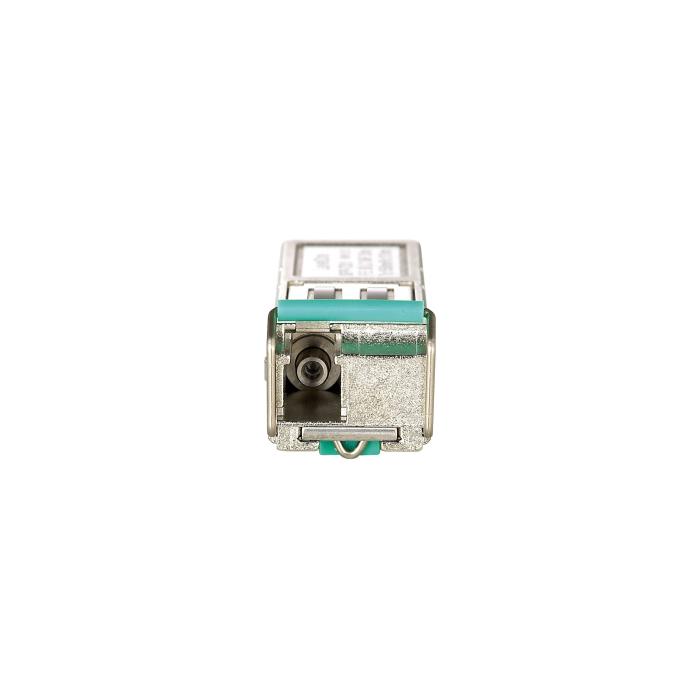

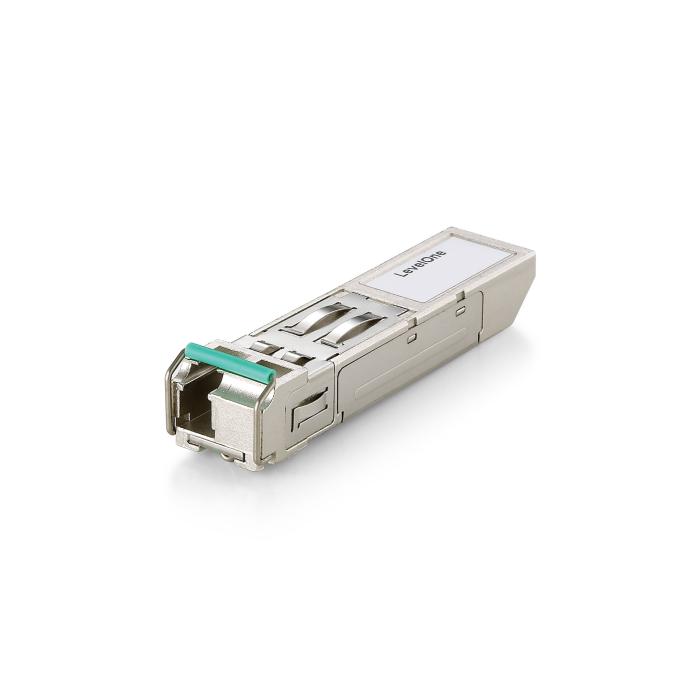

LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm

28.34 €
23.42 € without VAT

More info

Brand: LEVELONE
SKU: 119591 PRC: 603597 EAN: 4015867154748 PN: 551087

Description

Specifications

Performance

  • SFP transceiver type: Fiber optic
  • Maximum data transfer rate: 155 Mbit/s
  • Interface type: SFP
  • Single-mode fiber (SMF) supported: Yes
  • Fiber optic connector: LC
  • Fiber cable diameters supported (core/cladding): 9/125 µm
  • Maximum transfer distance: 20 m
  • Tx power (min): -14 dBmW
  • Tx power (max): -8 dBmW
  • Networking standards: IEEE 802.3ah
  • Fiber ports quantity: 1

Features

  • Hot-swap: Yes

Power

  • Input voltage: 3.3 V
  • Maximum voltage: 6 V
  • Maximum current: 0.3 A

Certificates

  • Compliance certificates: RoHS
  • Safety: EN 60825-1
  • Certification: CE, FCC

Operational conditions

  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -40 - 85 °C
  • Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

  • Width: 13.7 mm
  • Depth: 56.5 mm
  • Height: 8.95 mm
  • Weight: 20 g

Packaging content

  • Quantity per pack: 1 pc(s)

Packaging data

  • Package width: 75 mm
  • Package depth: 51 mm
  • Package height: 130 mm
  • Package weight: 60 g

Logistics data

  • Harmonized System (HS) code: 85369010
