Description

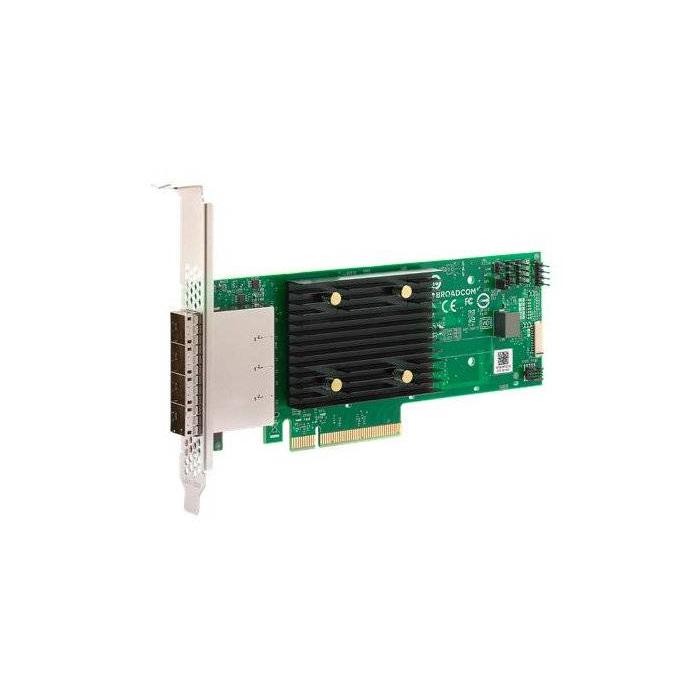

LENOVO internal interface card and adapter, in multicolour, connects a server to storage devices via its PCIe host interface and Mini-SAS output. Its PCIe 4.0 standard and low-profile form factor allow it to be integrated into equipment with limited space. It reaches a maximum data transfer rate of 12 Gbit/s, performance suitable for working environments with large volumes of data. It includes S.M.A.R.T. support, which facilitates monitoring of the status of connected drives. Its host interface is male and is intended for use with servers. It works on both Linux and Windows operating systems, providing deployment versatility. It supports an operating temperature range of 10 to 55 °C and a relative humidity range for operation of 20 to 90%. For storage, it supports -40 to 70 °C and a relative humidity of 5 to 95%.
Specifications
Ports & interfaces
- Host interface: PCIe
- Host interface gender: Male
- Output interface: Mini-SAS
- Expansion card form factor: Low-profile
- Expansion card standard: PCIe 4.0
Design
- Internal: Yes
- Product colour: Multicolour
- Purpose: Server
- Certification: FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) J
Features
- Data transfer rate (max): 12 Gbit/s
- S.M.A.R.T. support: Yes
Operational conditions
- Operating temperature (T-T): 10 - 55 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 20 - 90%
- Storage relative humidity (H-H): 5 - 95%
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Packaging data
- Quantity per pack: 1 pc(s)
