Description

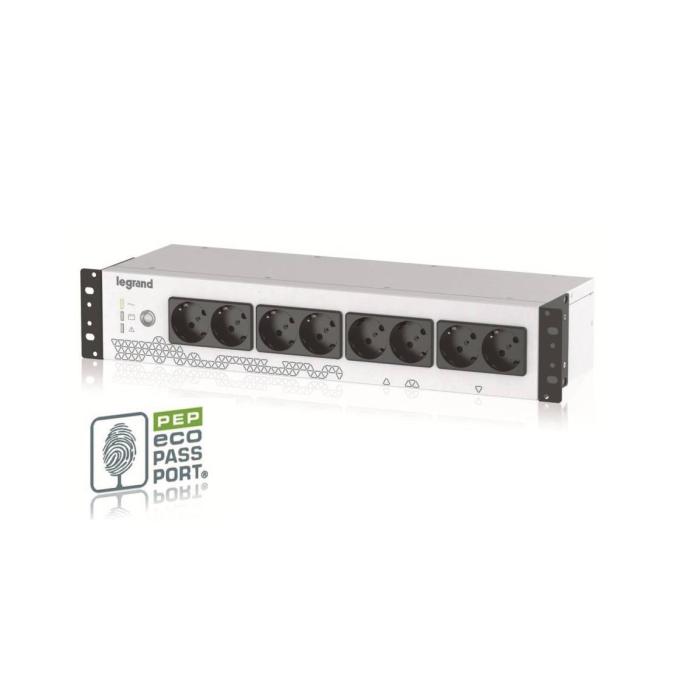

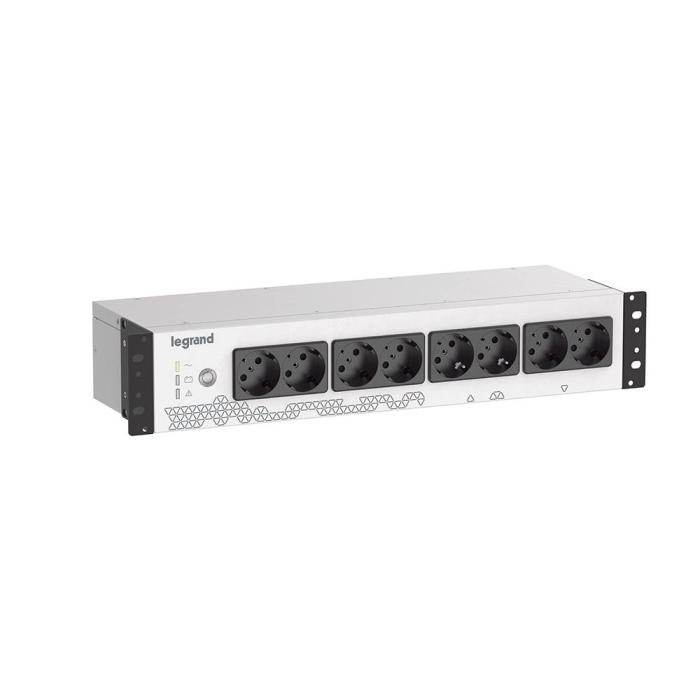

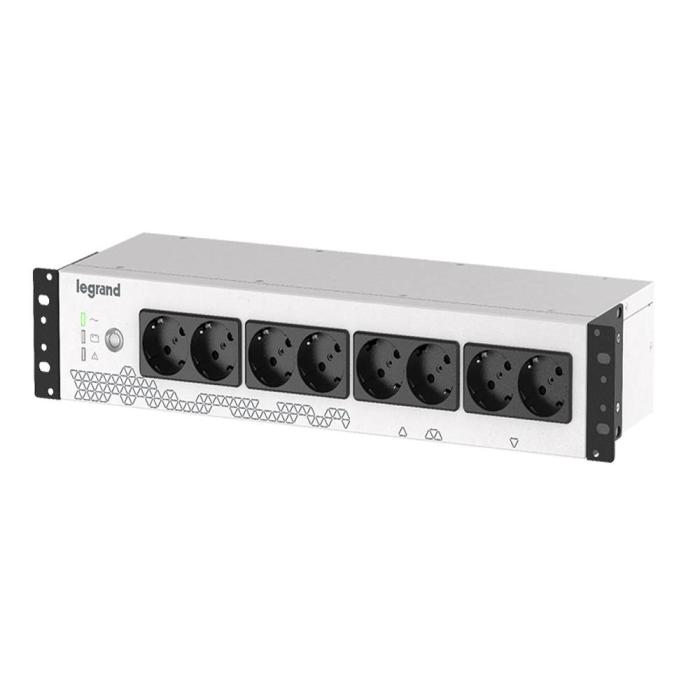

The Legrand Keor UPS PDU 800VA GR/IT INPUT 8 GR/IT OUTPUT is a standby uninterruptible power supply system that delivers an output power of 480 W (0.8 kVA) and features 16 AC outlets. It manages an input voltage between 160 V and 290 V, providing a regulated output voltage from 207 V to 253 V with a sine waveform and 10% regulation. Its input frequency of 45/65 Hz adjusts to an output of 50/60 Hz with 1 Hz regulation, supporting a maximum current of 10 A and operating at a noise level of 40 dB. It includes protection against excessive discharge, overload, and short circuit, with no automatic shutdown and no power-off output, operating on alternating current supply.
Specifications
Features
- UPS topology: Standby (Offline)
- Output power capacity: 0.8 kVA
- Output power: 480 W
- Waveform: Sine
- Input operation voltage (min): 160 V
- Input operation voltage (max): 290 V
- Input frequency: 45/65 Hz
- Output operation voltage (min): 207 V
- Output operation voltage (max): 253 V
- Output frequency: 50/60 Hz
- Output frequency regulation: 1 Hz
- Output voltage regulation: 10%
- Maximum current: 10 A
- Number of input phases: 1
- Number of output phases: 1
- Efficiency: 98%
- Output power factor: 0.6
- Noise level: 40 dB
- Power protection features: Overdischarge, Overload, Short circuit
- Potential-free output: No
- Auto shut-off: No
- Power source type: AC
Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 16 AC outlet(s)
- Number of type F outputs: 8
- USB port: Yes
- USB port type: USB Type-B
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery capacity: 9 Ah
- Number of batteries supported: 1
- Typical backup time at half load: 10 min
Design
- Form factor: Rackmount
- Rack capacity: 2U
- Product colour: Black, White
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
Certificates
- Compliance certificates: CE
- Certification: EN 62040-1, EN 62040-2
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 88 mm
- Depth: 150 mm
- Height: 440 mm
- Weight: 5.5 kg
Packaging data
- Package width: 88 mm
- Package depth: 5.81 mm
- Package height: 440 mm
- Package weight: 6.07 kg
Logistics data
- Products per pallet: 48 pc(s)
- Pallet net height: 102 cm
- Pallet net length: 100 cm
- Pallet net width: 120 cm
- Pallet net weight: 306.6 kg
- Harmonized System (HS) code: 85078000
- Master (outer) case width: 159 mm
- Master (outer) case length: 528 mm
- Master (outer) case height: 255 mm
- Master (outer) case gross weight: 6.39 kg
- Products per master (outer) case: 1 pc(s)
