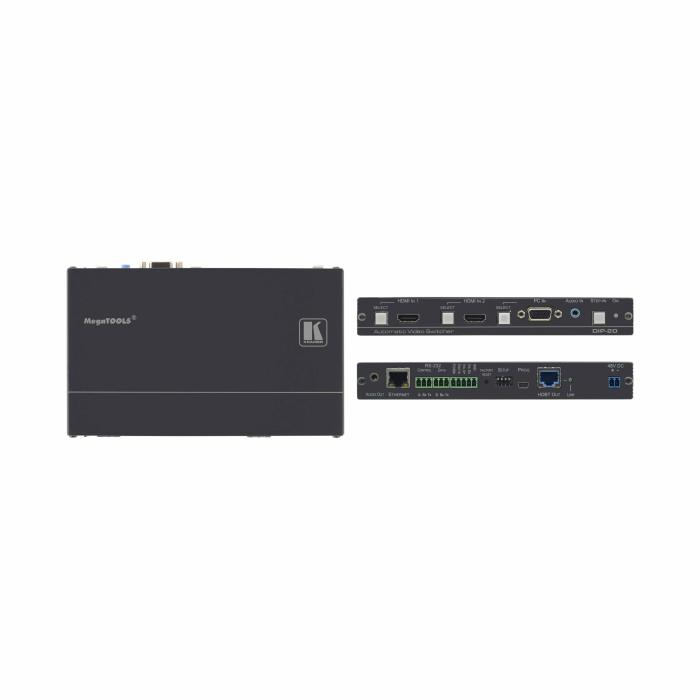

Kramer Electronics DIP-20 AV extender AV transmitter Black
More info
Brand: KRAMER ELECTRONICS
777.00 €Stock available: 0 units.
Unavailable
SKU:
81577
PRC:
241409
EAN:
7291063075897
PN:
DIP-20
Description
AV signal transmitter in black from Kramer Electronics, part of the DIP-20 series, a 19-inch rack-sized device made of aluminium for integration into professional installations. This model handles maximum resolutions of 3840 x 2160 pixels with support for 1080p and 2160p formats, reaching a maximum transfer distance of 180 metres thanks to its HDBaseT port and wired connectivity technology. It offers two HDMI inputs, one DisplayPort input, one VGA input port and a stereo audio output (L,R), with a signal-to-noise ratio of 75 dB to preserve signal quality.
Specifications
Features
- Type: AV transmitter
- Maximum resolution: 3840 x 2160 pixels
- Maximum transfer distance: 180 m
- Supported video modes: 1080p, 2160p
- Size (imperial): 48.3 cm (19")
- Material: Aluminium
- Signal-to-Noise Ratio (SNR): 75 dB
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- HDBaseT port: Yes
- VGA (D-Sub) input ports: 1
- HDMI in: 2
- DisplayPorts in: 1
- VGA (D-Sub) ports quantity: 1
- Audio (L/R) out: 1
Power
- Input current: 0.63 A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Dimensions (WxDxH): 187.5 x 115 x 25.4 mm
- Weight: 500 g
Packaging data
- Package dimensions (WxDxH): 345 x 165 x 52 mm
- Package weight: 1.2 kg
Packaging content
- Cables included: DC, DisplayPort
