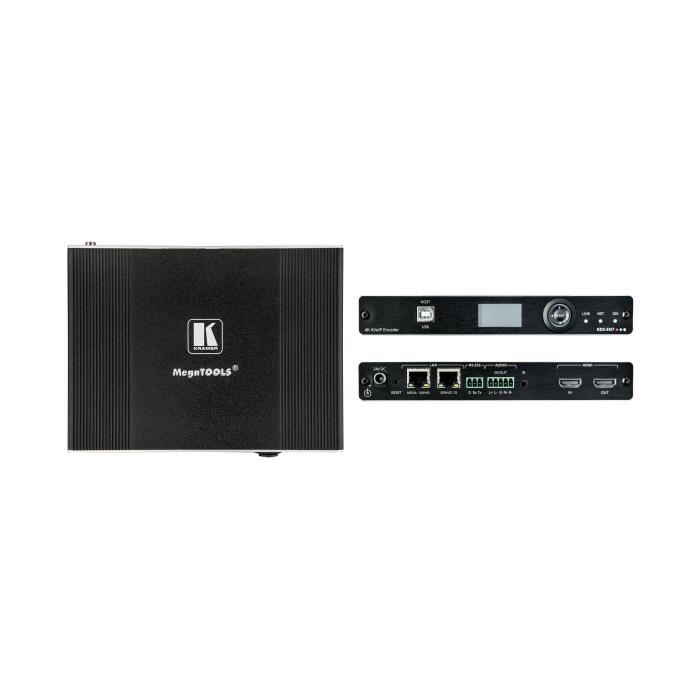

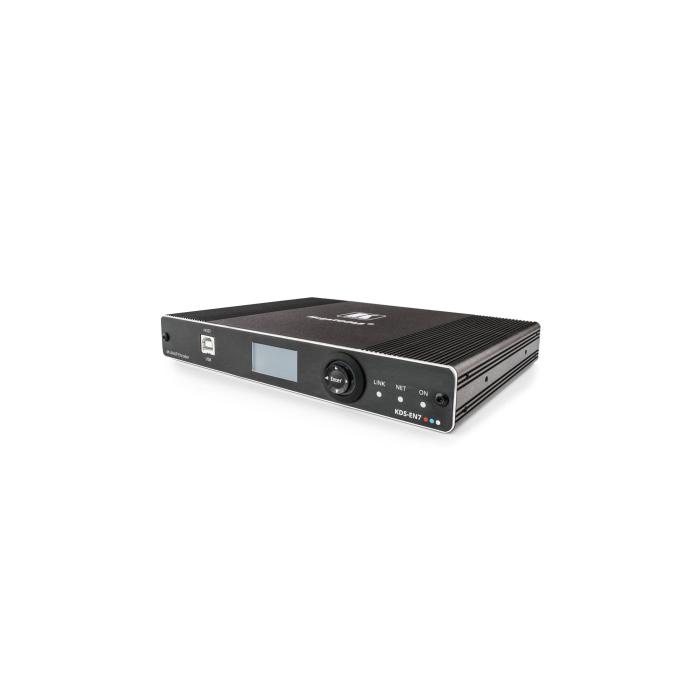

Kramer Electronics KDS-EN7 AV transmitter Black
More info
Brand: KRAMER ELECTRONICS
808.50 €
668.18 €
without VAT
Stock available: 2 units.
Get it
tomorrow
/
August 27
SKU:
113556
PRC:
418334
EAN:
7291063096465
PN:
60-000590
Description
Kramer Electronics KDS-EN7 AV transmitter in black, designed to send 4K quality audiovisual content over Ethernet networks. Supports a maximum resolution of 3840 x 2160 pixels, 12-bit colour depth, and is compatible with HDR10, in addition to offering 3D display. Includes two RJ-45 ports for network connectivity with IEEE 802.1x standards and support for HTTPS and TLS security algorithms, along with an audio input via a 5-pin terminal connector and a USB Type-B port. Its control is carried out via buttons and a rotary selector, and it features LED indicators to monitor device status. Compatible with HDMI cables and JPEG image formats, this unit integrates the capture and transmission of signals directly.
Specifications
Features
- Type: AV transmitter
- Maximum resolution: 3840 x 2160 pixels
- Cable types supported: HDMI
- High Dynamic Range (HDR) supported: Yes
- High Dynamic Range (HDR) technology: High Dynamic Range 10 (HDR10)
- LED indicators: Yes
- Supported graphics resolutions: 3840 x 2160
- Image formats supported: JPEG
- Security algorithms: HTTPS, TLS
- Colour depth: 12 bit
- 3D: Yes
- Control type: Buttons, Rotary
- Networking standards: IEEE 802.1x
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 2
- Number of HDMI outputs: 1
- USB ports quantity: 1
- USB connector type: USB Type-B
- Audio input: 5–pin terminal block connector
Power
- Power source type: DC
- Operating voltage: 24 V
- Power over Ethernet (PoE): Yes
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 189 mm
- Depth: 145 mm
- Height: 27.6 mm
- Weight: 700 g
Packaging data
- Package width: 312 mm
- Package depth: 179 mm
- Package height: 76 mm
- Package weight: 900 g
