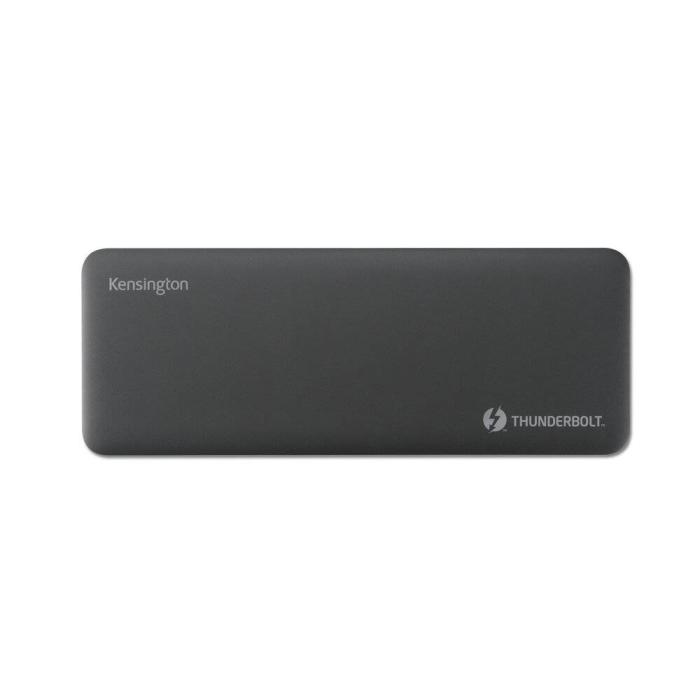

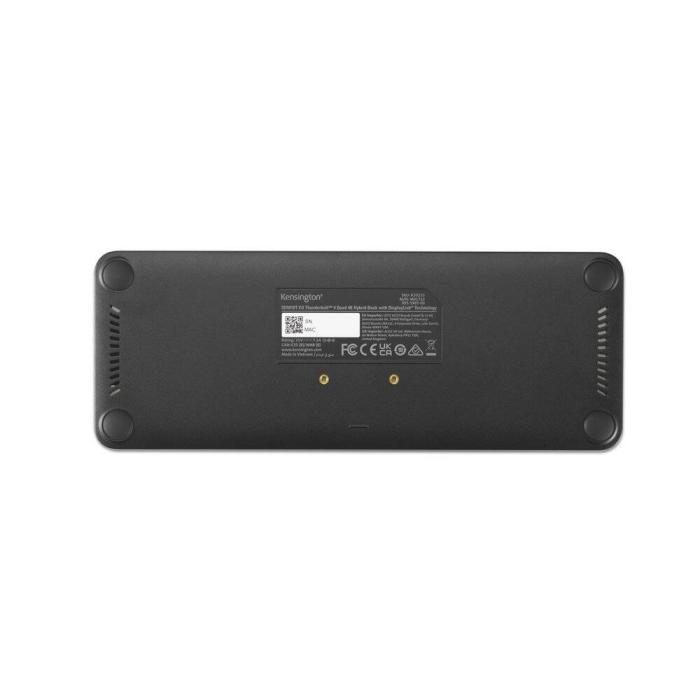

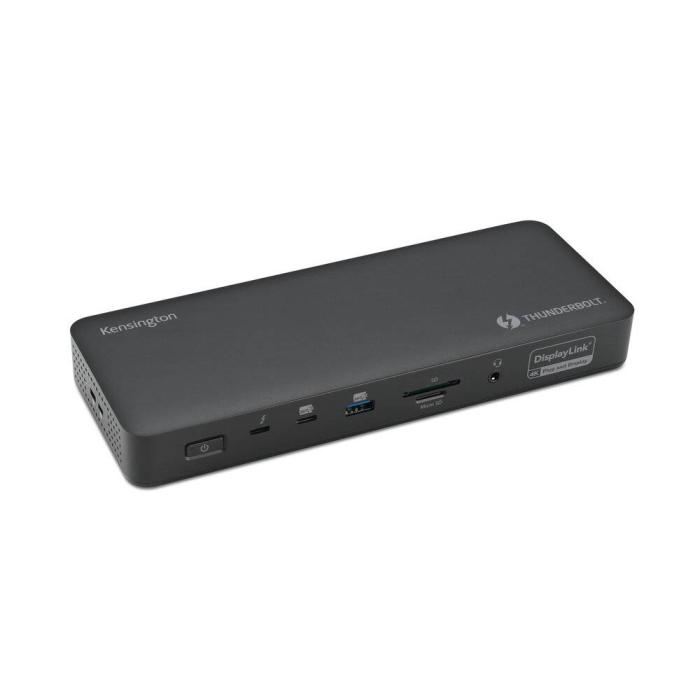

Kensington SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink Technology
More info
Brand: KENSINGTON
Not avaliableStock available: 0 units.
Unavailable
SKU:
110546
PRC:
596436
EAN:
5028252650861
PN:
K35234EU
Description
Work with the Kensington SD5920T EQ Quad 4K hybrid dock, an accessory with Thunderbolt 4 interface and DisplayLink technology that expands your laptop's connectivity via cable. It features two Thunderbolt 4 ports, three DisplayPorts, and two HDMI outputs to link up to four monitors at 4K resolution, plus an RJ-45 Ethernet port with speeds up to 2500 Mbit/s for a stable network. Its USB ports include two USB 3.2 Gen 1 Type-A, one USB 3.2 Gen 2 Type-A, and one USB 3.2 Gen 2 Type-C, along with a 3.5 mm headset and microphone combo. With USB power delivery of up to 96 W and DC input, this dock charges your device while keeping all peripherals connected in one place.
Specifications

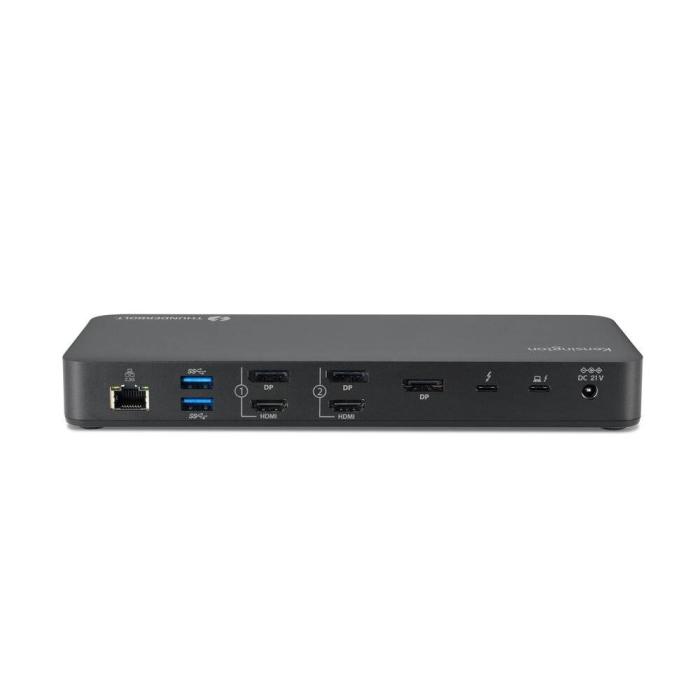

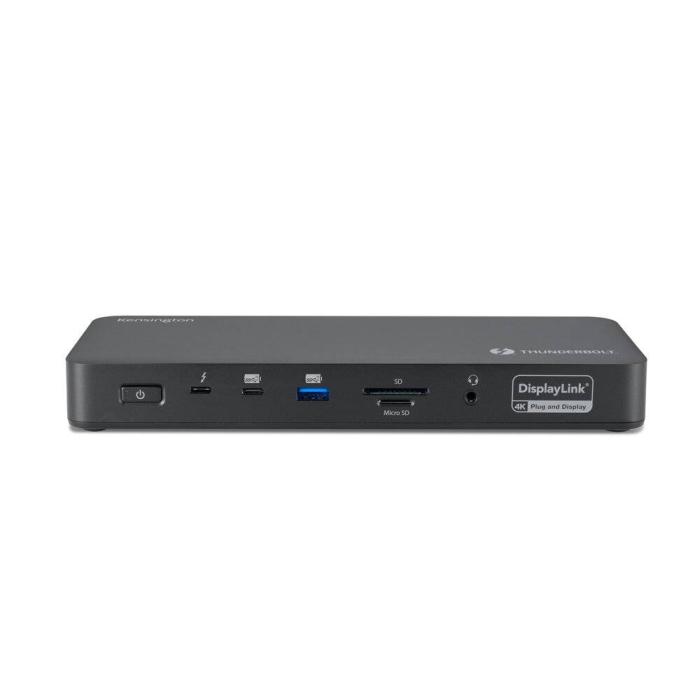

Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 96 W
- HDMI ports quantity: 2
- DisplayPorts quantity: 3
- Thunderbolt 4 ports quantity: 2
- Combo headphone/mic port: Yes
- Headphone outputs: 1
- Headphone connectivity: 3.5 mm
- DC-in jack: Yes
- USB Power Delivery revision: 3.0
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 100, 1000, 2500 Mbit/s
Performance
- Card reader integrated: Yes
- Compatible memory cards: SD, MicroSD (TransFlash)
- Data transfer rate: 40 Gbit/s
- HD type: 8K Ultra HD
- Maximum digital resolution: 7680 x 4320 pixels
- Number of displays supported: 4

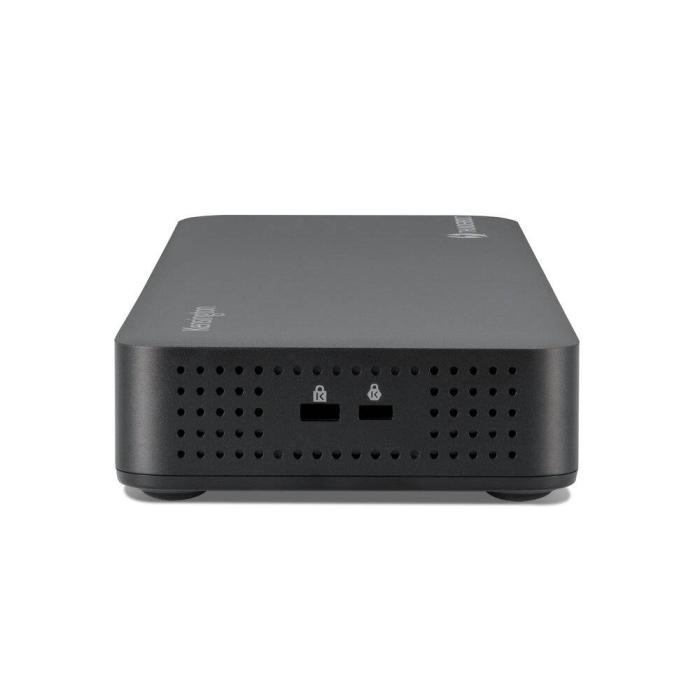

- Cable lock slot: Yes
- Cable lock slot type: Nano, Kensington
- Product colour: Black
- On/off switch: Yes
- LED indicators: Yes
- Plug and Play: Yes
- Housing material: Aluminium, Plastic
- Country of origin: Vietnam
Power
- Power source type: DC
- AC input voltage: 100 - 240 V
- Input current: 2.5 A
- Output voltage: 21 V
- Output current: 7.1 A
Software
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Other operating systems supported: ChromeOS
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -18 - 60 °C
- Operating relative humidity (H-H): 0 - 55%
Weight & dimensions
- Width: 2250 mm
- Depth: 85 mm
- Height: 22 mm
- Weight: 600 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 245 mm
- Package depth: 107 mm
- Package height: 94 mm
- Package weight: 1.5 kg

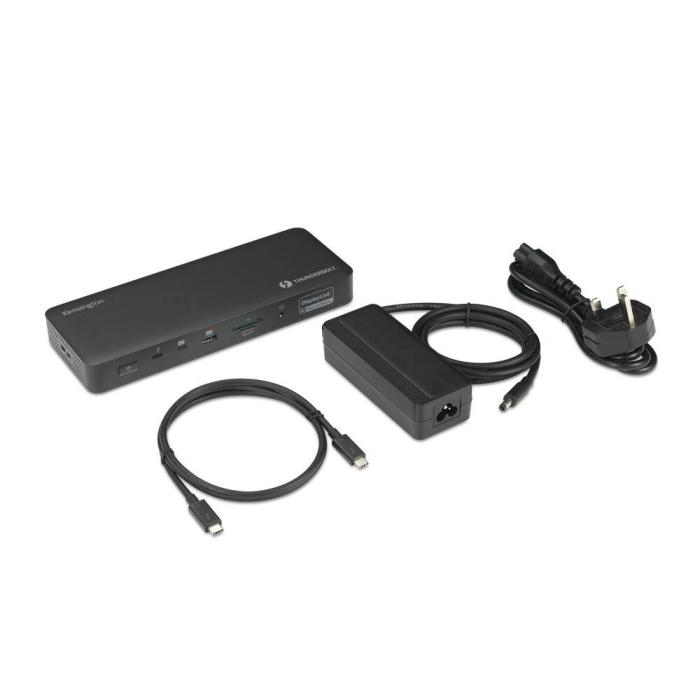

Packaging content
- Cables included: AC, Thunderbolt
- AC adapter included: Yes
- Quick start guide: Yes
Technical details
- Compliance certificates: CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA
Logistics data
- Products per shipping (inner) case: 6 pc(s)
- Master (outer) case width: 360 mm
- Master (outer) case length: 495 mm
- Master (outer) case height: 135 mm
- Master (outer) case gross weight: 9.63 kg
Other features
- Compatible operating systems: Chrome OS 116 or above; Windows 10 or above; macOS 11 or above
- Special features: EQ
- USB ports quantity: 4
