Description

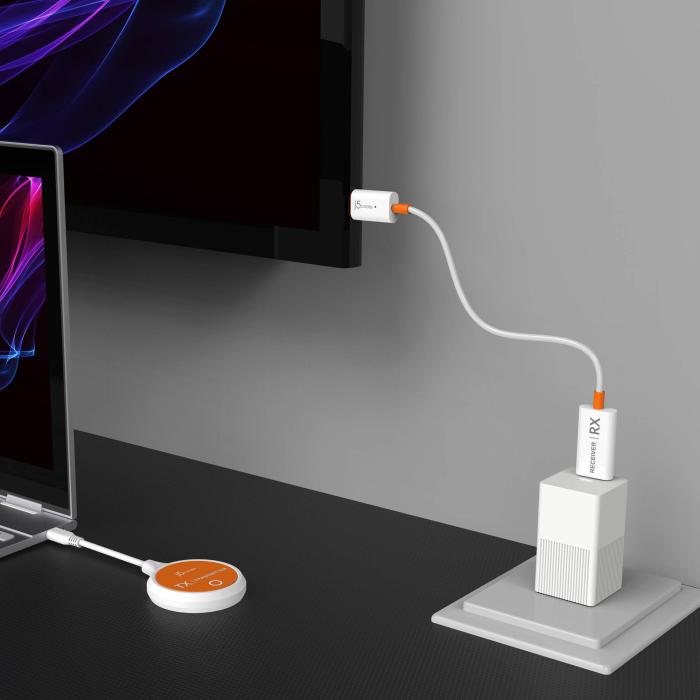

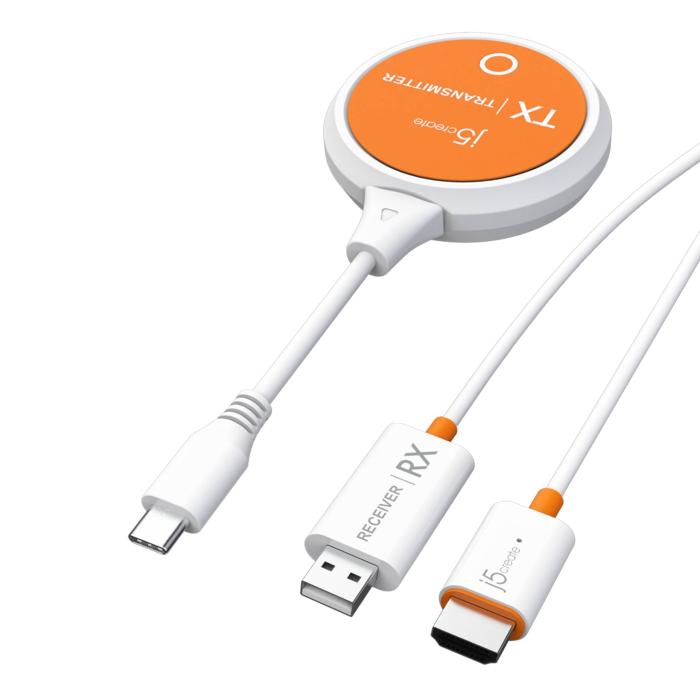

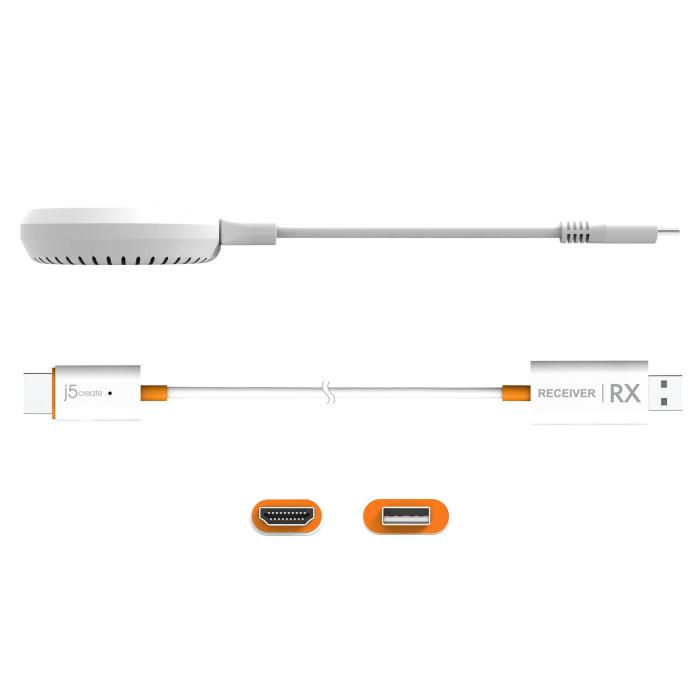

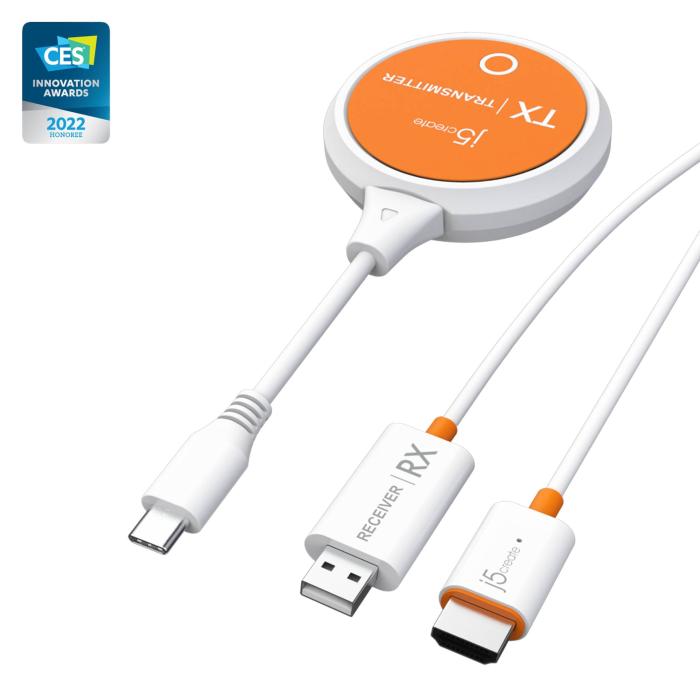

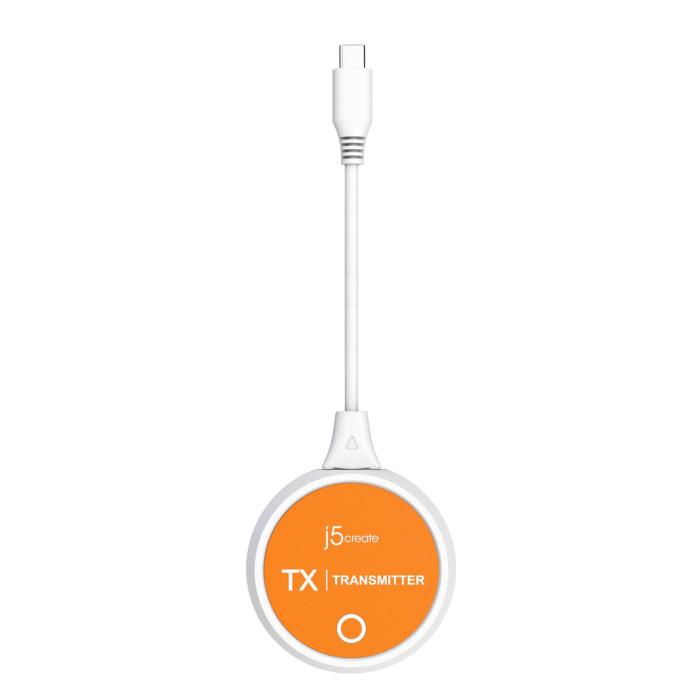

JVAW62 ScreenCast USB-C® Wireless Display HDMI Extender, White and Orange
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1080 pixels
- Cable types supported: HDMI
- Maximum transfer distance: 15 m
- Maximum refresh rate: 60 Hz
- Audio output channels: 2.1 channels
- Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
- Bandwidth: 40 MHz
- Security algorithms: WPA2
- Antenna type: Internal antenna
- HDCP: Yes
- Material: ABS
- Firmware upgradeable: Yes
- Plug and Play: Yes
- Networking standards: IEEE 802.11ac
- HDCP version: 1.4
- Product colour: Orange, White
- Integrated antenna: Yes
- Frequency range: 2.4 - 5 GHz
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
Ports & interfaces
- Connectivity technology: Wireless
- Wi-Fi: Yes
- HDMI version: 1.3
- USB connector type: USB Type-C
- Video out: HDMI
Power
- Power source type: USB
- Operating voltage: 5 V
- Power consumption (typical): 1.7 W
- USB powered: Yes
- Current: 1 A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 50 °C
- Operating relative humidity (H-H): 0 - 85%
- Storage relative humidity (H-H): 0 - 85%
Weight & dimensions
- Width: 65 mm
- Depth: 17 mm
- Height: 65 mm
- Weight: 77 g
- Receiver dimensions (WxDxH): 24 x 57 x 10.5 mm
- Receiver weight: 31.5 g
- Transmitter dimensions (WxDxH): 65 x 65 x 17 mm
- Transmitter weight: 54 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 193 mm
- Package depth: 125 mm
- Package height: 22.5 mm
- Package weight: 182 g
- Package type: Box
Packaging content
- Cables included: USB Type-A
- Quick start guide: Yes
- IR receiver included: Yes
- Packaging content: 1 x JVAW62 ScreenCast USB-C® Wireless Display HDMI™ Extender (1 x Transmitter & 1 x Receiver), 1 x USB™ Type-A extension ca
Technical details
- Warranty period: 2 year(s)
Logistics data
- Minimum order quantity: 18 pc(s)
- Export Control Classification Number (ECCN): EAR99
- Master (outer) case width: 226 mm
- Master (outer) case length: 445 mm
- Master (outer) case height: 190 mm
- Master (outer) case gross weight: 4.12 kg
- Products per master (outer) case: 18 pc(s)
- Master (outer) case GTIN (EAN/UPC): 24712795086144
