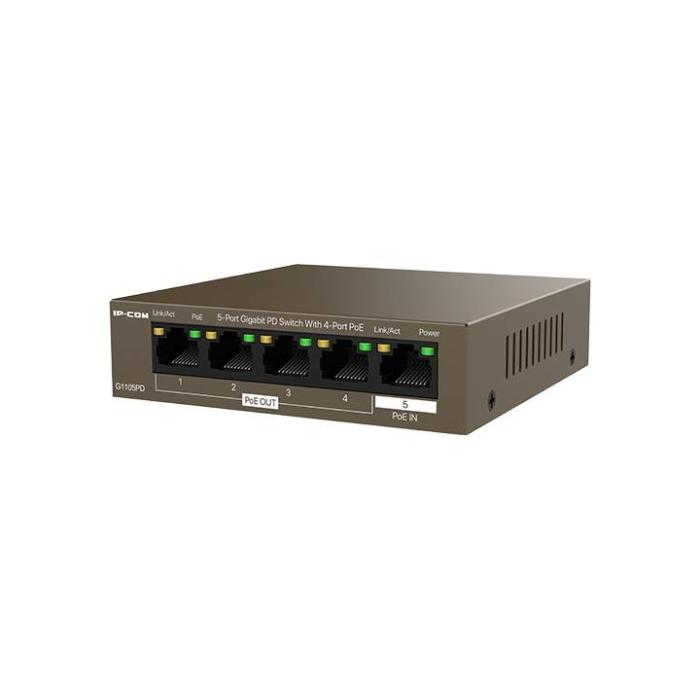

IP-COM Networks G1105PD network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
More info
Brand: IP-COM NETWORKS
28.00 €Stock available: 0 units.
Unavailable
SKU:
90248
PRC:
344165
EAN:
6932392828440
PN:
g1105pd
Description
IP-COM Networks G1105PD unmanaged L2 switch with 5 Gigabit Ethernet (10/100/1000) ports in black, designed to expand your home or office network with integrated PoE technology on every connection. This model offers full-duplex and half-duplex transmission, with auto-negotiation and automatic MDI/MDI-X detection to simplify cabling without the need for configuration. Compatible with IEEE 802.3, 802.3ab, 802.3u and 802.3x standards, it supports jumbo frames of up to 9000 bytes and Cat5 cables, including 10BASE-T, 100BASE-TX and 1000BASE-T types. Its MAC address management with auto-learning and auto-aging ensures stable data flow between connected devices, while its compact design facilitates placement on any desk.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 5
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat5
- Full duplex: Yes
- Half duplex: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-negotiation: Yes
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 10 Gbit/s
- Forwarding rate: 1.488 Mpps
- MAC address table: 2048 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Wall mountable: No
Performance
- Fanless: Yes
Power
- DC input voltage: 50 - 57 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port: 15.4 W
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 100 mm
- Depth: 100 mm
- Height: 26 mm
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE, RoHS
- Certification: CQC, FCC
