Description

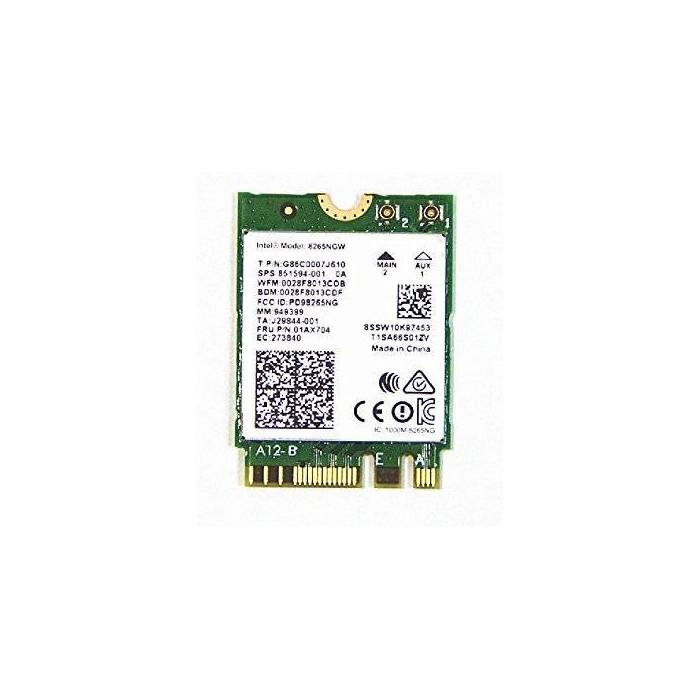

Intel 8265.NGWMG Internal network card in green colour with PCI Express host interface and WLAN wireless connectivity, designed for integration inside the computer. Offers dual-band Wi-Fi 5 (802.11ac) on 2.4 GHz and 5 GHz, with maximum data transfer speed of 867 Mbit/s and MU-MIMO support. Includes Bluetooth 4.2 and 2x2 antenna configuration for wireless connection. Certified to UL, C-UL and CB for use in computing environments.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: PCI Express
- Interface: WLAN
Network
- Maximum data transfer rate: 867 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, I
- Wi-Fi: Yes
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: Wi-Fi 5 (802.11ac)
- WLAN data transfer rates supported: 300, 867 Mbit/s
- Security algorithms: 802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, WPA, WPA2
- MU-MIMO: Yes
- Bandwidth (first): 2.4 GHz
- Bandwidth (second): 5 GHz
- Bluetooth: Yes
- Bluetooth version: 4.2
Design
- Component for: Laptop
- Product colour: Green
- Internal: Yes
- Antenna type: 2x2
- Form factor: M.2 2230, M.2 1216
- Certification: UL, C-UL, CB (IEC 60950-1)
System requirements
- Compatible operating systems: Windows 8.1, 64-bit*|Windows 7, 64-bit*|Windows 7, 32-bit*|Windows 10, 64-bit*|Linux*
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Ho
- Linux operating systems supported: Yes
- Other operating systems supported: Android
Operational conditions
- Operating temperature (T-T): 0 - 80 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Weight: 2.6 g
Packaging data
- Package width: 22 mm
- Package depth: 30 mm
- Package height: 2.4 mm
Logistics data
- Harmonized System (HS) code: 85176990
Other features
- Minimum operating temperature: 0 °C
- Maximum operating temperature: 80 °C
- Supported Under vPro: Yes
- Interface type: Wi-Fi(PCIe), BT(USB)
- Conflict-Free: Yes
- Launch date: Q1'16
- Product brief URL: https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/dual-band-wireless-ac-8265-brief.pdf
- Product type: Wireless
- Status: Launched
- Processor family: Intel Wireless-AC Products
- Ethernet adapter ARK ID: 94150
- Export Control Classification Number (ECCN): 5A992CN3
- Commodity Classification Automated Tracking System (CCATS): G151050
- Compliance: FIPS, FISMA
- Product series: Intel® Wireless Products
