Description

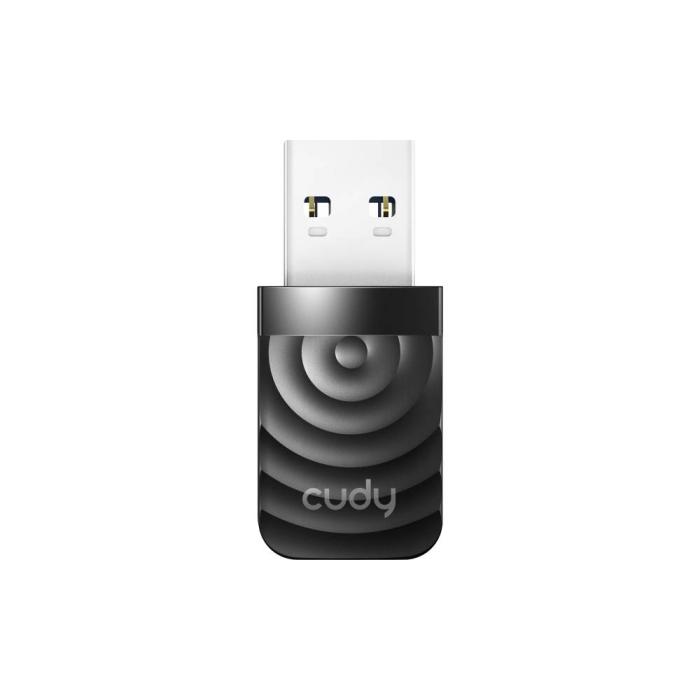

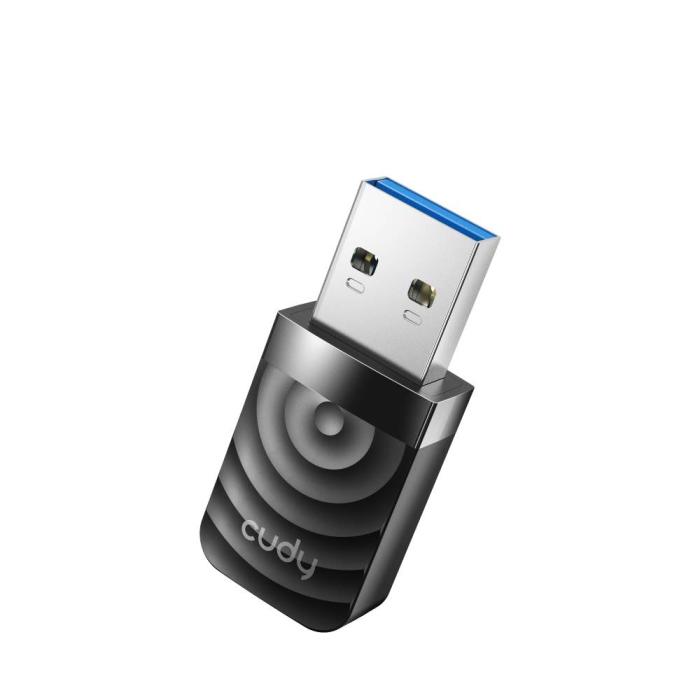

Connect the Cudy WU1300S network card adapter via USB to give your device dual-band wireless connectivity, with transfer speeds of up to 867 Mbit/s on the 5 GHz band and 400 Mbit/s on the 2.4 GHz band, under the Wi-Fi 5 (802.11ac) standard. This model in black, with a right-angle USB connector form factor, integrates the RTL8812BU chipset and an antenna for improved reception, supporting CCK, DBPSK, DQPSK and OFDM modulations, as well as IEEE 802.11a/b/g/n/ac network standards and WEP, WPA, WPA2 and WPS security protocols.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: USB
- Interface: WLAN
- USB connector form factor: Straight
Network
- Maximum data transfer rate: 867 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Frequency range: 2.4 - 5 GHz
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- WLAN data transfer rates supported: 400, 867 Mbit/s
- Modulation: CCK, DBPSK, DQPSK, OFDM
- Security algorithms: WEP, WPA, WPA-PSK, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP, WPS
Design
- Component for: PC/Laptop
- Product colour: Black
- Internal: No
- Antenna: Yes
- Antenna design: Internal
- Antenna gain level (max): 2 dBi
- Chipset: RTL8812BU
- Operating modes: Infrastructure mode
Power
- USB powered: Yes
System requirements
- Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
- Mac operating systems supported: MacOS
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 37.5 mm
- Depth: 17 mm
- Height: 8.5 mm
Packaging data
- Package type: Box
- Quantity per pack: 1 pc(s)
Packaging content
- Resource CD: Yes
- Manual: Yes
