Description

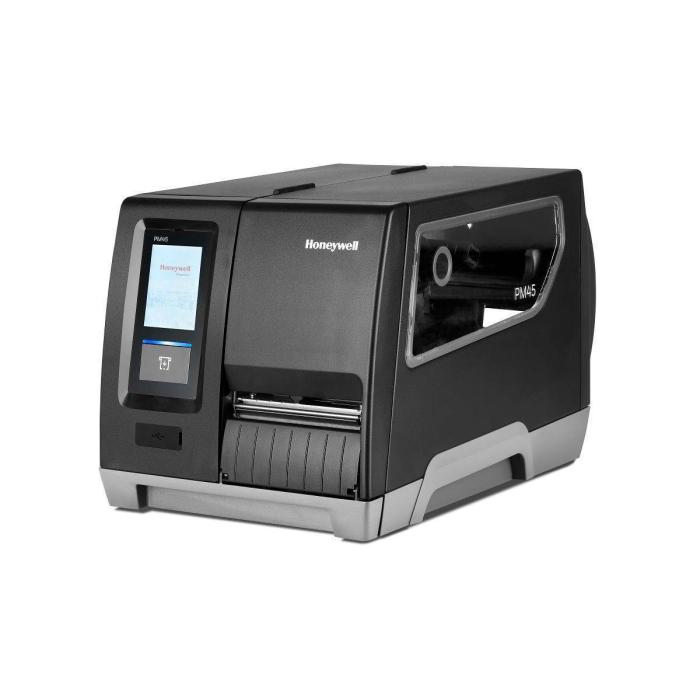

The Honeywell PM45A prints labels using thermal transfer with a maximum resolution of 203 x 203 DPI, reaching speeds of up to 350 mm/s. Its black printing is suited to barcodes over a maximum width of 10.8 cm, and it supports rolls with a diameter of up to 21.3 cm and a core of 7.62 cm. Connectivity is wired and includes two USB 2.0 ports, one RS-232 port, and Ethernet, ideal for integration into fixed working environments. Its media handling allows for a media thickness of 25 mm and a label width of 11.4 cm, with fixed margin adjustments for stable positioning.
Specifications
Printing
- Print technology: Thermal transfer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Number of printable dots: 8 dot
- Print speed: 350 mm/sec
- Printing colours: Black
- Maximum printing width: 10.8 cm
- Margin depth settings: Fixed
- Printing characters: Barcode
Paper handling
- Maximum label width: 11.4 cm
- Maximum roll diameter: 21.3 cm
- Media thickness: 25 mm
- Core diameter: 7.62 cm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- USB port: Yes
- USB 2.0 ports quantity: 2
- RS-232 ports: 1
Performance
- Page description languages: DP, DPL, IPL, XML, ZPL II
- Internal memory: 256 MB
- Flash memory: 512 MB
- Built-in barcodes: 1D, 2D, EAN128
- Built-in RFID module: Yes
- Image formats supported: BMP, GIF, PCX, PNG
- Security algorithms: LEAP, PEAP, TLS, TTLS, WEP, WPA, WPA2
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Control type: Touch
Power
- Power consumption (standby): 9.6 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
System requirements
- Windows operating systems supported: Yes
- Mobile operating systems supported: Android, iOS
- Linux operating systems supported: Yes
Operational conditions
- Operating relative humidity (H-H): 20 - 85%
- Storage relative humidity (H-H): 5 - 90%
- Operating temperature (T-T): 5 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
Weight & dimensions
- Width: 284 mm
- Depth: 483 mm
- Height: 295 mm
- Weight: 13.2 kg
Technical details
- Sustainability certificates: ENERGY STAR
- Compliance certificates: RoHS, CE
