Description

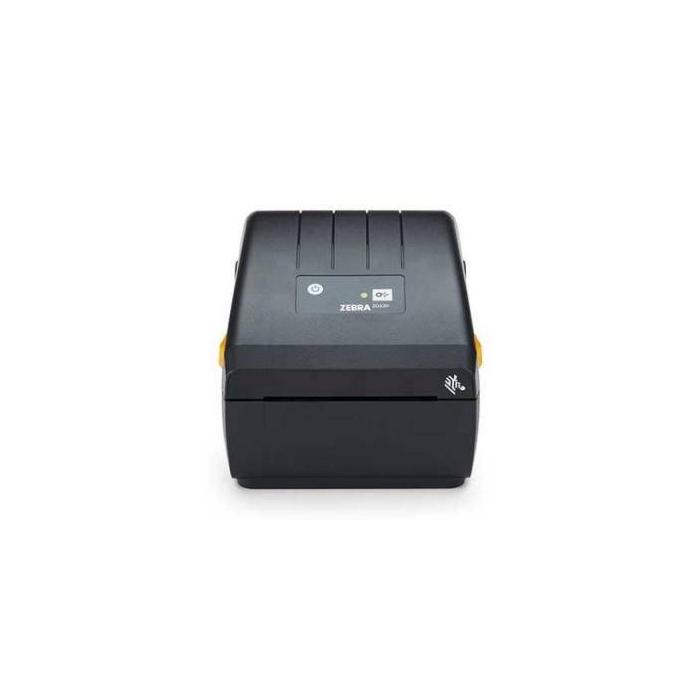

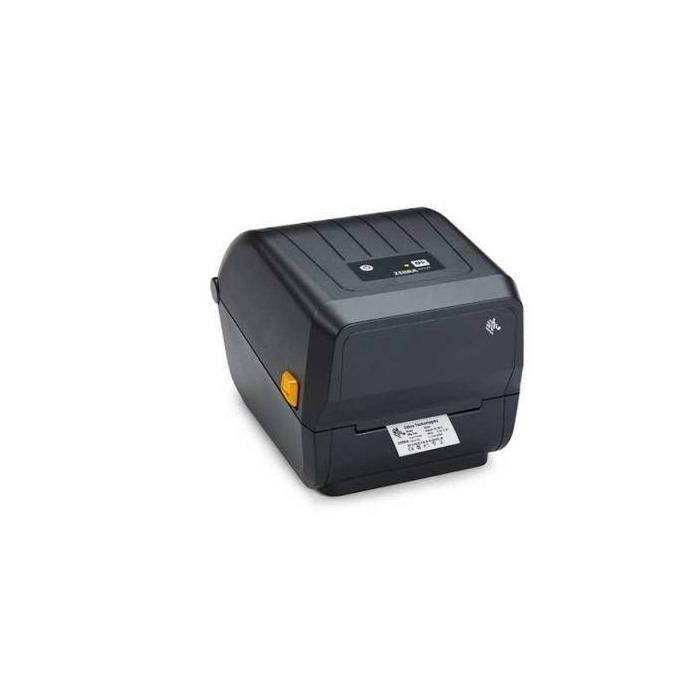

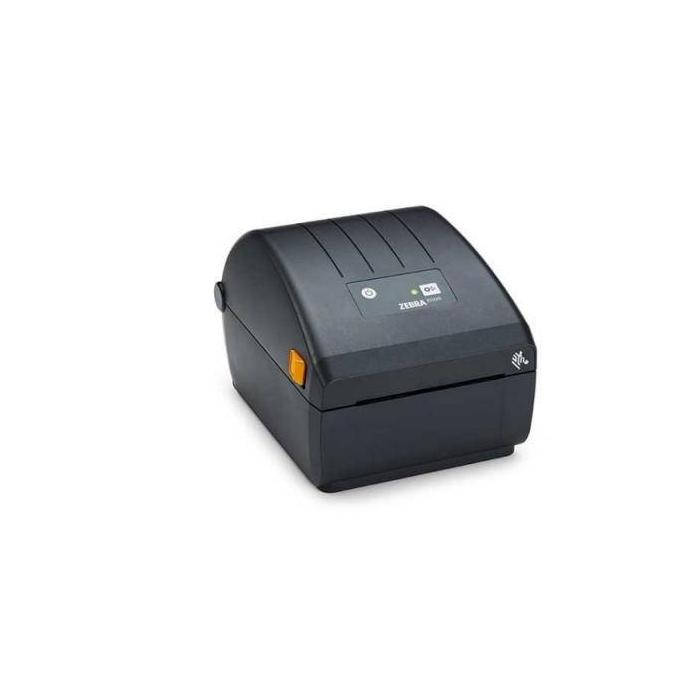

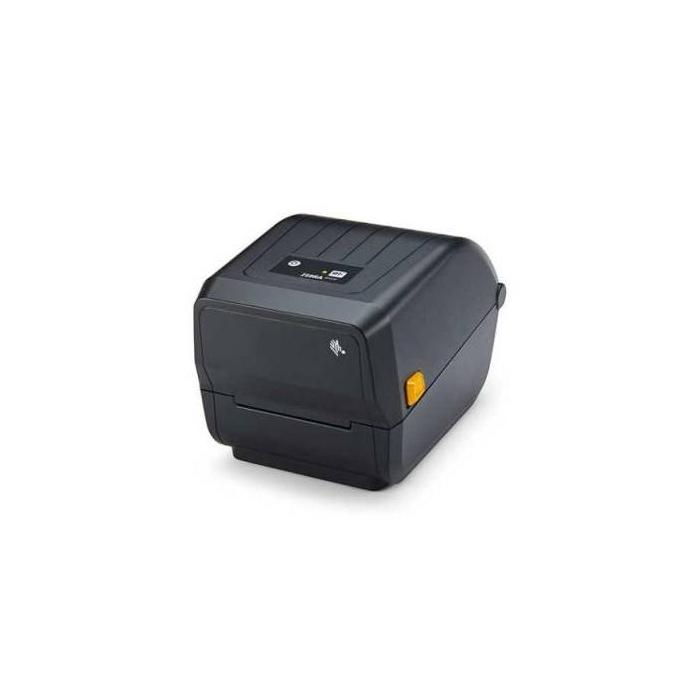

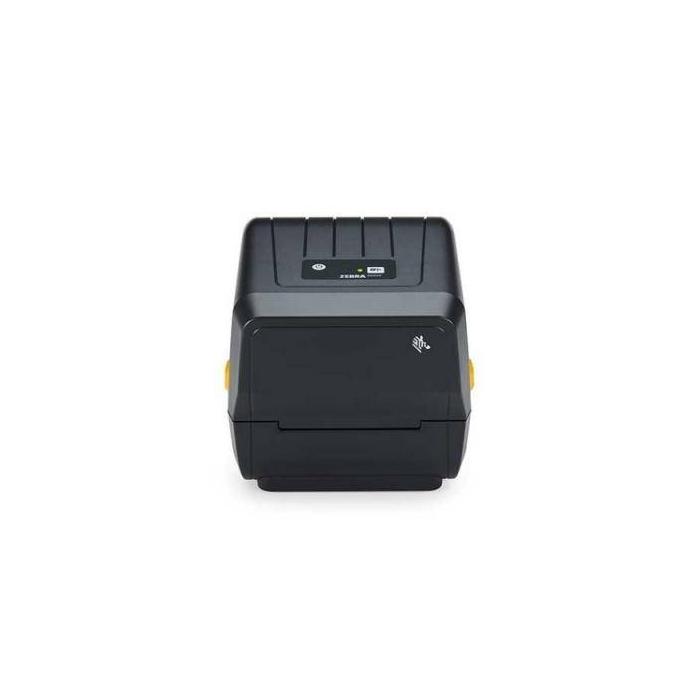

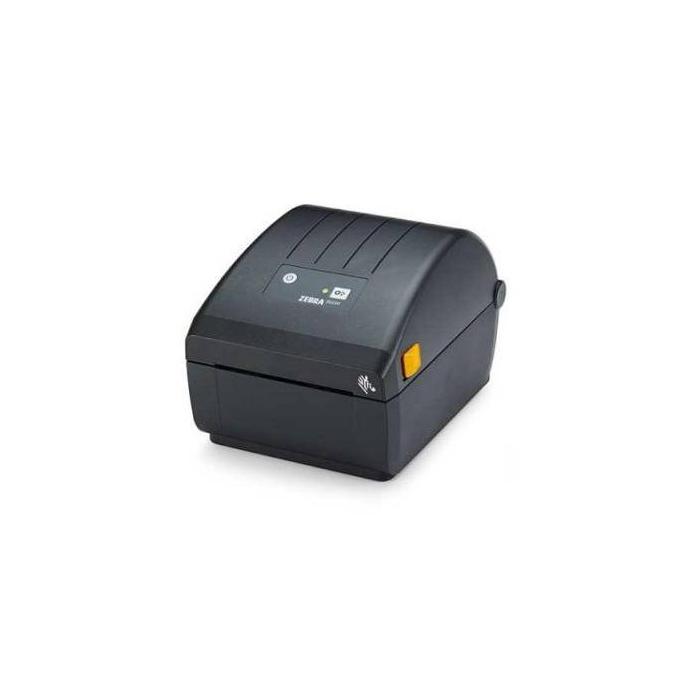

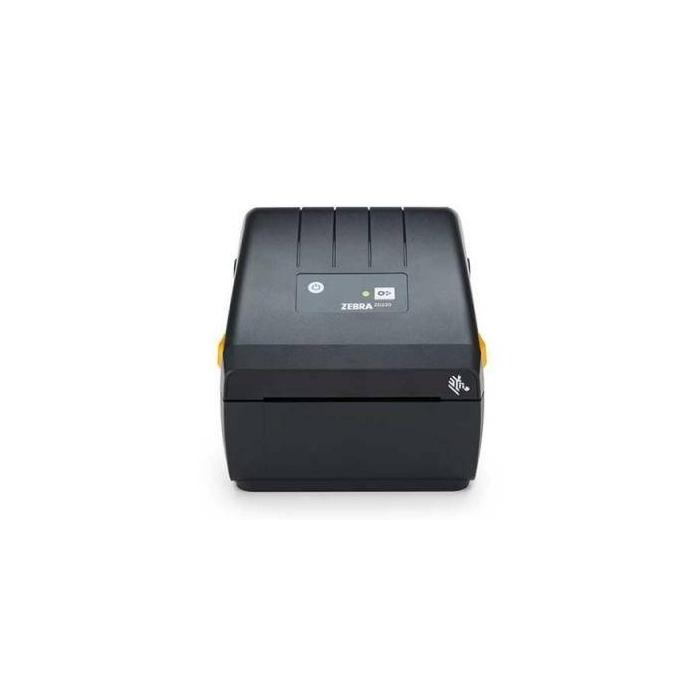

The Zebra ZD230 is a label printer using thermal transfer technology that achieves a maximum resolution of 203 x 203 DPI and a printing speed of 152 mm/s. With a print width of up to 10.4 cm, it supports labels up to 11.2 cm wide and rolls with a maximum diameter of 12.7 cm, handling a maximum label length of 0.991 m. Its connectivity is wired and includes a USB 2.0 port and Ethernet for integration into fixed networks. This model is designed to work with ribbons up to 300 m in length and 10.9 cm wide, with media thickness between 0.08 and 0.1905 mm, offering consistent performance in work environments requiring high-durability printing.
Specifications
Printing
- Print technology: Thermal transfer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 152 mm/sec
- Maximum printing width: 10.4 cm
Paper handling
- Ribbon width: 10.9 cm
- Ribbon length: 300 m
- Maximum label width: 11.2 cm
- Maximum label length: 0.991 m
- Maximum roll diameter: 12.7 cm
- Media thickness: 0.08 - 0.1905 mm
- Supported paper width: 25.4 - 112 mm
- Core diameter: 1.27 cm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- Bluetooth: No
- USB port: Yes
- USB 2.0 ports quantity: 1
Performance
- Page description languages: EZPL, XML, ZPL II
- Internal memory: 128 MB
- Flash memory: 256 MB
- Built-in barcodes: 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/
- Number of fonts: 23
- Certification: IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 30
Design
- Product colour: Black
- Built-in display: No
- Display: No
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating temperature (T-T): 4.4 - 41 °C
- Storage temperature (T-T): -40 - 60 °C
Weight & dimensions
- Width: 197 mm
- Depth: 267 mm
- Height: 191 mm
- Weight: 1.1 kg
Packaging data
- Quantity per pack: 1 pc(s)
Packaging content
- Cables included: AC
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
