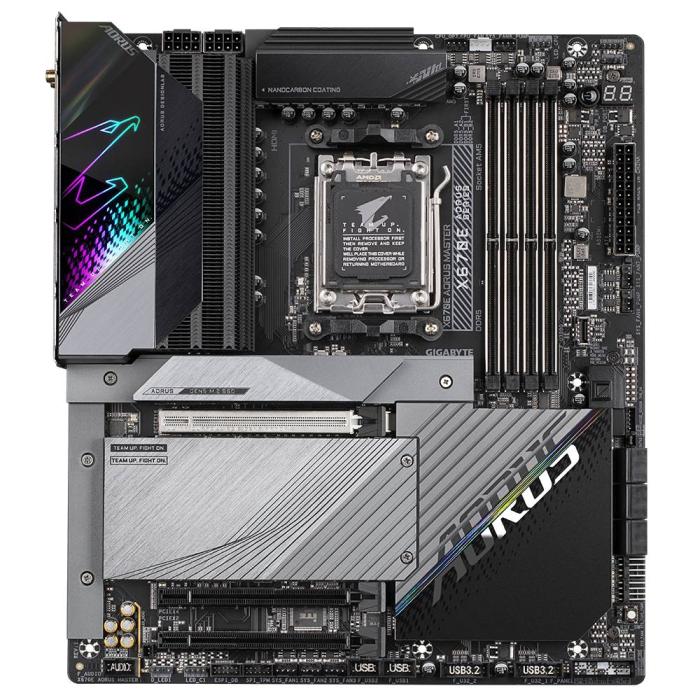

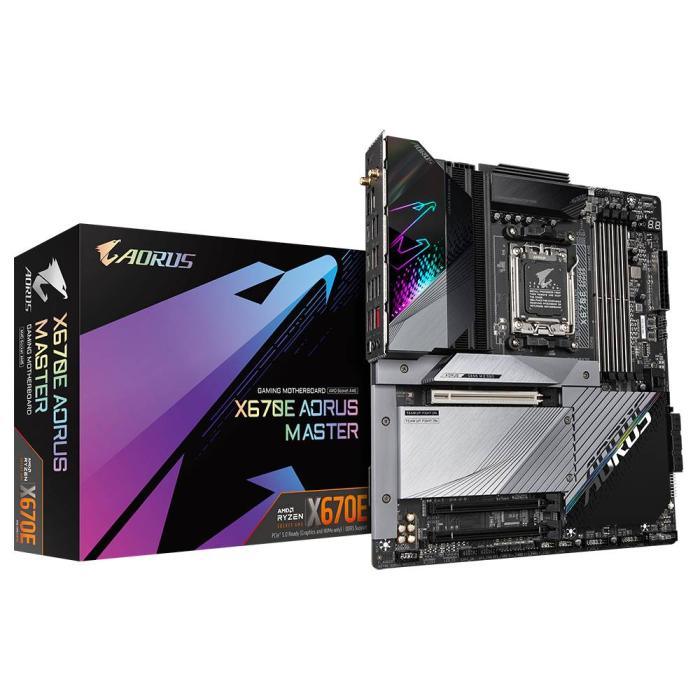

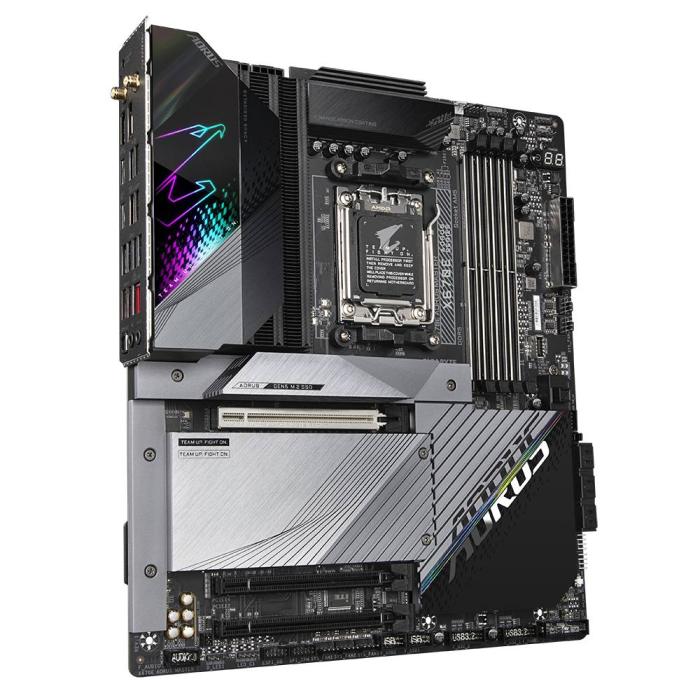

Name: GIGABYTE X670E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2
Brand: GIGABYTE
Availability: OutOfStock

GIGABYTE X670E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2

Not avaliable

GIGABYTE X670E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2. More info

Amount

Brand: GIGABYTE

SKU: 112886 PRC: 396251 EAN: 4719331844363 PN: X670E AORUS MASTER (REV. 1.0)

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen™ 7
Maximum number of SMP processors: 1
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 192 GB

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MHz
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 192 GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA II
Number of HDDs supported: 4
Number of storage drives supported: 10
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: Not supported
HDCP: Yes
DirectX version: 12.0

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 6
Total number of SATA connectors: 6
Audio connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
Chassis intrusion connector: Yes
RGB LED pin header: Yes

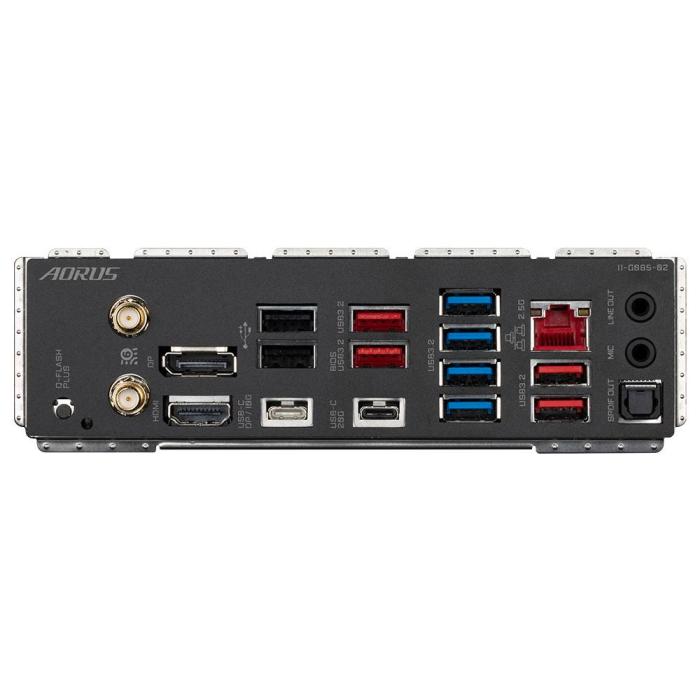

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.0
S/PDIF out port: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX210
Bluetooth: Yes
Bluetooth version: 5.3

Features

Motherboard chipset: AMD X670
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 Home x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 4.x) slots: 1
PCI Express x4 (Gen 2.x) slots: 1
Number of M.2 (M) slots: 4

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System management BIOS (SMBIOS) version: 2.7

Logistics data

Country of origin: Taiwan
Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 400 mm
Package depth: 335 mm
Package height: 430 mm
Package weight: 3.33 kg

Weight & dimensions

Width: 305 mm
Depth: 269 mm
Height: 35 mm

Packaging content

Cables included: SATA
Batteries included: Yes
Drivers included: Yes

Technical details

Warranty period: 3 year(s)
