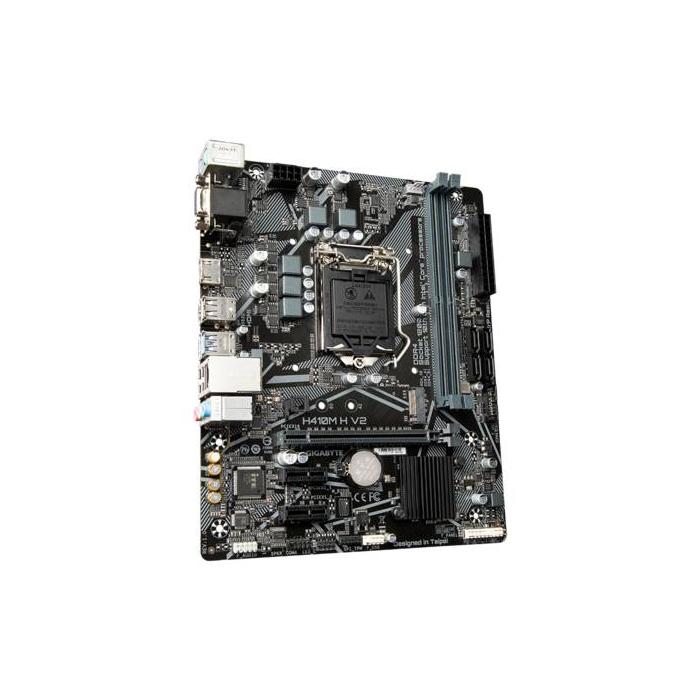

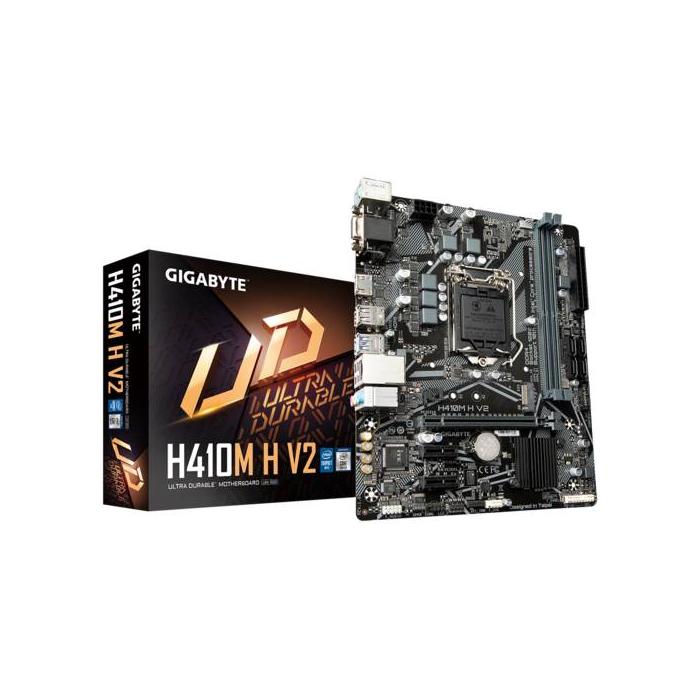

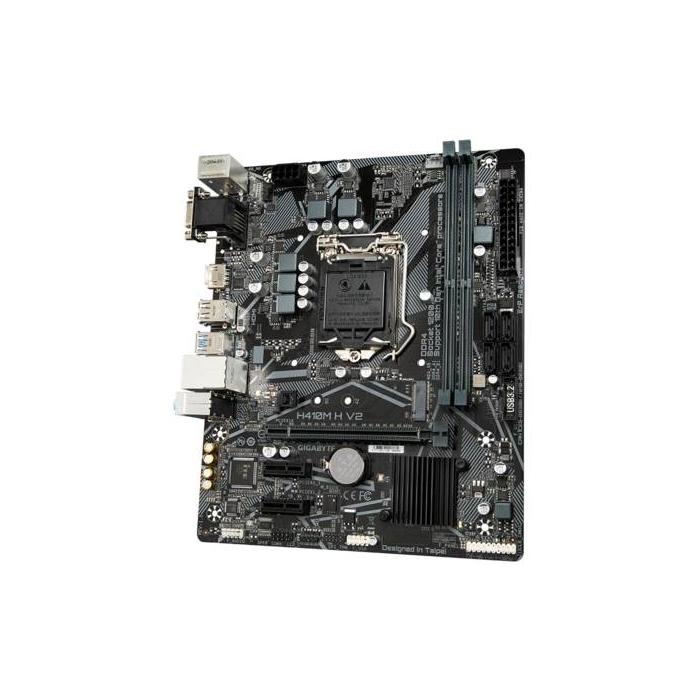

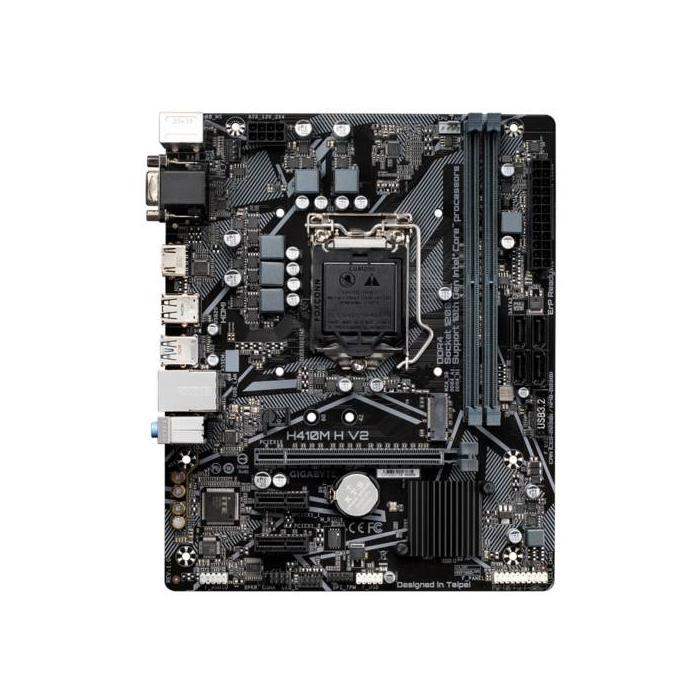

GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

58.00 €
47.93 € without VAT

More info

Brand: GIGABYTE
SKU: 88400 PRC: 326247 EAN: 4719331815387 PN: H410M H V2

Description

GIGABYTE H410M H V2 Motherboard - Supports Intel Core 10th CPUs, up to 2933MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1200 (Socket H5), Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, LGA 1200 (Socket H5), 64 GB, DDR4-SDRAM

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1200 (Socket H5)
  • Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
  • Supported processor sockets: LGA 1200 (Socket H5)
  • Maximum internal memory supported by processor: 64 GB

Memory

  • Supported memory types: DDR4-SDRAM
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 2133, 2400, 2666, 2933 MHz
  • Supported memory clock speed (max): 2933 MHz
  • Maximum internal memory: 64 GB
  • Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 5
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10

Graphics

  • DirectX version: 12.0

Internal I/O

  • USB 2.0 connectors: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • Number of SATA III connectors: 4
  • Total number of SATA connectors: 4
  • Audio connector: Yes
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • Power fan connector: Yes
  • CPU fan connector: Yes
  • EPS power connector (8-pin): Yes
  • 12V power connector: Yes

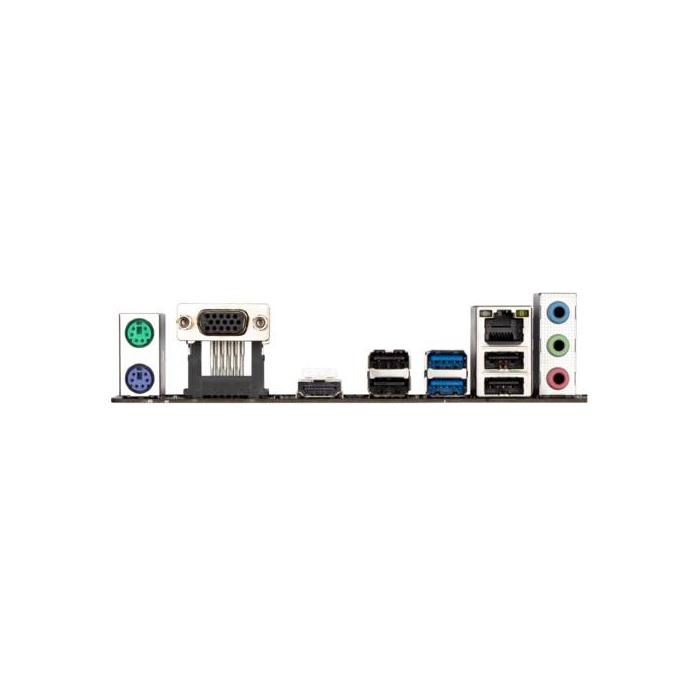

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • VGA (D-Sub) ports quantity: 1
  • HDMI ports quantity: 1

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Wi-Fi: No

Features

  • Motherboard chipset: Intel H410
  • Audio output channels: 7.1 channels
  • Product colour: Brown
  • PC health monitoring: CPU, Fan, Temperature, Voltage
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • Power source type: ATX
  • Windows operating systems supported: Windows 10, Windows 11 x64

Expansion slots

  • PCI Express x1 slots: 2
  • PCI Express x16 (Gen 3.x) slots: 1
  • Number of M.2 (M) slots: 1

BIOS

  • BIOS type: UEFI
  • BIOS memory size: 256 Mbit
  • ACPI version: 5.0
  • Clear CMOS button: Yes

Logistics data

  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)
  • Harmonized System (HS) code: 84733020

Battery

  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032

Packaging data

  • Package width: 265 mm
  • Package depth: 235 mm
  • Package height: 52 mm
  • Package weight: 728 g

Weight & dimensions

  • Width: 226 mm
  • Depth: 185 mm
  • Height: 35 mm

Packaging content

  • Batteries included: Yes
  • Bundled software: Norton Internet Security (OEM version) cFosSpeed

Technical details

  • Warranty period: 3 year(s)
