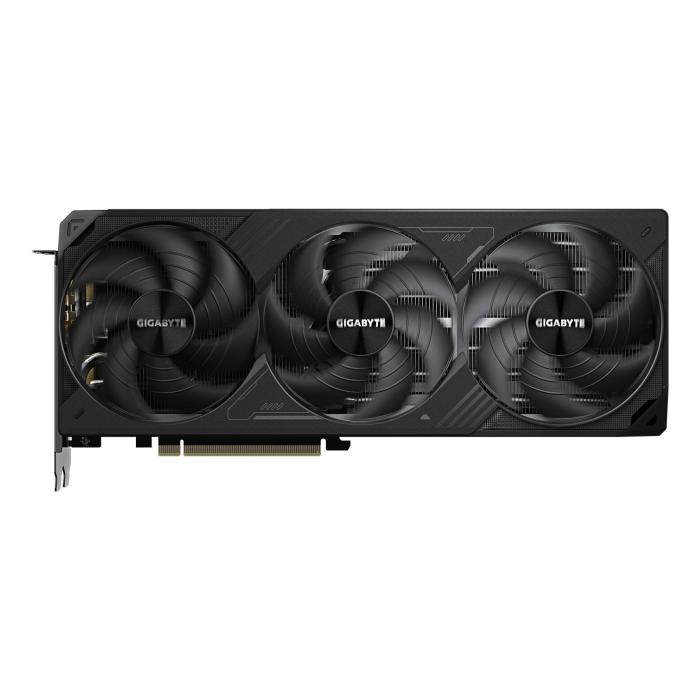

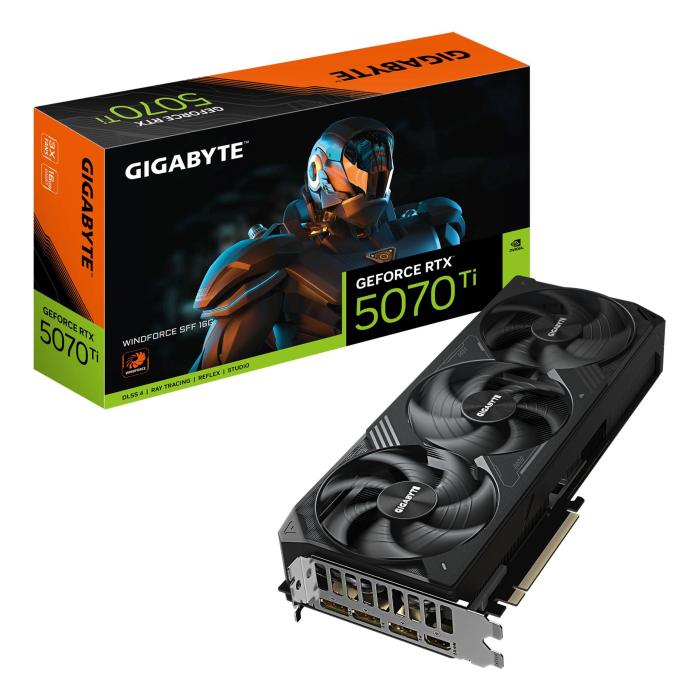

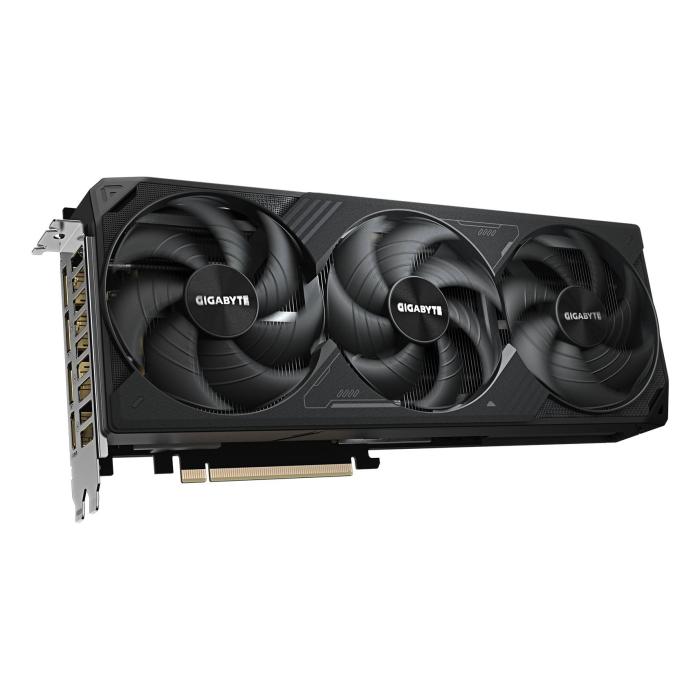

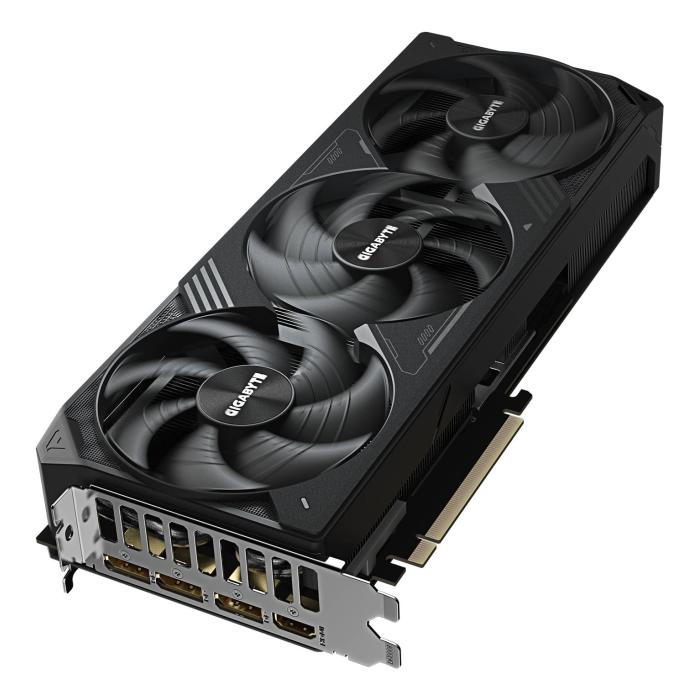

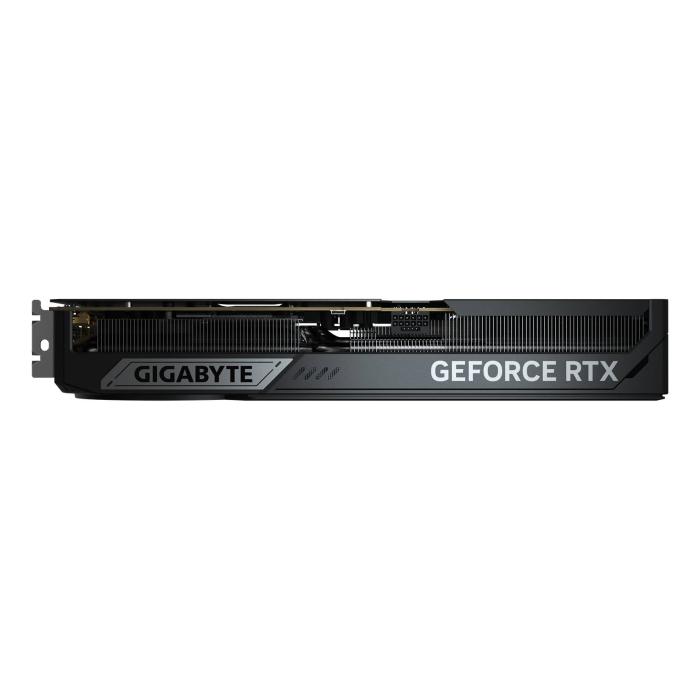

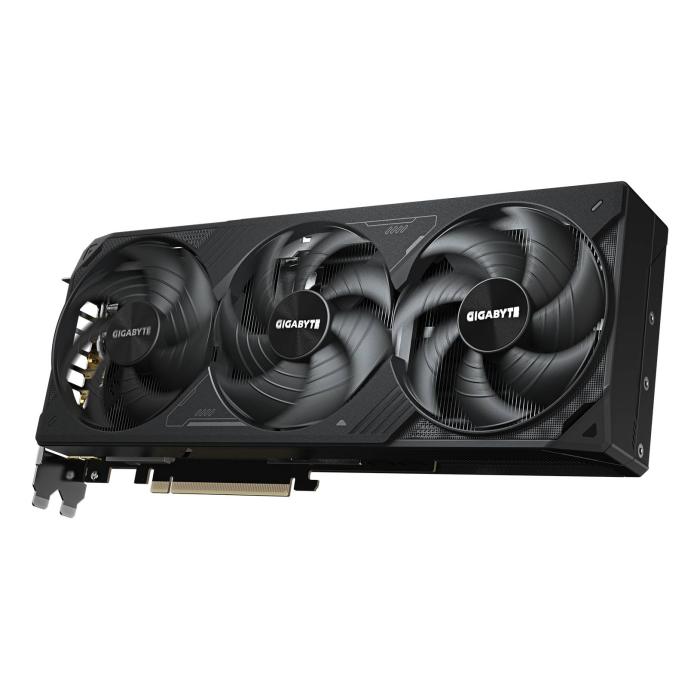

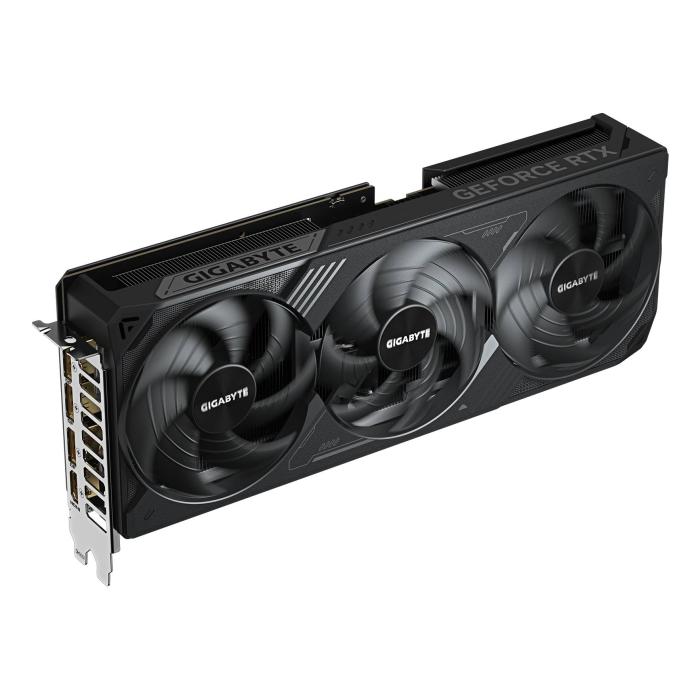

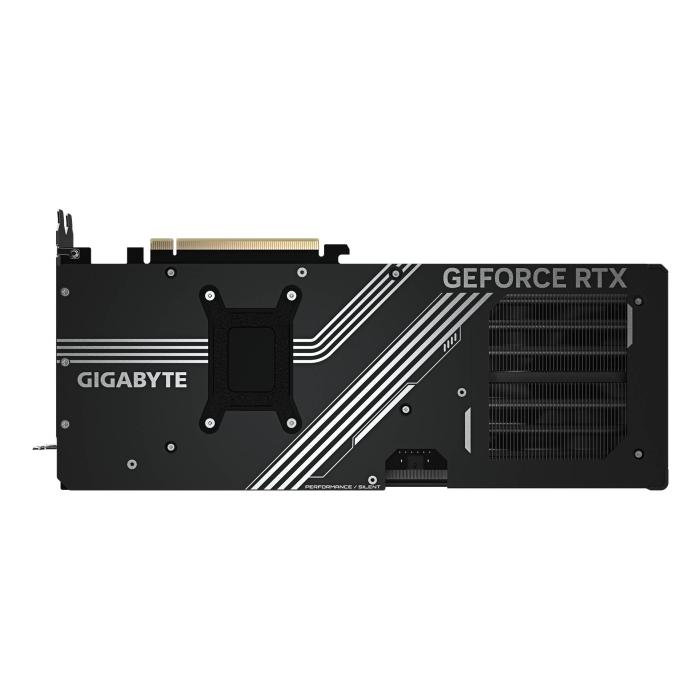

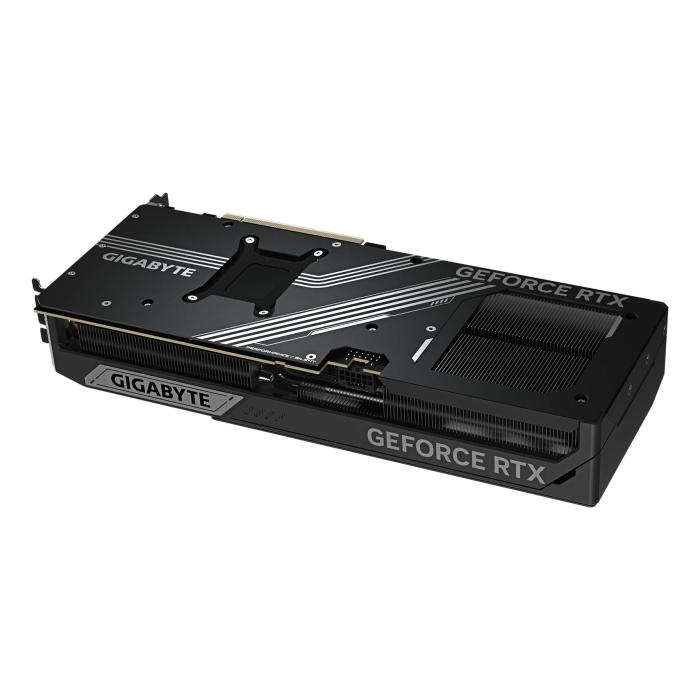

GIGABYTE GeForce RTX 5070 Ti WINDFORCE SFF 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2452 MHz Core Clock, 3 x DP 2.1b, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TWF3-16GD
More info
Brand: GIGABYTE
1,048.00 €Stock available: 0 units.
Unavailable
SKU:
112912
PRC:
596793
EAN:
4719331356002
PN:
GV-N507TWF3-16GD
Description

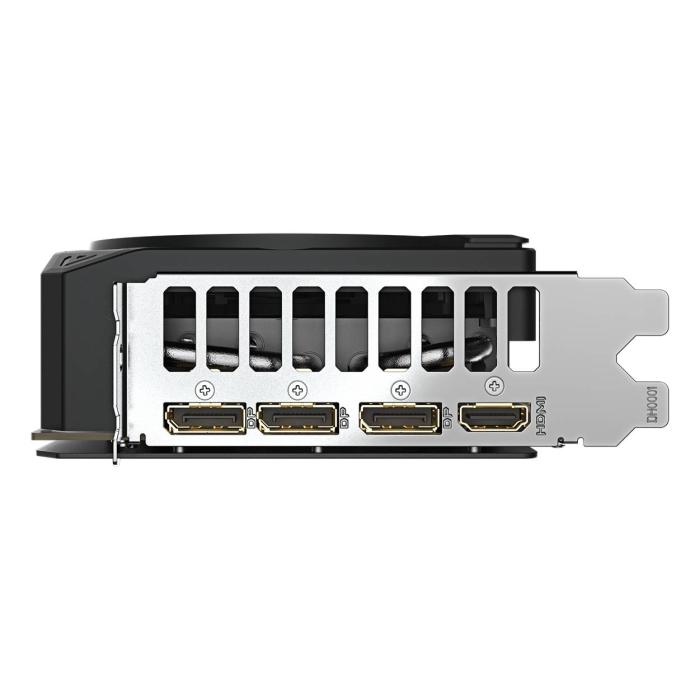

The GIGABYTE GeForce RTX 5070 Ti WINDFORCE SFF 16G graphics card, with 16 GB of GDDR7 memory and a 256-bit bus, is designed to deliver solid graphics performance in compact form-factor systems thanks to its WINDFORCE SFF-profile cooler. It features 8960 CUDA cores and a core clock of 2452 MHz, along with NVIDIA DLSS 4 technology to optimise frame generation in compatible games. The card has three DisplayPort 2.1b outputs and one HDMI 2.1b port, allowing connection of up to four displays with a maximum resolution of 7680 x 4320 pixels. Its PCI Express 5.0 x16 interface ensures fast data transfer, while memory runs at 28 Gbit/s, suitable for demanding workloads.
Specifications
Processor
- CUDA: Yes
- CUDA cores: 8960
- Graphics processor family: NVIDIA
- Graphics processor: GeForce RTX 5070 Ti
- Processor frequency: 2452 MHz
- Maximum resolution: 7680 x 4320 pixels
- Parallel processing technology support: Not supported
- Maximum displays per videocard: 4
Memory
- Data transfer rate: 28 Gbit/s
- Discrete graphics card memory: 16 GB
- Graphics card memory type: GDDR7
- Memory bus: 256 bit
- Memory clock speed: 28000 MHz
Ports & interfaces
- Interface type: PCI Express x16 5.0
- HDMI ports quantity: 1
- HDMI version: 2.1b
- DisplayPorts quantity: 3
- DisplayPort version: 2.1b
Performance
- TV tuner integrated: No
- DirectX version: 12.0
- OpenGL version: 4.6
- Dual Link DVI: No
- NVIDIA G-SYNC: Yes
- Warranty period: 3 year(s)
Design
- Cooling type: Active
- Cooling technology: GIGABYTE WINDFORCE 3X
- Number of fans: 3 fan(s)
- Form factor: Full-Height/Full-Length (FH/FL)
- Number of slots: 2
- SFF ready: Yes
- Product colour: Black
Power
- Minimum system power supply: 750 W
- Supplementary power connectors: 1x 16-pin
- Thermal Design Power (TDP): 300 W
Weight & dimensions
- Weight: 1.21 kg
- Length: 304 mm
- Depth: 50 mm
- Height: 126 mm
Packaging data
- Package width: 230 mm
- Package depth: 398 mm
- Package height: 85 mm
- Package weight: 1.97 kg
- Package type: Box
Packaging content
- Cables included: Power
Logistics data
- Products per shipping (inner) case: 1 pc(s)
