Description

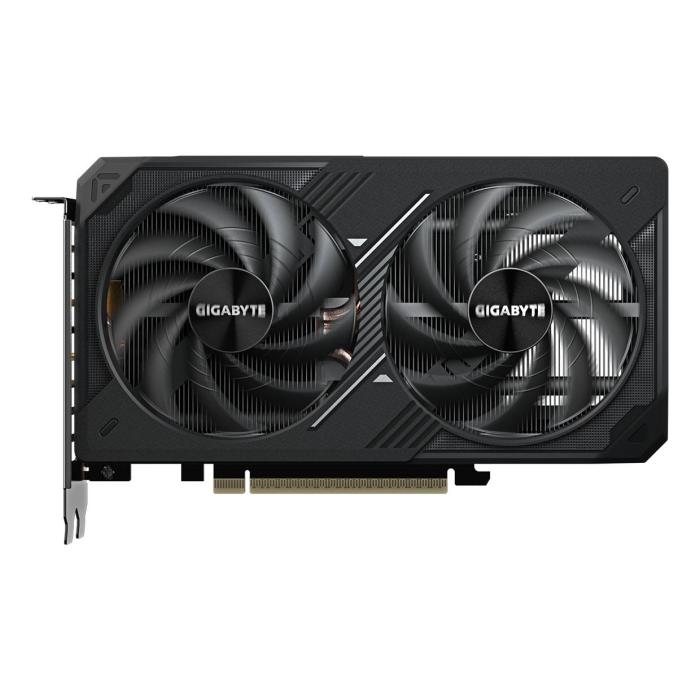

The GIGABYTE GeForce RTX 5060 Ti WINDFORCE MAX OC graphics card comes with 16 GB of GDDR7 memory and in black. Its GeForce RTX 5060 Ti graphics processor, from the NVIDIA family, reaches a frequency of 2587 MHz and adds 4608 CUDA cores to accelerate rendering and calculation tasks. The memory runs at 28000 MHz with a 128-bit bus width and a transfer speed of 28 Gbit/s. The PCI Express 5.0 interface connects the card to the motherboard and offers headroom for current systems. For image output it has three DisplayPort ports in version 2.1b and one HDMI port in version 2.1b, so you can set up up to four screens at once. It supports a maximum resolution of 7680 x 4320 pixels, useful for high-definition monitors and multi-screen setups. Weighing 580 g, it integrates technologies such as NVIDIA DLSS 4 to improve performance in compatible games.
Specifications
Processor
- CUDA: Yes
- CUDA cores: 4608
- Graphics processor family: NVIDIA
- Graphics processor: GeForce RTX 5060 Ti
- Processor frequency: 2587 MHz
- Maximum resolution: 7680 x 4320 pixels
- Parallel processing technology support: Not supported
- Maximum displays per videocard: 4
Memory
- Discrete graphics card memory: 16 GB
- Graphics card memory type: GDDR7
- Memory bus: 128 bit
- Memory clock speed: 28000 MHz
- Data transfer rate: 28 Gbit/s
Ports & interfaces
- Interface type: PCI Express 5.0
- HDMI ports quantity: 1
- HDMI version: 2.1b

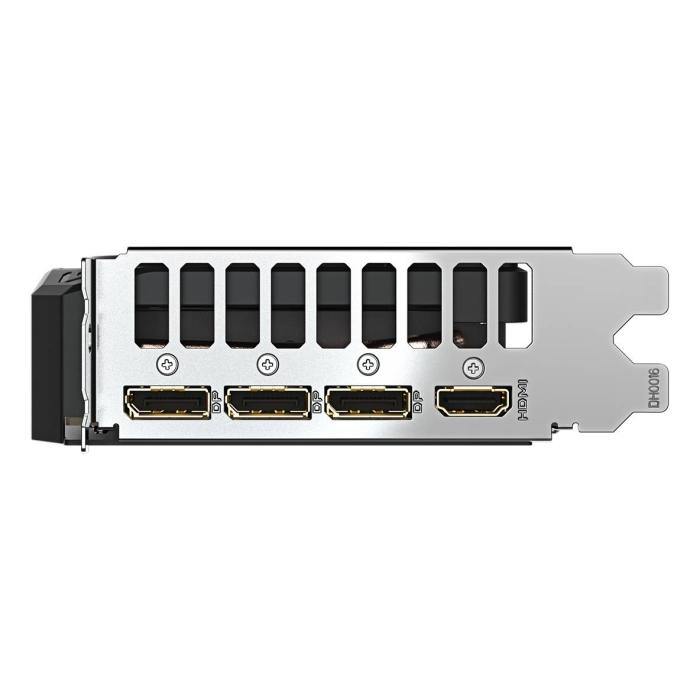

- DisplayPorts quantity: 3
- DisplayPort version: 2.1b
Performance
- TV tuner integrated: No
- DirectX version: 12.0
- OpenGL version: 4.6
- Dual Link DVI: No
- NVIDIA G-SYNC: Yes
- Overclocked (OC) edition: Yes
- Warranty period: 3 year(s)
Design
- Cooling type: Active
- Cooling technology: GIGABYTE WINDFORCE 2X
- Number of fans: 2 fan(s)
- Form factor: Full-Height/Half-Length (FH/HL)
- Number of slots: 2
- Product colour: Black
Power
- Minimum system power supply: 650 W
- Supplementary power connectors: 1x 8-pin
- Thermal Design Power (TDP): 135 W
Weight & dimensions
- Weight: 580 g
- Length: 208 mm
- Depth: 40 mm
- Height: 120 mm
Packaging data
- Package width: 210.5 mm
- Package depth: 295 mm
- Package height: 50 mm
- Package weight: 850 g
- Package type: Box
Logistics data
- Products per shipping (inner) case: 1 pc(s)
