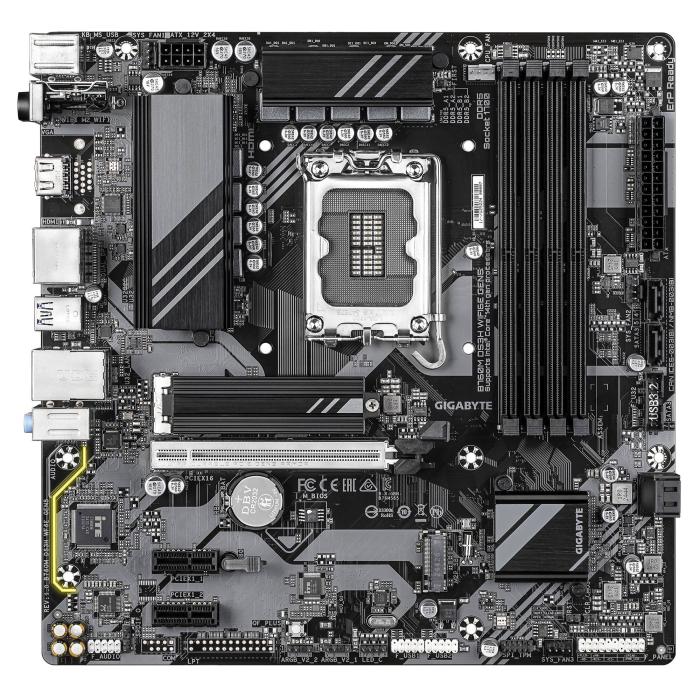

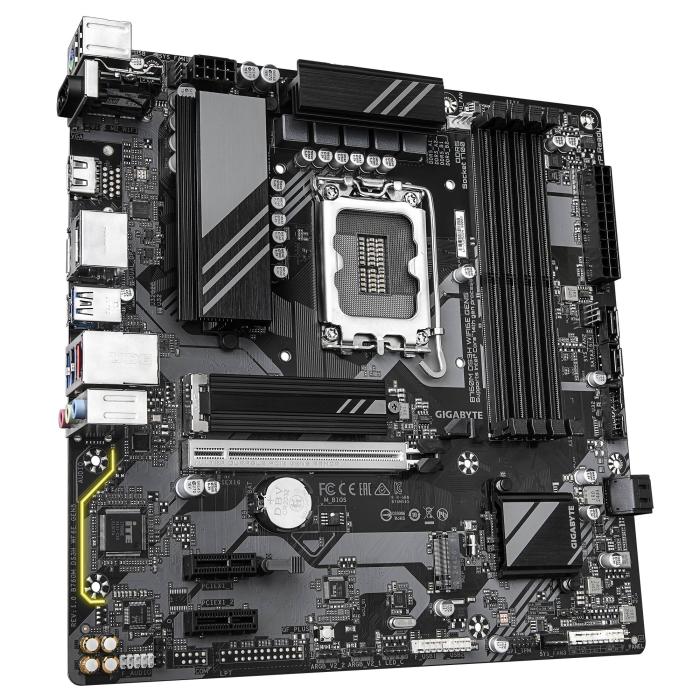

GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2

114.05 €
114.05 € without VAT

More info

Brand: GIGABYTE
SKU: 117629 PRC: 616416 EAN: 4719331872809 PN: GA-B760M DS3H WF6E GEN5

Description

GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR5-SDRAM, 256 GB

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5
  • Supported processor sockets: LGA 1700

Memory

  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 5600, 5200, 4800, 4400 MHz
  • Supported memory clock speed (max): 5600 MHz
  • Maximum internal memory: 256 GB
  • Unbuffered memory: Yes
  • Maximum internal memory per slot: 64 GB
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10

Graphics

  • Parallel processing technology support: Not supported
  • Maximum resolution: 4096 x 2304 pixels
  • HDCP: Yes
  • DirectX version: 12.0

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 1
  • Number of chassis fan connectors: 3
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 1
  • TPM connector: Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 3

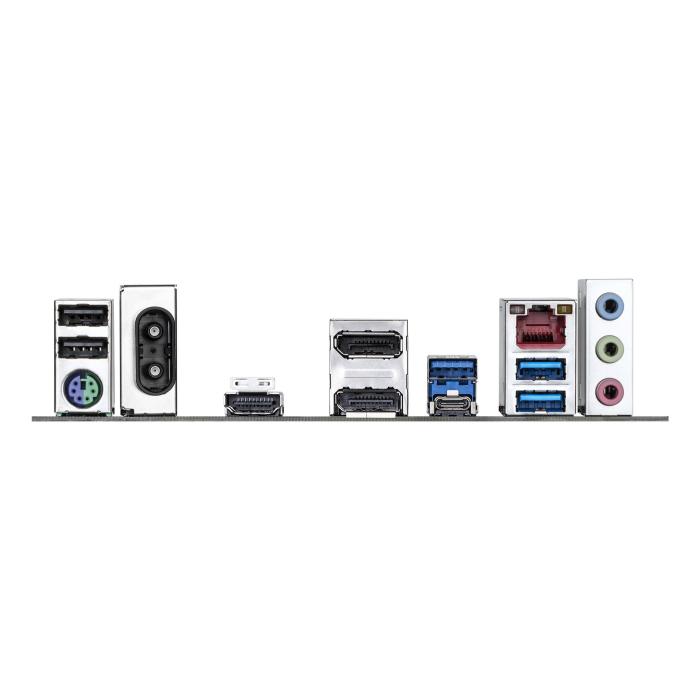

Rear panel I/O ports

  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 2
  • DisplayPort version: 1.2
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • WiFi-AP antenna jack: 2

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • LAN controller: Realtek RTL8125
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • WLAN controller model: Intel Wi-Fi 6E AX210
  • Bluetooth: Yes
  • Bluetooth version: 5.3

Features

  • Motherboard chipset: Intel B760 Express
  • Audio chip: Realtek ALC897
  • Audio output channels: 7.1 channels
  • Product colour: Dark brown
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

  • PCI Express x1 (Gen 3.x) slots: 2
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 2
  • 1st M.2 largest key size: 2280
  • 1st M.2 highest PCI Express generation: 4.0
  • 2nd M.2 largest key size: 2280
  • 2nd M.2 highest PCI Express generation: 4.0

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System management BIOS (SMBIOS) version: 2.7

Logistics data

  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)

Battery

  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032

Packaging data

  • Package width: 270 mm
  • Package depth: 268 mm
  • Package height: 68 mm
  • Package weight: 1.2 kg

Weight & dimensions

  • Width: 244 mm
  • Depth: 244 mm
  • Height: 35 mm

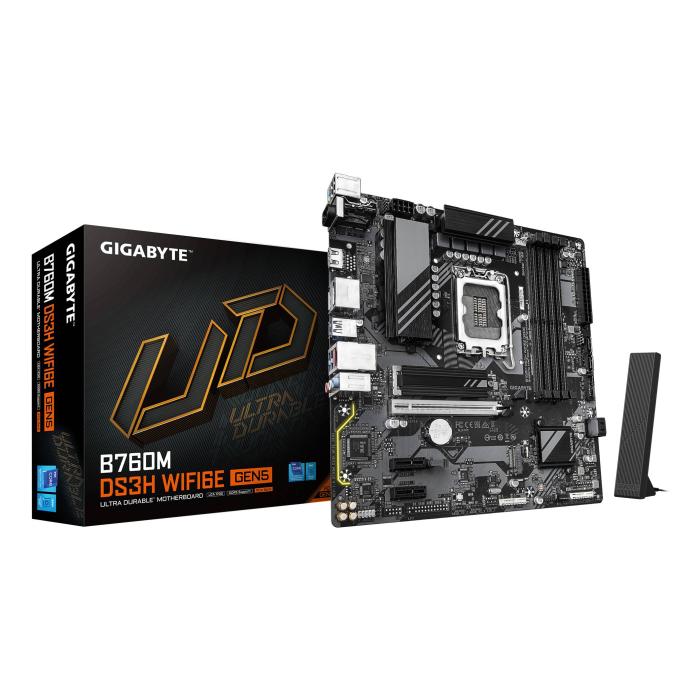

Packaging content

  • Batteries included: Yes
  • Antenna included: Yes
  • Screws included: Yes
  • Bundled software: Norton® Internet Security (OEM version)

Other features

  • Weight: 1.1 kg

Technical details

  • Warranty period: 3 year(s)
