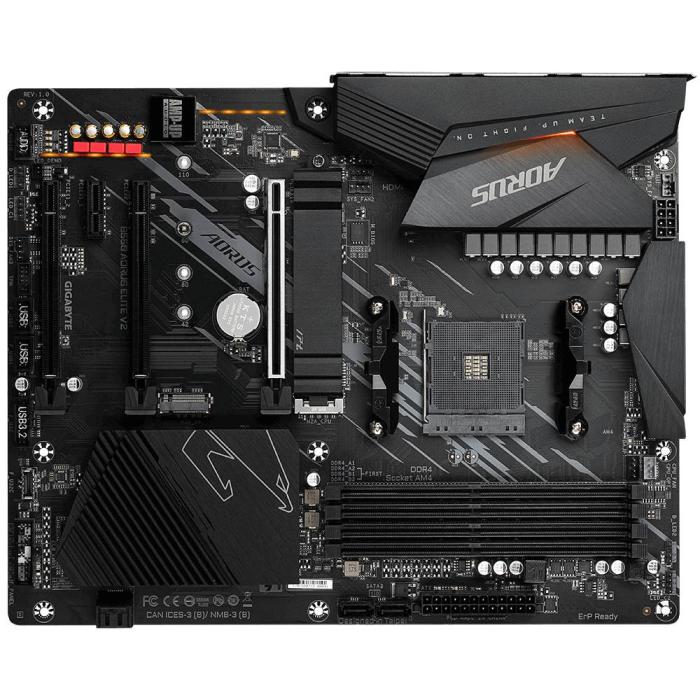

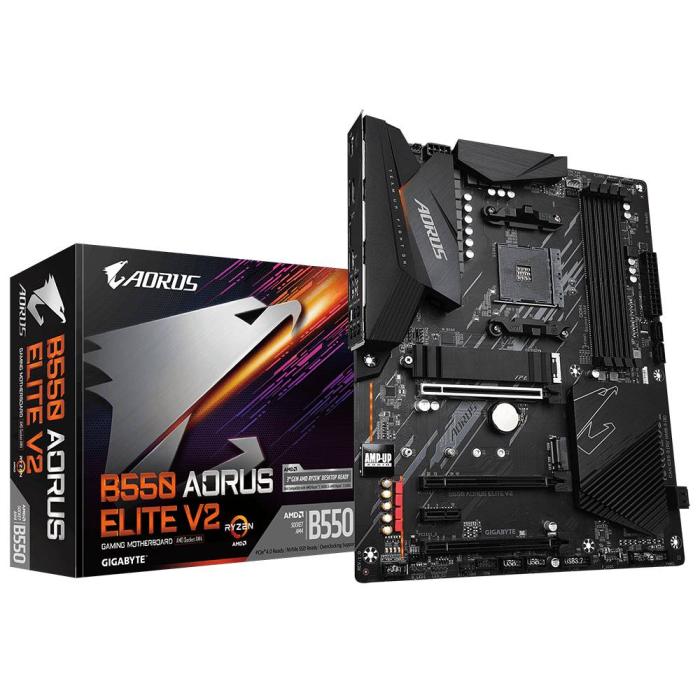

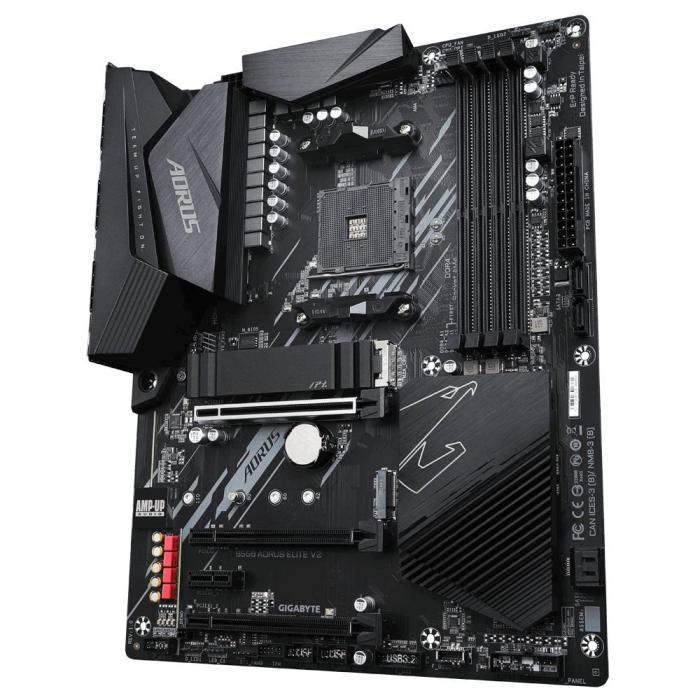

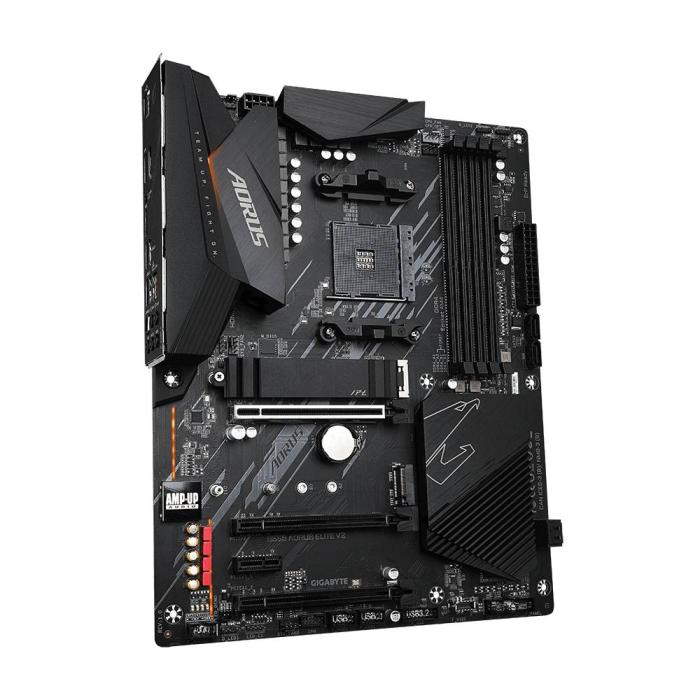

GIGABYTE B550 AORUS ELITE V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2

$120.93
$120.93 without VAT

GIGABYTE B550 AORUS ELITE V2 Motherboard - AMD Ryzen 5000 CPUs, 12+2 Phases VRM, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2.   More info

Brand: GIGABYTE
SKU: 86438 PRC: 304132 EAN: 4719331809898 PN: B550 AORUS ELITE V2

Description

Specifications

Processor

  • Processor manufacturer: AMD
  • Processor socket: Socket AM4
  • Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
  • Maximum number of SMP processors: 1
  • Supported processor sockets: Socket AM4

Memory

  • Supported memory types: DDR4-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4733, 4600, 4400, 4266, 4133, 4000, 3866, 3733, 3600, 3466, 3400, 3200, 2933, 2667, 2400, 2133 MHz
  • Supported memory clock speed (max): 4733 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes
  • Maximum internal memory per slot: 32 GB

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 10

Graphics

  • Parallel processing technology support: Not supported
  • Maximum resolution: 5120 x 2880 pixels
  • HDCP: Yes
  • DirectX version: 12.0

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 1
  • Number of chassis fan connectors: 3
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 1
  • TPM connector: Yes
  • 12V power connector: Yes
  • Number of water pump connectors: 4
  • RGB LED pin header: Yes
  • Number of RGB LED pin headers: 5

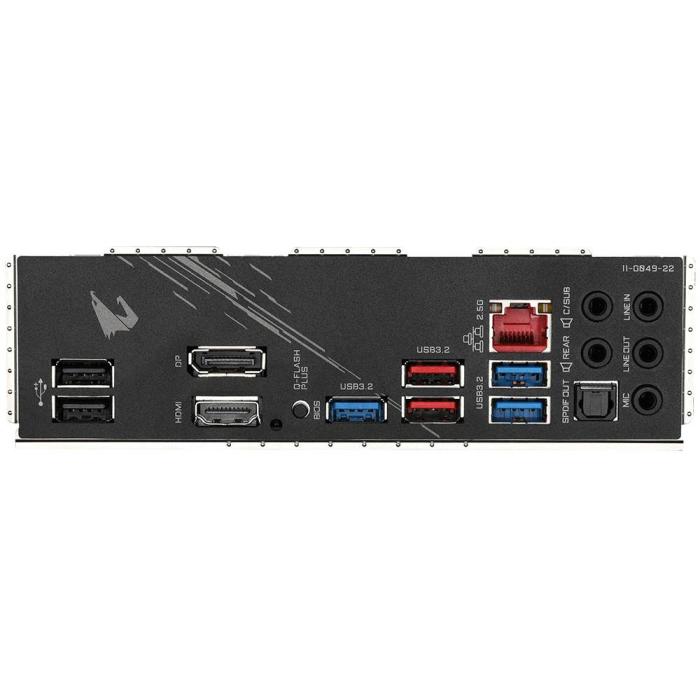

Rear panel I/O ports

  • Line-in: Yes
  • Microphone in: Yes
  • S/PDIF out port: Yes
  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • LAN controller: Realtek RTL8125
  • Wi-Fi: No

Features

  • Motherboard chipset: AMD B550
  • Audio chip: Realtek ALC897
  • Audio output channels: 7.1 channels
  • Product colour: Black
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: AMD
  • Cooling type: Passive
  • Power source type: ATX
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

  • PCI Express x1 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 3.x) slots: 2
  • PCI Express x16 (Gen 4.x) slots: 1
  • Number of M.2 (M) slots: 2
  • 1st M.2 largest key size: 22110
  • 1st M.2 highest PCI Express generation: 4.0
  • 2nd M.2 largest key size: 22110
  • 2nd M.2 highest PCI Express generation: 3.0

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System management BIOS (SMBIOS) version: 2.7

Logistics data

  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)
  • Harmonized System (HS) code: 84733020

Battery

  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032

Packaging data

  • Package width: 335 mm
  • Package depth: 270 mm
  • Package height: 80 mm
  • Package weight: 1.8 kg

Weight & dimensions

  • Width: 305 mm
  • Depth: 244 mm
  • Height: 35 mm

Packaging content

  • Batteries included: Yes
  • Screws included: Yes
  • Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software

Other features

  • Weight: 1.12 kg

Technical details

  • Warranty period: 3 year(s)
