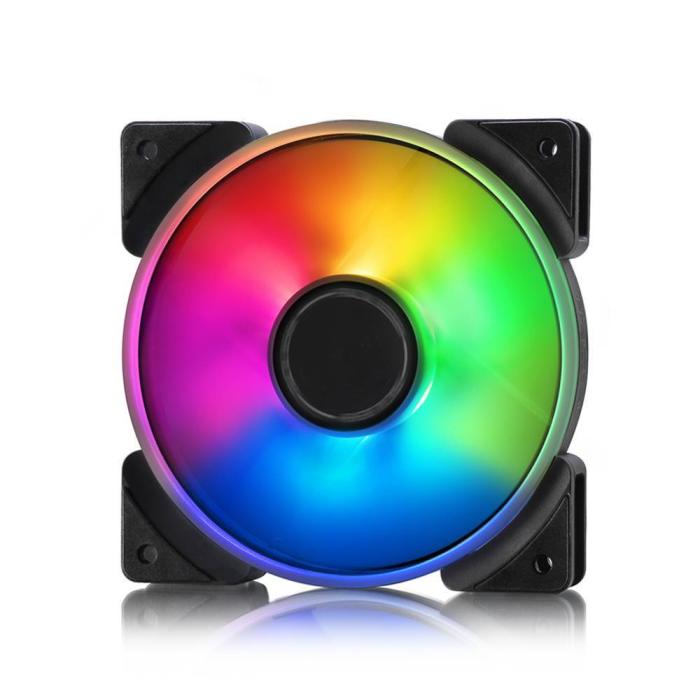

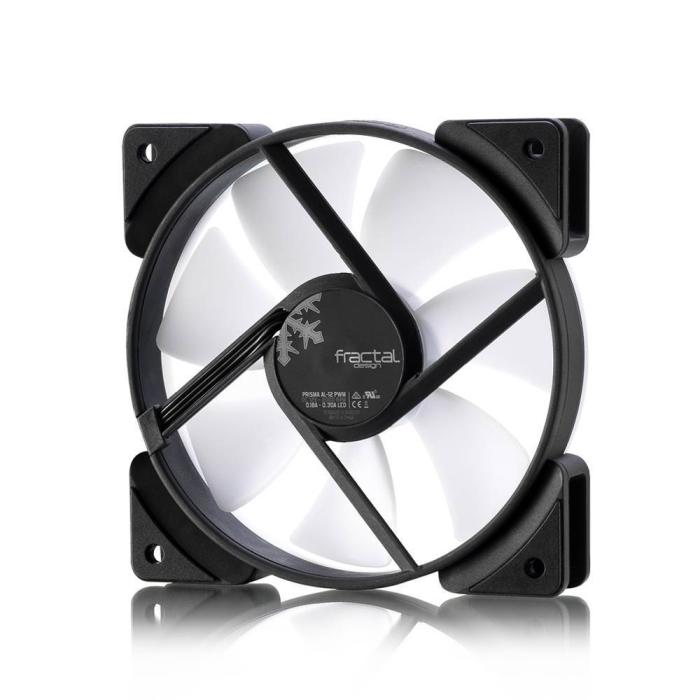

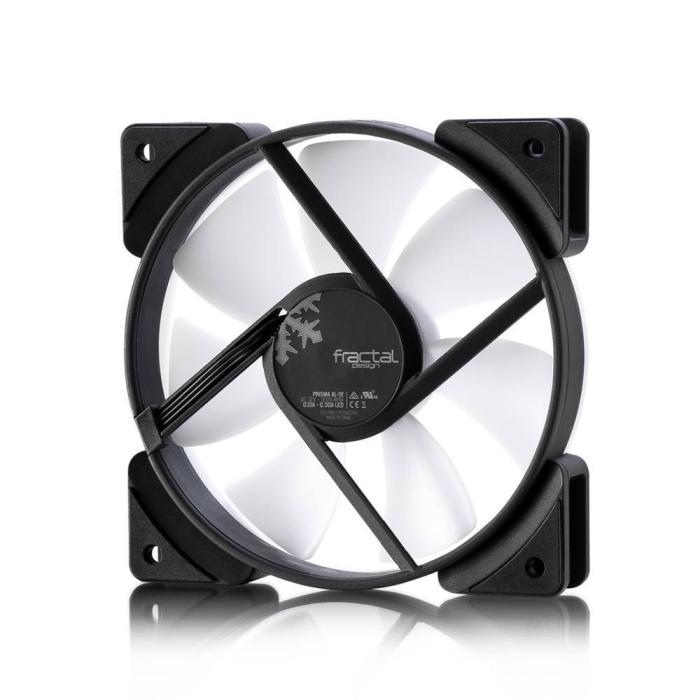

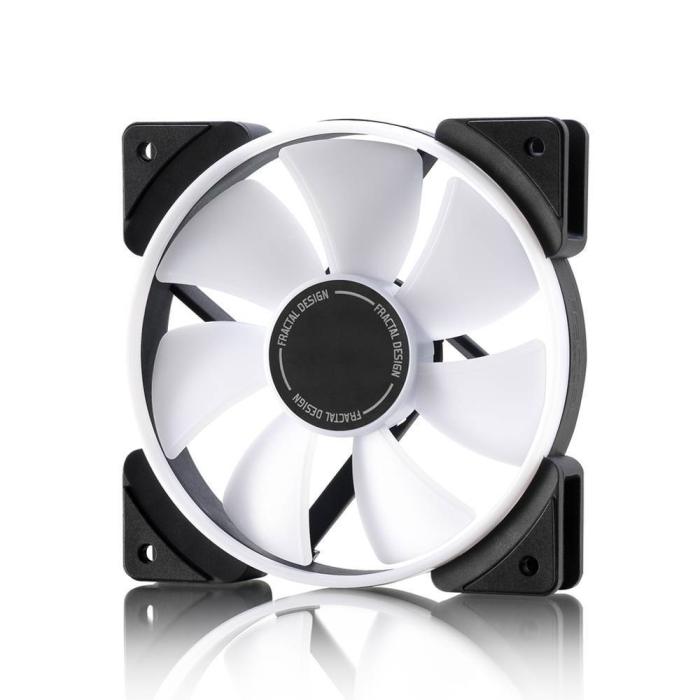

Fractal Design Prisma AL-12 PWM Computer case Fan 12 cm Black, White 1 pc(s)
More info
Brand: FRACTAL DESIGN
7,00 €Stock available: 0 units.
Unavailable
SKU:
113772
PRC:
528177
EAN:
7340172701590
PN:
fd-fan-pri-al12-pwm
Description

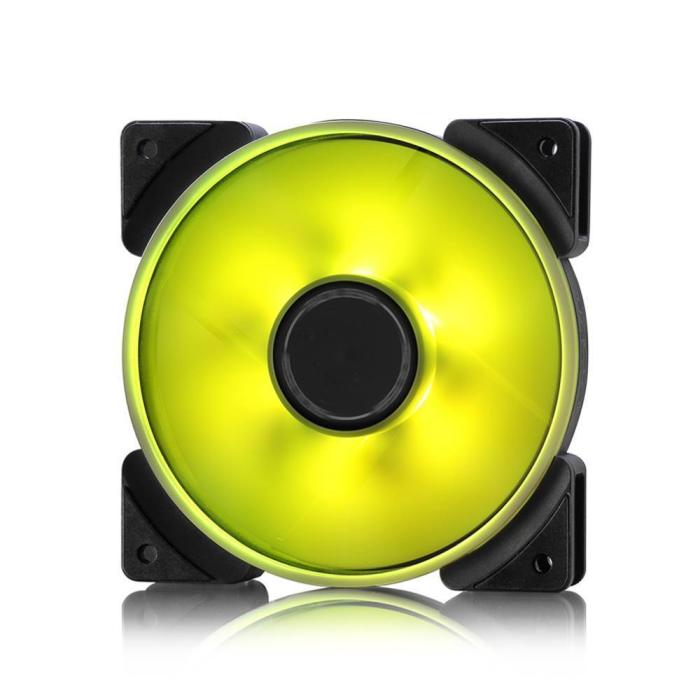

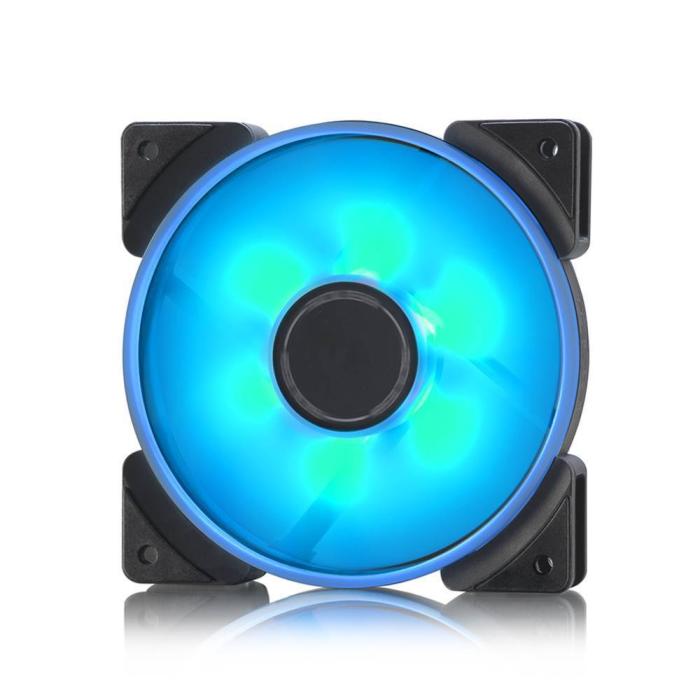

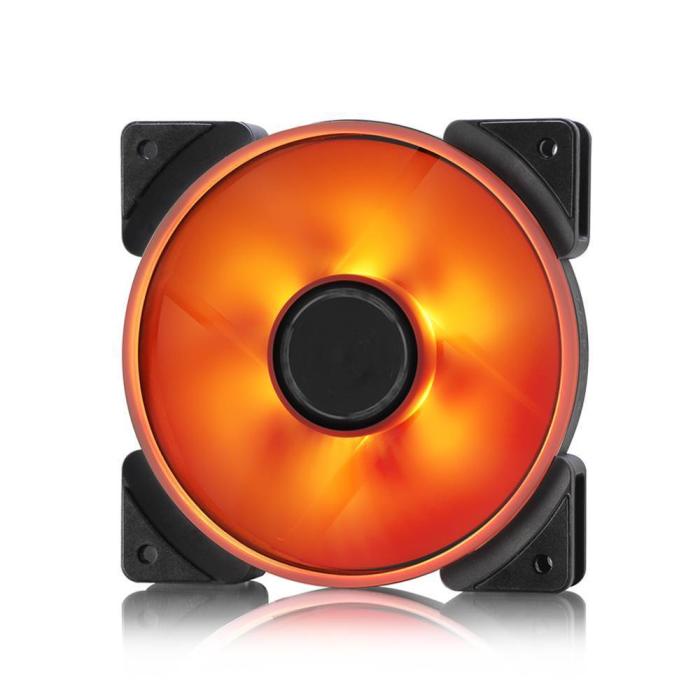

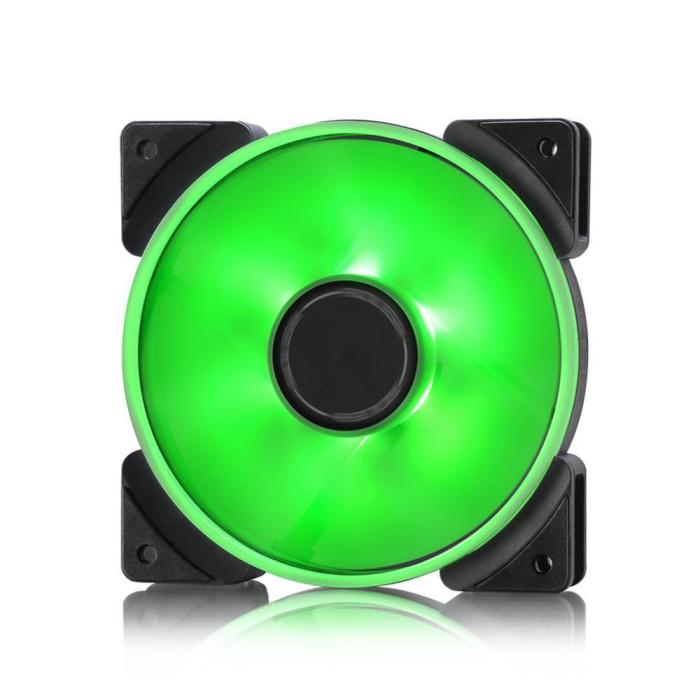

12 cm black and white fan from Fractal Design, with PWM control to adjust the rotation speed between 500 and 2000 RPM according to the system temperature. This model from the Prisma AL-12 series offers a maximum airflow of 85.71 cfm and a maximum pressure of 2.78 mmH2O, suitable for the computer case. Its 7 blades and 6 LEDs illuminate the interior while maintaining a noise level of 14.8 dB at low speed and 32.7 dB at high speed. With a mean time between failures of 100,000 hours, each unit is sold separately.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Rotational speed (min): 500 RPM
- Rotational speed (max): 2000 RPM
- Noise level (low speed): 14.8 dB
- Noise level (high speed): 32.7 dB
- Minimum airflow (imperial): 20.68 cfm
- Maximum airflow: 85.71 cfm
- Airflow: 145.62 m³/h
- Minimum air pressure: 0.36 mmH2O
- Maximum air pressure: 2.78 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Quantity per pack: 1 pc(s)
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black, White

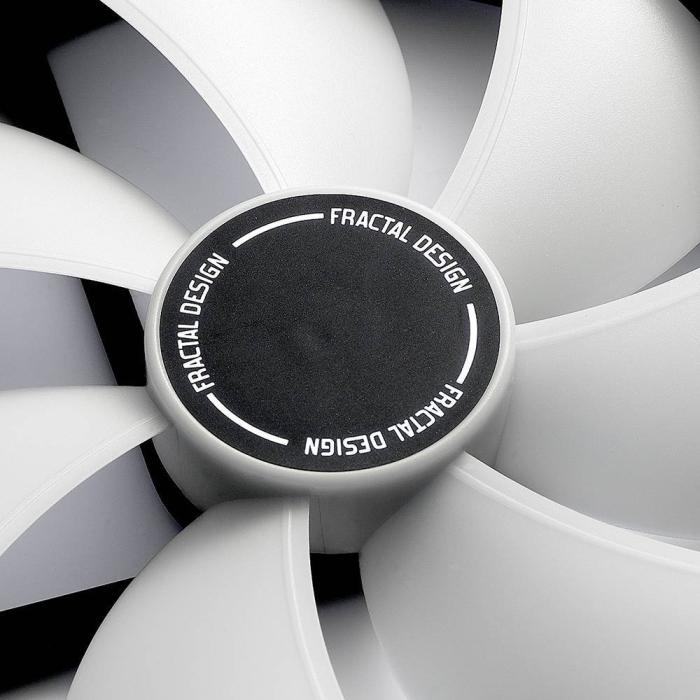

- Number of fan blades: 7
- Illumination LED: Yes
- Number of LEDs: 6
- Illumination colour: Multi

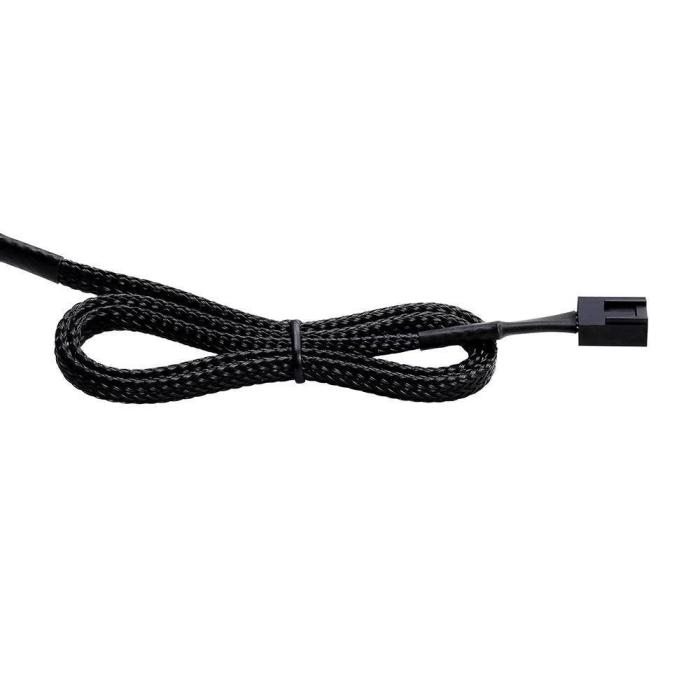

- Fan connector: 4-pin
Power
- Power supply: 2.16 W
- Voltage: 12 V
- Starting voltage: 7 V
- Rated current: 0.18 A
- LED voltage: 5 V
Weight & dimensions
- Width: 120 mm
- Depth: 25 mm
- Height: 120 mm
- Weight: 169 g
- Cable length: 0.5 m
- Package width: 182 mm
- Package depth: 122 mm
- Package height: 30 mm
- Package weight: 212 g
Packaging content
- Screws included: Yes
- Number of screws: 4
Other features
- Country of origin: China
Logistics data
- Harmonized System (HS) code: 84733080
