Description

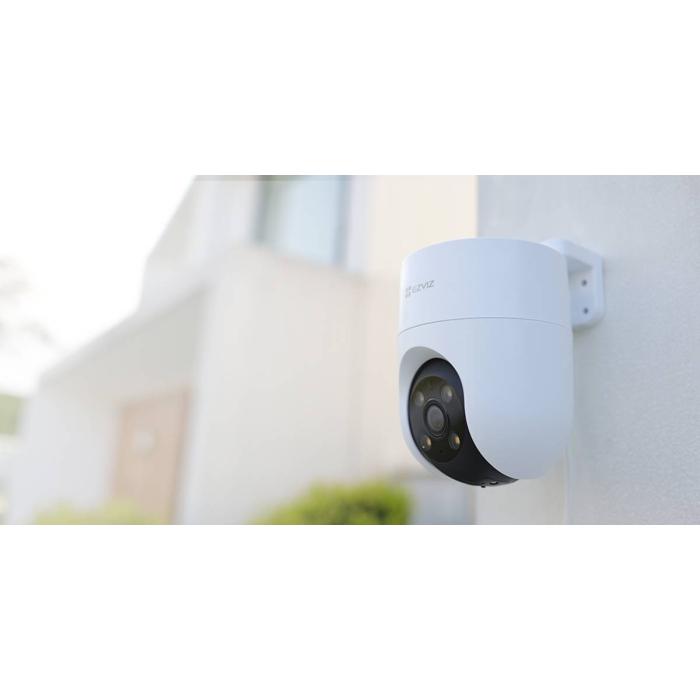

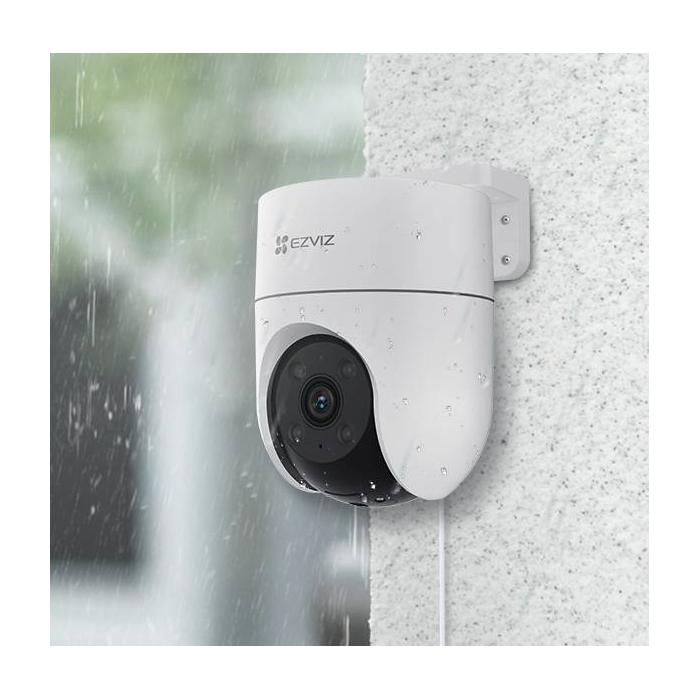

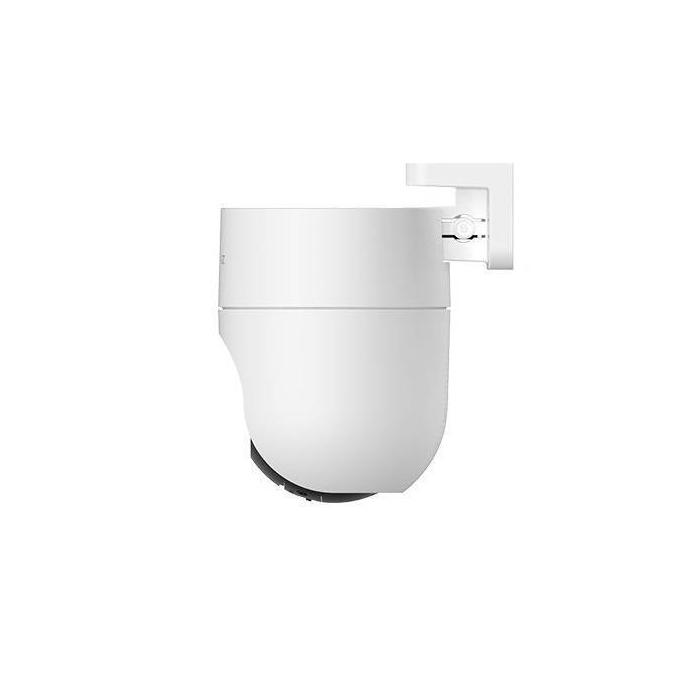

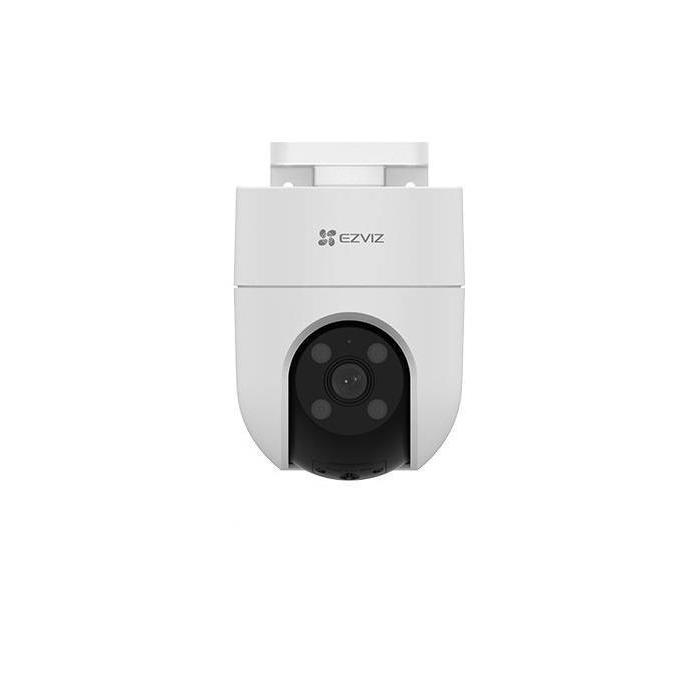

EZVIZ H8c 2K in its white colour variant and pad form factor is presented as an IP security camera designed for outdoor use, with versatile ceiling or wall mounting and weather resistance. It incorporates a 1/2.8-inch CMOS sensor with progressive scan and 2304 x 1296 pixel resolution, along with an infrared cut-off filter allowing minimum illumination of 0 lx for night vision. Its lens offers a maximum aperture of 1.6 and viewing angles of 104° diagonal, 89° horizontal and 46° vertical, with tilt capability from 0 to 80° and horizontal rotation of up to 350°. Connectivity is both wireless and wired, and the pad-type design facilitates discreet installation on outdoor surfaces.
Specifications
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired & Wireless
- Infrared (IR) cut-off filter: Yes
Design
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: White
- Weatherproof: Yes
Camera
- Minimum illumination: 0 lx
- Lens viewing angle, horizontal: 89°
- Lens viewing angle, vertical: 46°
- Lens viewing angle, diagonal: 104°
- Tilt angle range: 0 - 80°
- Pan range: 0 - 350°
Image sensor
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Number of lenses: 1
- Maximum aperture number: 1.6
- Fixed focal length: 4 mm
Night vision
- Night vision: Yes
- Night vision distance: 30 m
- LED type: IR
Video
- Maximum resolution: 2304 x 1296 pixels
- Video compression formats: H.264, H.265
- Frame rate: 30 fps
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Bit rate: 3 Mbps
- Digital Wide Dynamic Range (DWDR): Yes
Audio
- Built-in speaker(s): Yes
- Audio system: 2-way
- Built-in microphone: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Wi-Fi: Yes
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Wi-Fi data rate (max): 72 Mbit/s
- Bluetooth: No
- Channel bandwidth: 20 MHz
- Live view: Yes
- Number of simultaneous live view channels: 2 channels
Storage
- Built-in HDD: No
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 512 GB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Security
- Password protection: Yes
- Video motion detection: Yes
- Intelligent Video Surveillance (IVS) system features: Human detection
- Anti-flicker: Yes
- Heartbeat: Yes
- Digital watermark: Yes
- Configurable region: Yes
Power
- Power source type: DC
- Power consumption (max): 12 W
- DC output voltage: 5, 12
- DC output current: 1 A
Operational conditions
- Operating temperature (T-T): -30 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Depth: 129.2 mm
- Height: 149.8 mm
- Weight: 435 g
- Width: 100 mm
Packaging data
- Package width: 140 mm
- Package depth: 140 mm
- Package height: 192 mm
- Package weight: 745 g
Sustainability
- Sustainability compliance: Yes
- Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA, WEEE
Packaging content
- Number of cameras: 1
- Screws included: Yes
- Drilling template included: Yes
- Manual: Yes
- AC adapter included: Yes
- Waterproof connector: Yes
Technical details
- Lens mount interface: M12
