Extreme networks ExtremeSwitching X435 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Violet
More info
Brand: EXTREME NETWORKS
2,268,00 €Stock available: 0 units.
Unavailable
SKU:
125435
PRC:
351799
EAN:
644728046089
PN:
x435-24p-4s
Description

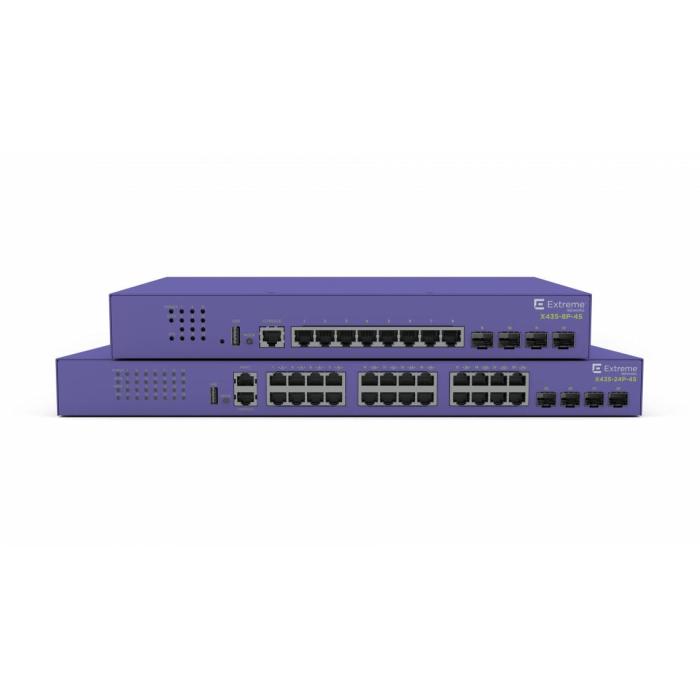

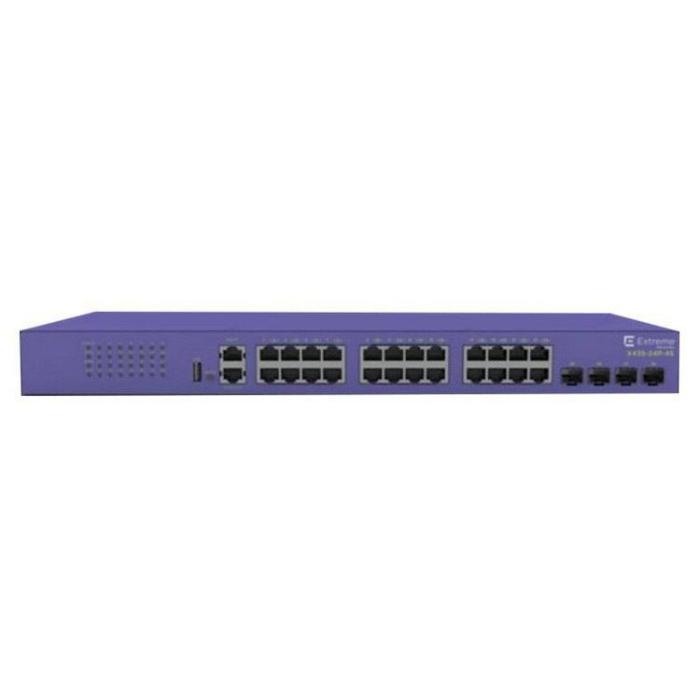

The managed ExtremeSwitching X435 switch from Extreme Networks, in a violet finish, offers 24 Gigabit Ethernet ports (10/100/1000) with PoE support per IEEE 802.3at to power network devices directly from the unit. Its stackable and rack-mountable design includes 4 SFP slots for fibre links, with a switching capacity of 68 Gbit/s and a forwarding rate of 50.6 Mpps. It manages up to 4096 VLANs, maintains a MAC address table of 16000 entries, and has 8 priority queues, with support for jumbo frames and ingress access control lists (ACLs) with 1000 entries. The internal 512 MB memory and 128 MB flash support its managed operation, aimed at network environments requiring control and segmentation.
Specifications
Management features
- Switch type: Managed
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 4
Network
- Networking standards: IEEE 802.3at
- 10G support: No
- Number of VLANs: 4096
Data transmission
- Switching capacity: 68 Gbit/s
- Forwarding rate: 50.6 Mpps
- MAC address table: 16000 entries
- Number of queues: 8
- Jumbo frames support: Yes
Security
- Access Control List (ACL) ingress: 1000
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Violet
Performance
- Built-in processor: Yes
- Internal memory: 512 MB
- Flash memory: 128 MB
Power
- Power supply included: Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
- Heat dissipation: 43.9 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 254 mm
- Height: 43.5 mm
- Weight: 3.48 kg
Certificates
- Certification: EU RoHS, EU WEEE, China RoHS, Taiwan RoHS
Logistics data
- Harmonized System (HS) code: 85176990
