Description

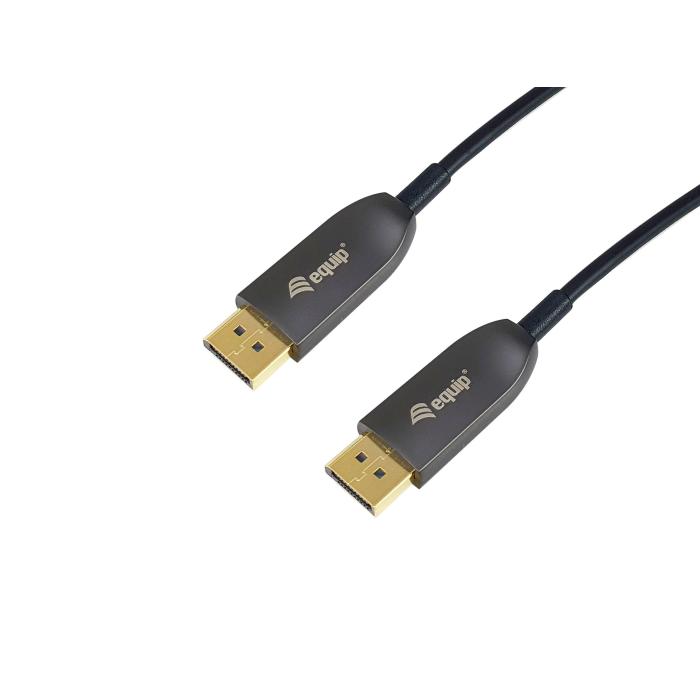

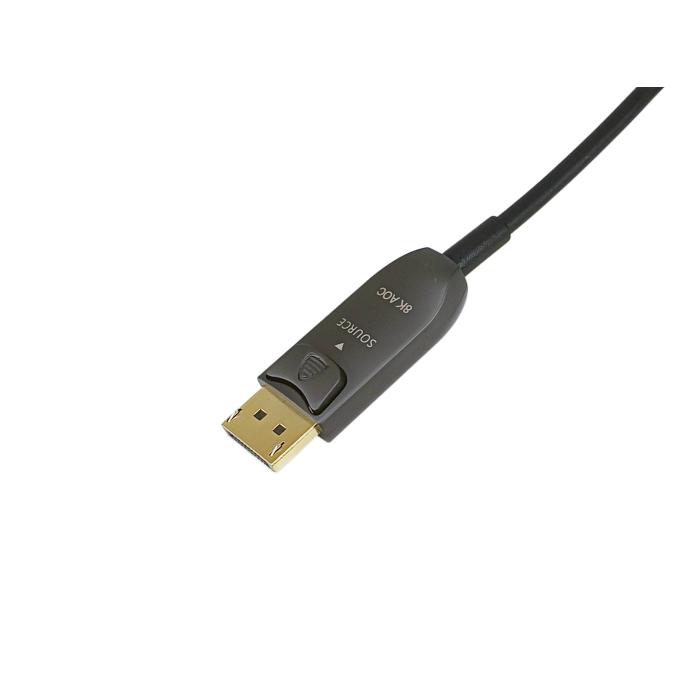

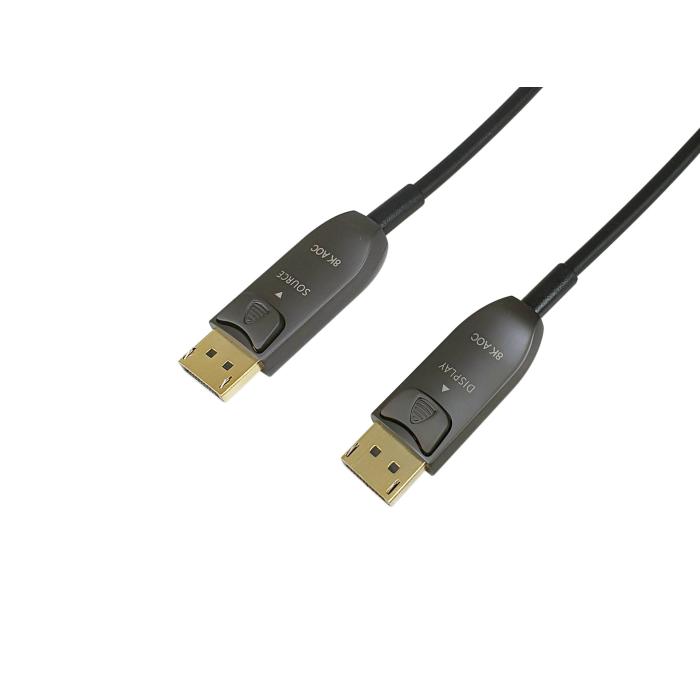

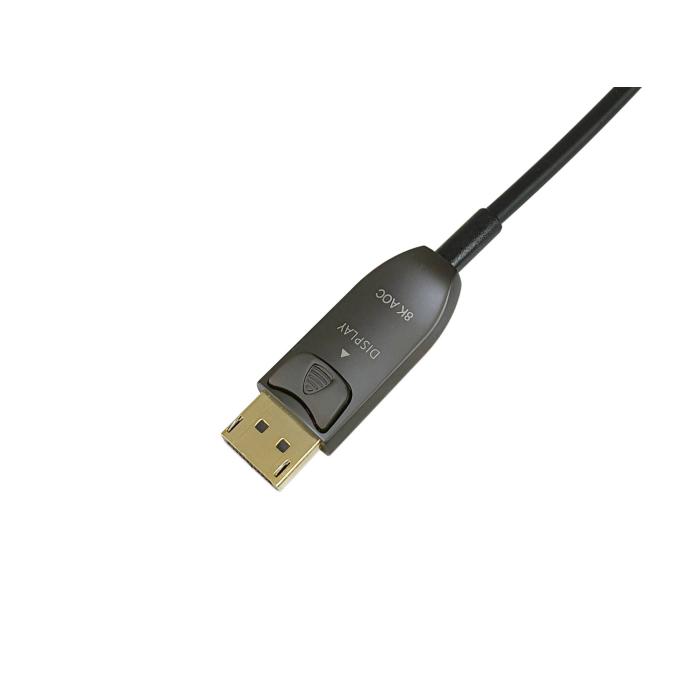

Active optical DisplayPort 1.4 cable, 30 metres long, in black, designed to connect devices with a male DisplayPort connector over a long distance without signal loss. This EQUIP model supports a maximum resolution of 7680 x 4320 pixels at 60 Hz, as well as resolutions such as 3840 x 2160, 2560 x 1440, 5120 x 2880 and 1920 x 1200, with a bandwidth of 32400 MB/s. It includes support for Display Stream Compression (DSC), High Dynamic Range (HDR) and Multi-Stream Transport (MST) technology, as well as HDCP 2.2 for protected content. Its straight male DisplayPort connectors feature gold-plated contacts, ensuring reliable and long-lasting transmission.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- DisplayPort version: 1.4
- Maximum resolution: 7680 x 4320 pixels
- Supported graphics resolutions: 3840 x 2160, 2560 x 1440, 5120 x 2880, 7680 x 4320, 1920 x 1200 (WUXGA)
- Maximum refresh rate: 120 Hz
- HDCP: Yes
- HDCP version: 2.2
- Display Stream Compression (DSC): Yes
- Cable length: 30 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Black
- High Dynamic Range (HDR) supported: Yes
- Bandwidth: 32400 MB/s
- Multi-Stream Transport (MST): Yes
Certificates
- Compliance certificates: RoHS, CE
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Weight: 860 g
Packaging data
- Package width: 205 mm
- Package depth: 65 mm
- Package height: 205 mm
- Package type: Box
- Package weight: 1.08 kg
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Country of origin: China
- Master (outer) case width: 300 mm
- Master (outer) case length: 230 mm
- Master (outer) case height: 460 mm
- Master (outer) case gross weight: 10.8 kg
- Products per master (outer) case: 10 pc(s)
