Description

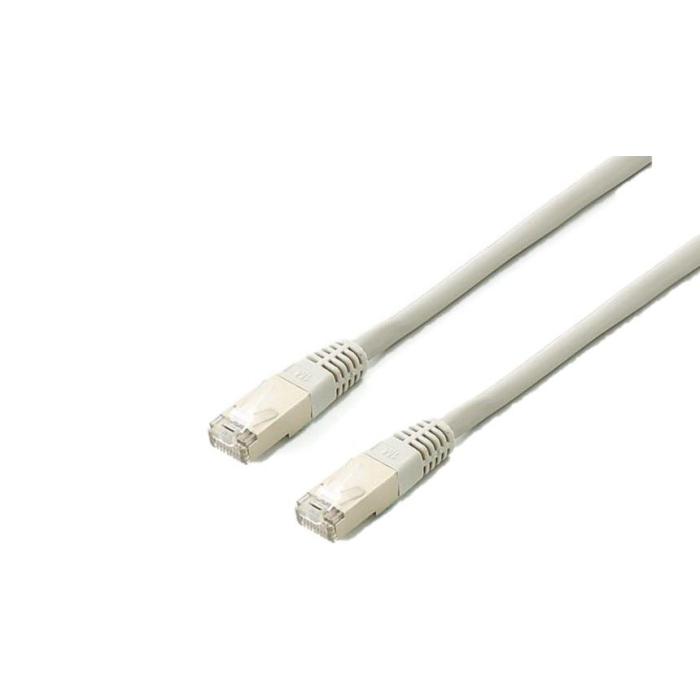

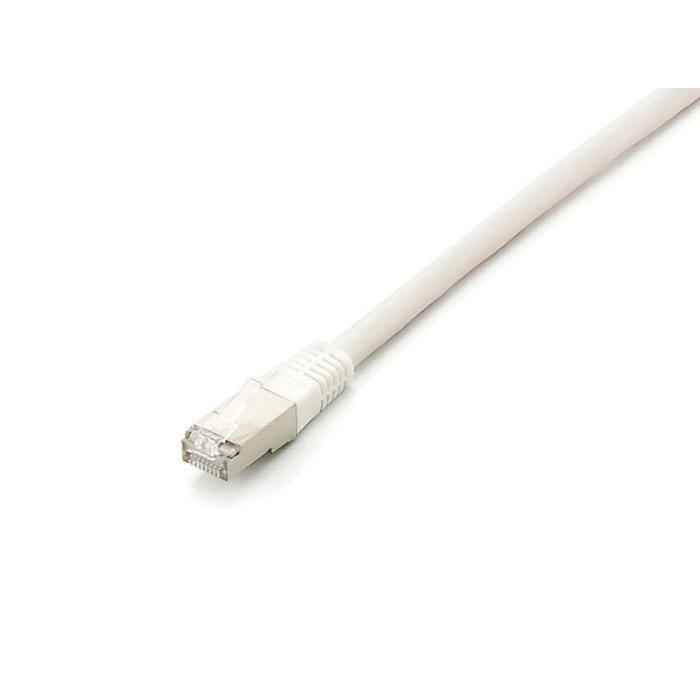

The white EQUIP network cable is a 5 m long patch cable, measuring 8.34 x 5000 x 11.7 mm and weighing 198 g. Its two RJ-45 connectors are straight and moulded, with gold-plated contacts, ensuring stable transmission. The conductor is copper and the S/FTP (S-STP) shielding protects the signal against interference in demanding installations. It supports 10GBase-T cabling technology and is compatible with PoE+ and PoE++ (4PPoE), so it can power network devices through the cable itself. The jacket is halogen-free (LSZH), a suitable option for spaces where safety against smoke in the event of fire is a priority. It complies with IEEE 802.3 and IEEE 802.5 standards and its AWG 26/7 gauge provides flexibility when handling it. As it is plug-and-play compatible, simply plug it in to start working.
Specifications
Features
- Product colour: White
- Cable length: 5 m
- Cable standard: Cat6a
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 10GBase-T
- Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 26/7
- Data transfer rate: 10000 Mbit/s
- Frequency: 500 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
- Molded cable boot: Yes
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS, UKCA
Weight & dimensions
- Width: 8.34 mm
- Depth: 11.7 mm
- Height: 5000 mm
- Outer diameter: 6.1 mm
- Weight: 198 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 180 mm
- Package depth: 30 mm
- Package height: 230 mm
- Package weight: 95 g
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 300 mm
- Master (outer) case length: 280 mm
- Master (outer) case gross weight: 10.9 kg
- Master (outer) case height: 490 mm
- Products per master (outer) case: 50 pc(s)
Technical details
- Sustainability compliance: Yes
