Description

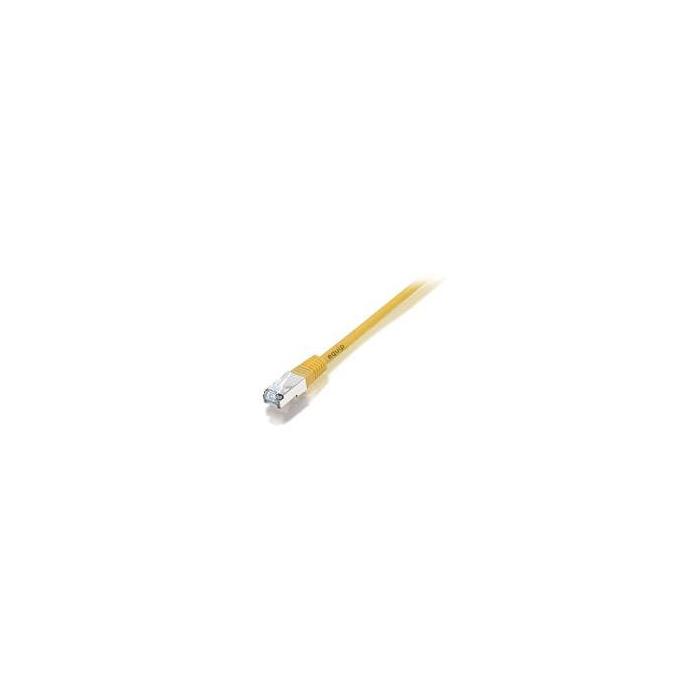

EQUIP network cable in yellow, with a cable length of 0.5 m, designed for short-distance links in demanding network installations. Its dimensions are 8.34 x 500 x 11.7 mm and its weight is 35 g, so it is manageable and discreet in any rack or trunking. It offers 10GBase-T cabling technology under the Cat6a standard, with S/FTP (S-STP) shielding that protects the signal against interference. It incorporates 26/7 gauge copper conductors and gold-plated connector contacts, with two RJ-45 connectors in straight form factor and moulded connector cable to reinforce the connection. The jacket is made of halogen-free material (LSZH), a common option in environments where smoke safety is a concern. It supports PoE+ and PoE++ (4PPoE) power, so it can carry data and power over the same cable. It is compatible with the IEEE 802.3 and IEEE 802.
Specifications
Features
- Product colour: Yellow
- Cable length: 0.5 m
- Cable standard: Cat6a
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 10GBase-T
- Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 26/7
- Data transfer rate: 10000 Mbit/s
- Frequency: 500 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
- Molded cable boot: Yes
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS, UKCA
Weight & dimensions
- Width: 8.34 mm
- Depth: 11.7 mm
- Height: 500 mm
- Outer diameter: 6.1 mm
- Weight: 35 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 140 mm
- Package depth: 12 mm
- Package height: 180 mm
- Package weight: 18 g
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 300 mm
- Master (outer) case length: 280 mm
- Master (outer) case gross weight: 9.57 kg
- Master (outer) case height: 490 mm
- Products per master (outer) case: 250 pc(s)
Technical details
- Sustainability compliance: Yes
