Description

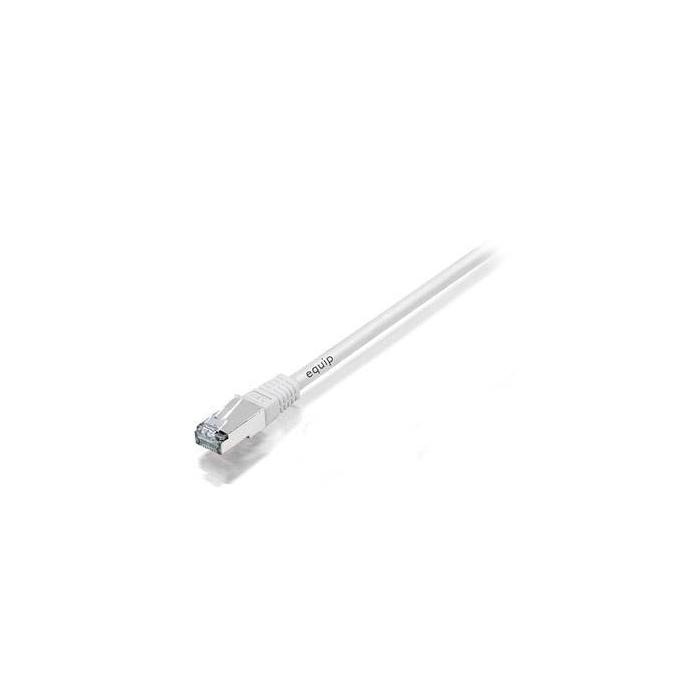

The EQUIP 605512 network cable in white is a Cat6 patch cable with a cable length of 3 m and dimensions of 8.34 x 3000 x 11.7 mm, weighing 128 g. It features moulded straight male connectors at both ends and uses S/FTP technology with stranded conductor and round shape. It reaches a frequency of 250 MHz and a data transfer rate of 1000 Mbit/s, making it compatible with Fast Ethernet and Gigabit Ethernet under the IEEE 802.3 and IEEE 802.5 standards. Its jacket is halogen-free, making it suitable for installations where low smoke emission is required. It supports PoE+, so it can power network devices through the cable itself. Thanks to its Plug and Play function, it is enough to connect it to start using the network without additional configuration.
Specifications
Features
- Product colour: White
- Cable length: 3 m
- Cable standard: Cat6
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 10/100/1000Base-T(X)
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 28/7
- Data transfer rate: 1000 Mbit/s
- Frequency: 250 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+
- Molded cable boot: Yes
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS, UKCA
- Certification: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
Weight & dimensions
- Width: 8.34 mm
- Depth: 11.7 mm
- Height: 3000 mm
- Outer diameter: 5.8 mm
- Weight: 128 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 160 mm
- Package depth: 25 mm
- Package height: 200 mm
- Package weight: 60 g
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 290 mm
- Master (outer) case length: 350 mm
- Master (outer) case gross weight: 12.5 kg
- Master (outer) case height: 380 mm
- Products per master (outer) case: 100 pc(s)
Technical details
- Sustainability compliance: Yes
