Description

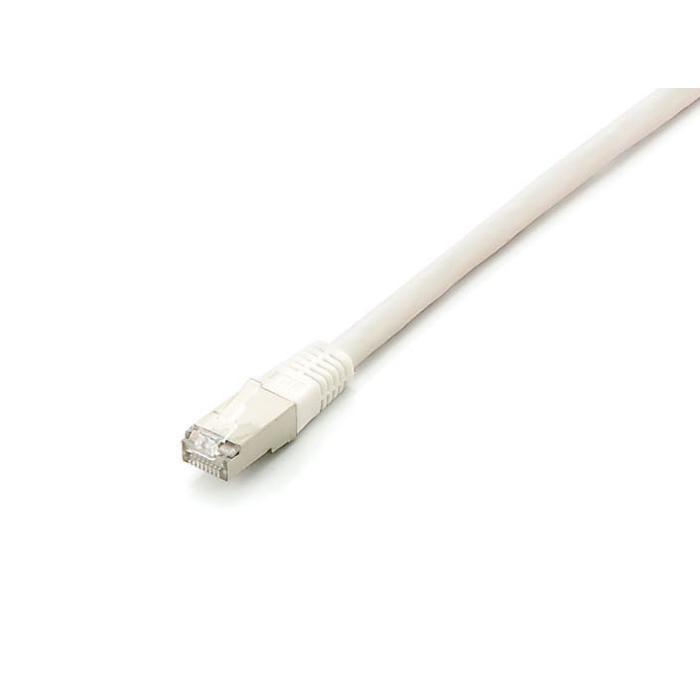

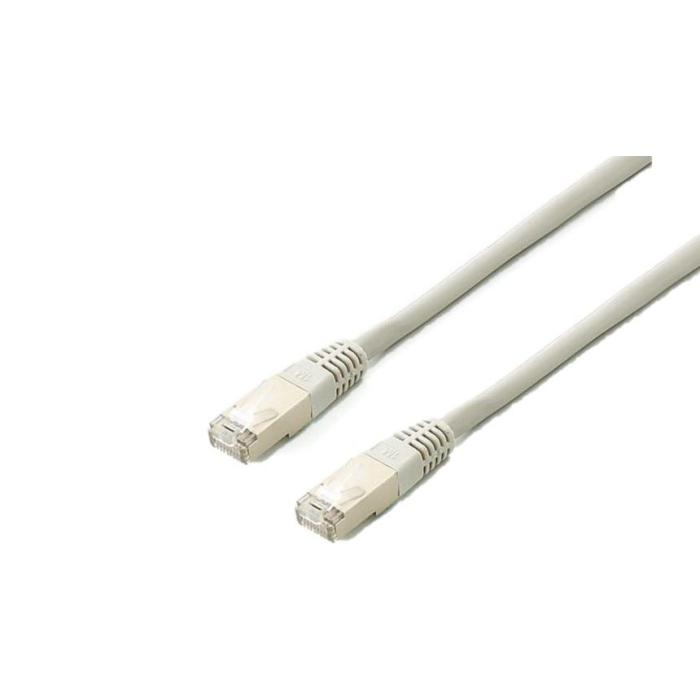

The EQUIP 605612 network cable in white is a 3 m Cat6a patch cable with S/FTP (S-STP) shielding, designed for demanding Ethernet connections. Its straight male connectors are moulded and the conductor is stranded, with a gauge of 26/7 on a round cable. It reaches a frequency of 500 MHz and a data transfer speed of 10000 Mbit/s, making it suitable for 10GBase-T and for 10 Gigabit Ethernet, Gigabit Ethernet and Fast Ethernet networks. It also complies with the IEEE 802.3 and IEEE 802.5 standards and supports Power over Ethernet (PoE), so it can power compatible devices through the cable itself. With dimensions of 8.34 x 3000 x 11.7 mm and a weight of 128 g, this 3 m cable integrates without problem into home or office installations where a stable high-performance connection is needed.
Specifications
Features
- Product colour: White
- Cable length: 3 m
- Cable standard: Cat6a
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 10GBase-T

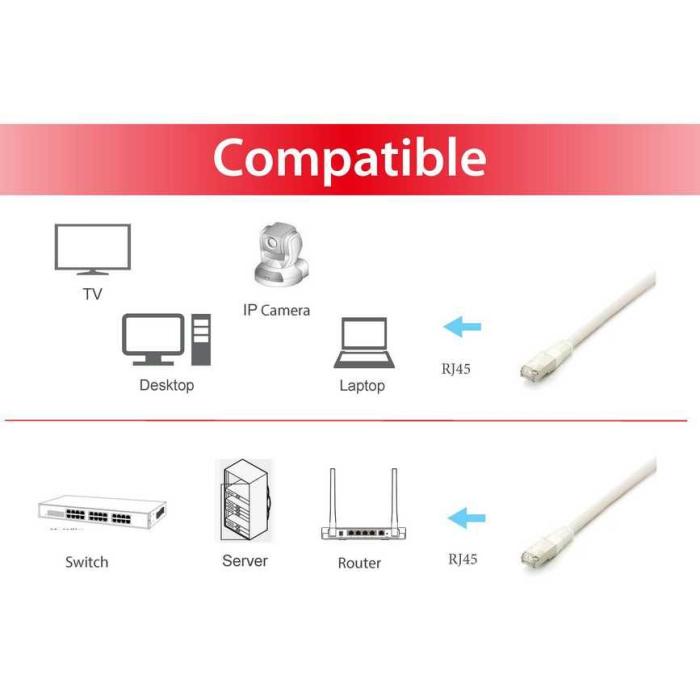

- Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 26/7
- Data transfer rate: 10000 Mbit/s
- Frequency: 500 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
- Molded cable boot: Yes
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS, UKCA
Weight & dimensions
- Width: 8.34 mm
- Depth: 11.7 mm
- Height: 3000 mm
- Outer diameter: 6.1 mm
- Weight: 128 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 160 mm
- Package depth: 25 mm
- Package height: 200 mm
- Package weight: 60 g
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 300 mm
- Master (outer) case length: 280 mm
- Master (outer) case gross weight: 12.4 kg
- Master (outer) case height: 490 mm
- Products per master (outer) case: 90 pc(s)
Technical details
- Sustainability compliance: Yes
