Description

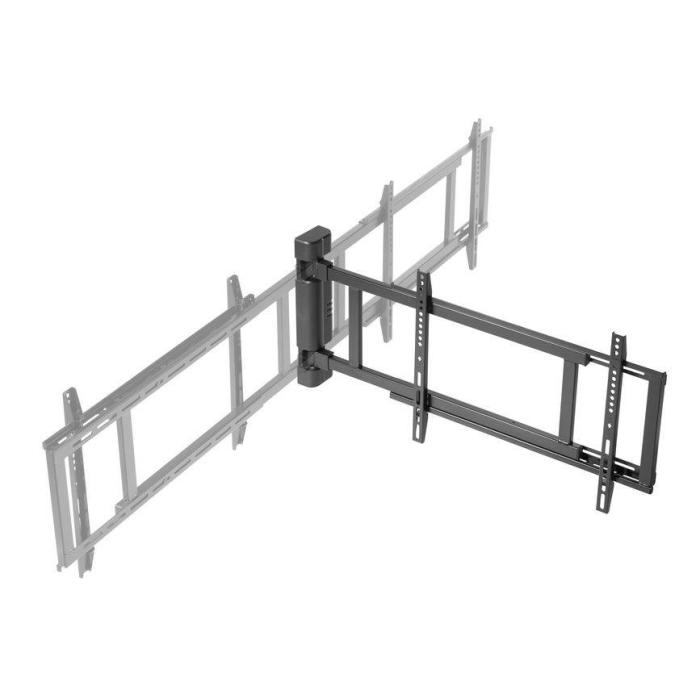

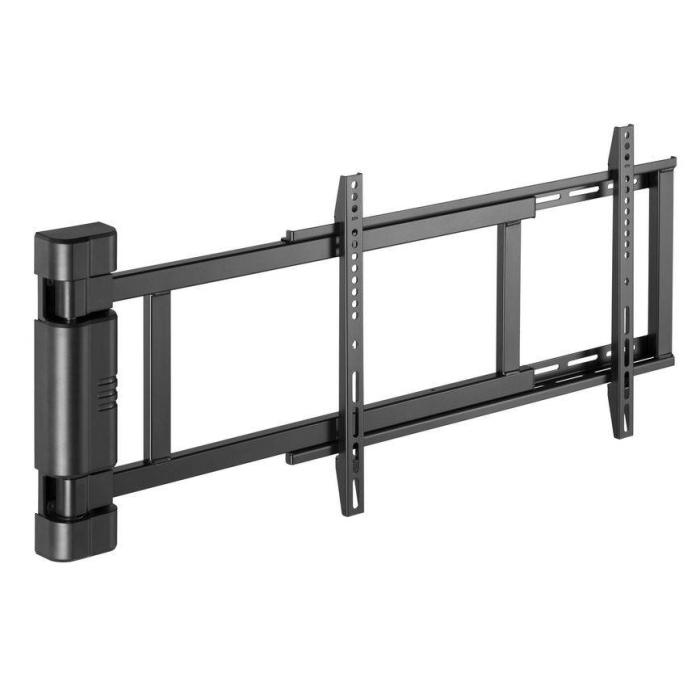

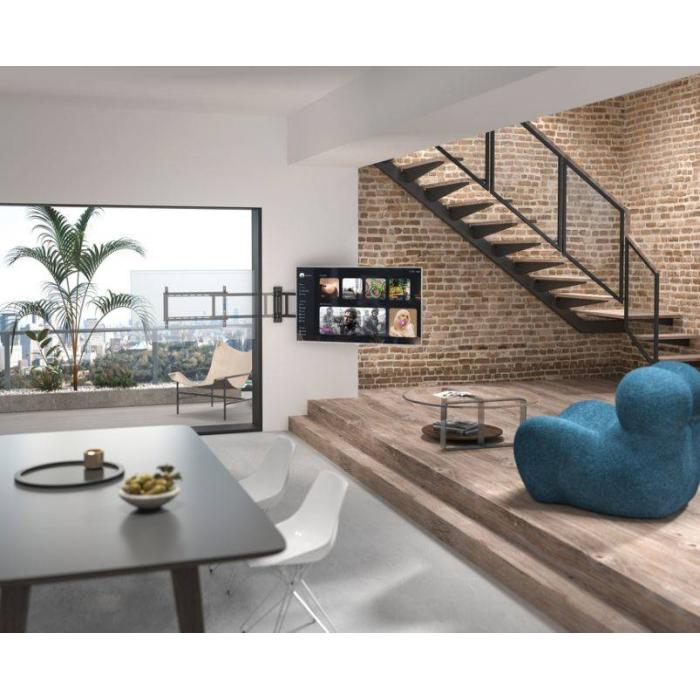

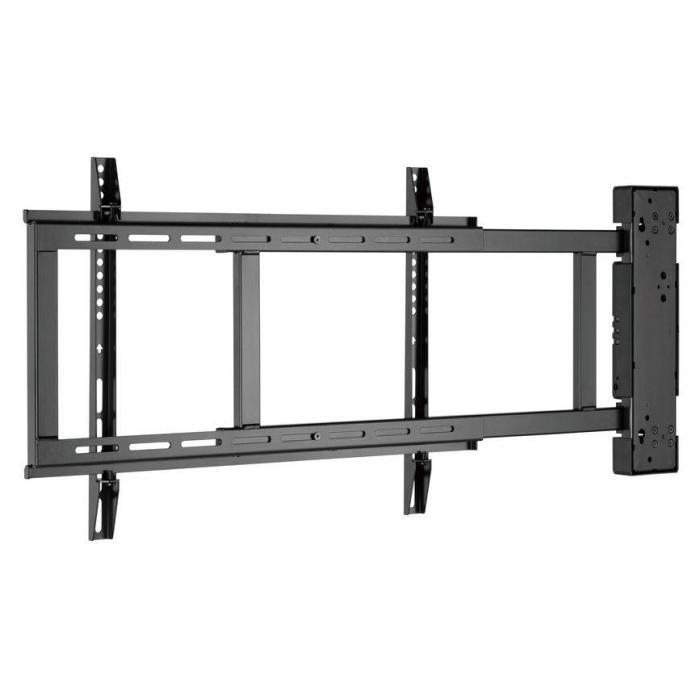

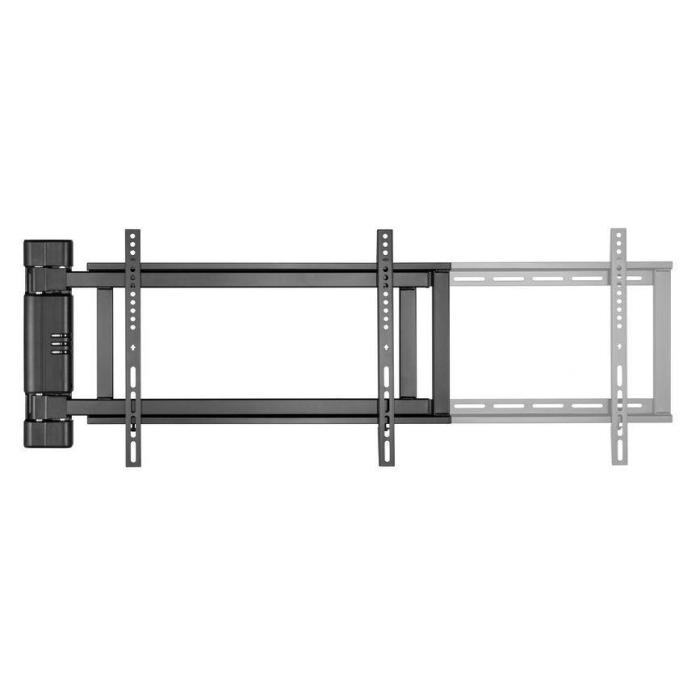

The EQUIP motorized swing mount for 32 to 75 inch TVs attaches to the wall and supports screens from 81.3 cm to 190.5 cm with a maximum weight of 50 kg. Its motorized system offers a tray range of 0 to 170 degrees, so you can turn the television towards different points in the room. The housing combines aluminium, metal and plastic in black, with dimensions of 1220 x 56 x 430 mm (width x height x depth) and a weight of 7.38 kg. The distance to the wall is only 5.6 cm, which keeps the screen very close to the wall when retracted. It is compatible with mounting interfaces from 200 x 200 mm up to 600 x 400 mm. It includes cable management and an anti-collision system to prevent knocks against furniture or obstacles during rotation. It is designed for a single screen and fits installations where you want to change the orientation without touching the mount.
Specifications
Mounting
- Maximum weight capacity: 50 kg
- Minimum screen size: 81.3 cm (32")
- Number of displays supported: 1
- Maximum screen size: 190.5 cm (75")
- Suitable for TV: Yes
- Mounting type: Wall
- Minimum VESA mount: 200 x 200 mm
- Maximum VESA mount: 600 x 400 mm
- Panel mounting interface: 200 x 200, 200 x 300, 200 x 400, 300 x 300, 300 x 200, 300 x 400, 400 x 200, 400 x 400, 400 x 300, 600 x 200, 600 x 300, 600 x 4
- Distance to the wall (max): 5.6 cm
Ergonomics
- Pan range: 0 - 170°
- Cable management: Yes
- Anti-collision: Yes
Design
- Housing material: Aluminium, Metal, Plastic
- Product colour: Black
Weight & dimensions
- Depth: 430 mm
- Height: 56 mm
- Weight: 7.38 kg
- Width: 1220 mm
Packaging data
- Package width: 426 mm
- Package depth: 71 mm
- Package height: 850 mm
- Package weight: 8.98 kg
Packaging content
- Screws included: Yes

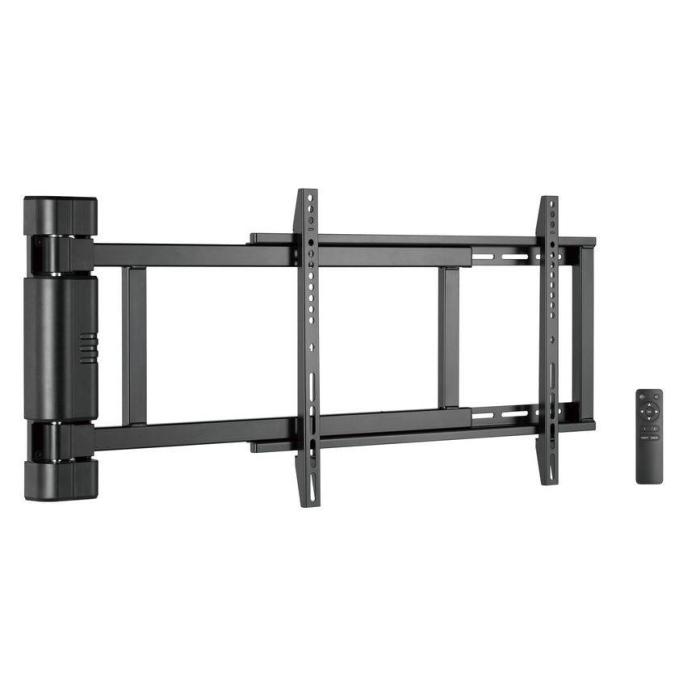

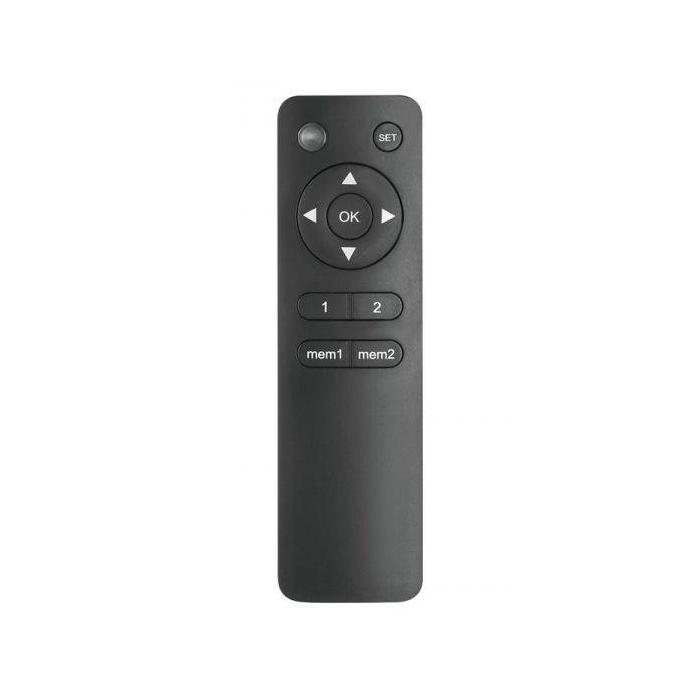

- Remote control included: Yes
Other features
- Compliance certificates: CE, RoHS
Logistics data
- Master (outer) case width: 445 mm
- Master (outer) case length: 165 mm
- Master (outer) case height: 865 mm
- Master (outer) case gross weight: 19.1 kg
- Products per master (outer) case: 2 pc(s)
- Harmonized System (HS) code: 85299097
