Description

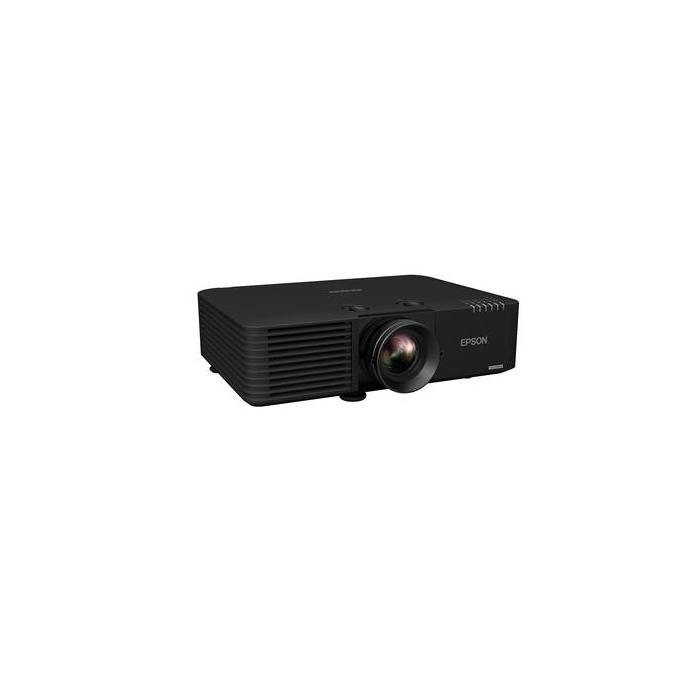

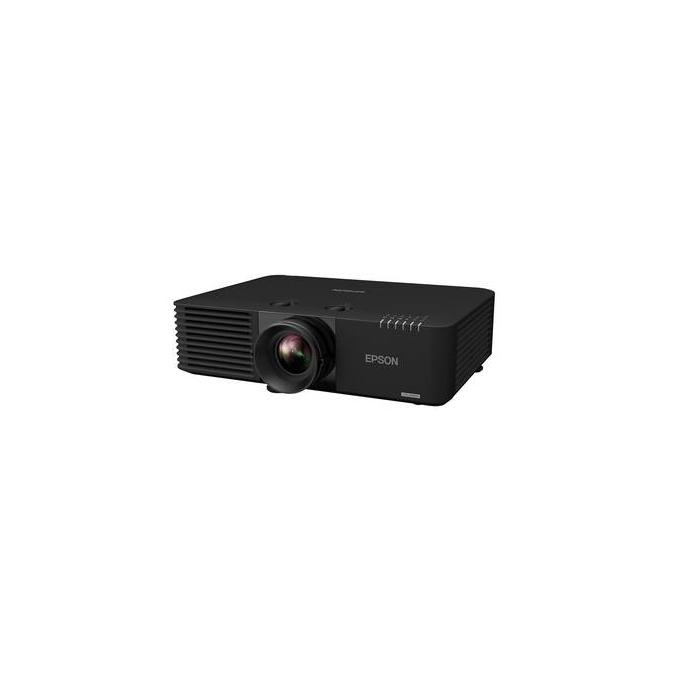

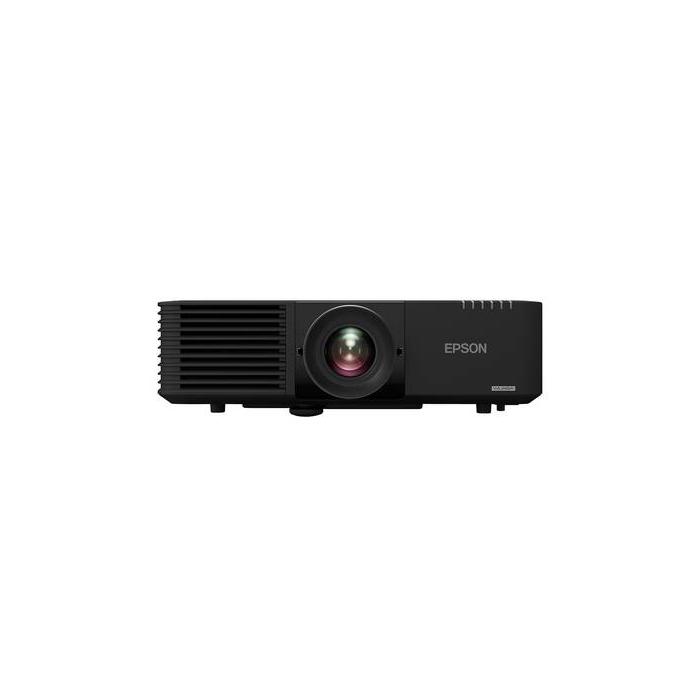

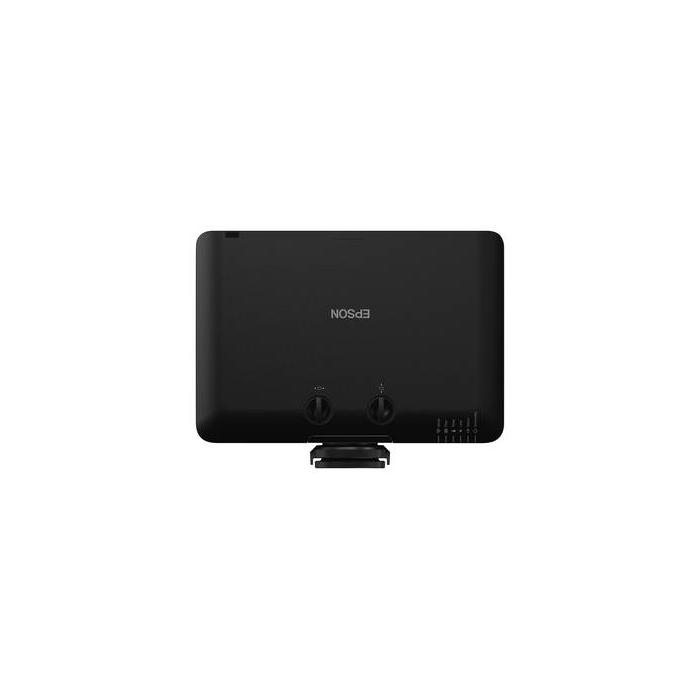

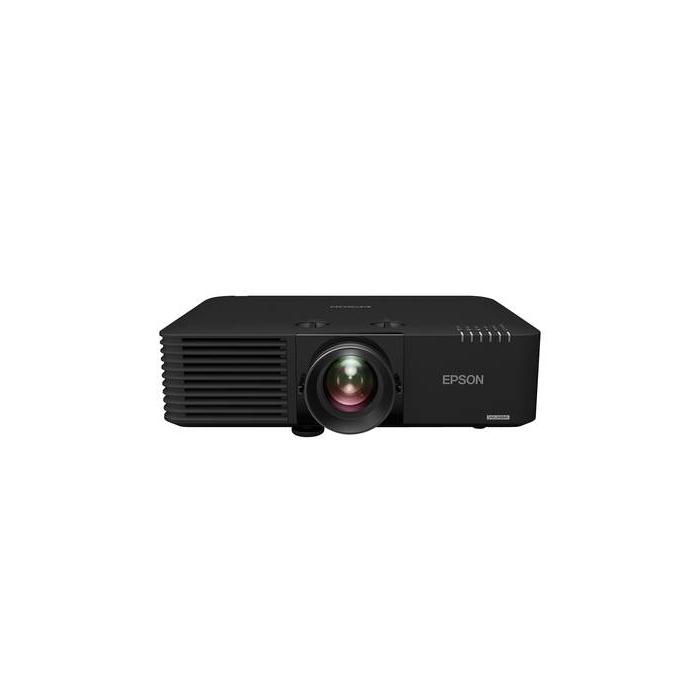

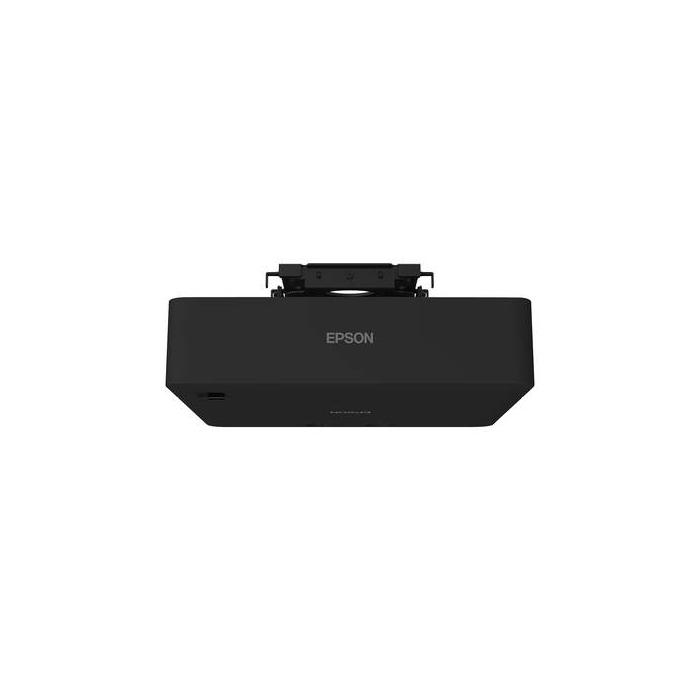

The Epson EB-L735U projector is a standard throw device with 3LCD technology, native WUXGA resolution of 1920x1200 and a native aspect ratio of 16:10. It offers a brightness of 7000 ANSI lumens, which reduces to 4900 ANSI lumens in eco mode, and is capable of reproducing 1.07 billion colours. Its light source is laser type, with a lifespan of 20000 hours that extends up to 30000 hours in eco mode. The projector panel measures 1.7 cm (0.67") and the typical contrast ratio is 2500000:1. It allows projection onto screens of between 1270 and 12700 mm (50 and 500") and supports horizontal and vertical keystone correction from -30 to 30°. The projection distance of the lens ranges from 1.44 to 23.84 m, with a tele range of 2.4 to 23.8 m and a wide range of 1.4 to 14.8 m. It comes in black, with a weight of 8.4 kg and dimensions of 440 x 136 x 339 mm (width x height x depth).
Specifications
Projector
- Smart projector: No
- Screen size compatibility: 1270 - 12700 mm (50 - 500")
- Projection distance: 1.44 - 23.84 m
- Projection distance (wide): 1.4 - 14.8 m
- Projection distance (tele): 2.4 - 23.8 m
- Projector brightness: 7000 ANSI lumens
- Projection technology: 3LCD
- Projector native resolution: WUXGA (1920x1200)
- Contrast ratio (typical): 2500000:1
- Native aspect ratio: 16:10
- Number of colours: 1.07 billion colours
- Projector brightness (economic mode): 4900 ANSI lumens
- Keystone correction, horizontal: -30 - 30°
- Keystone correction, vertical: -30 - 30°
- Matrix size: 1.7 cm (0.67")
Light source
- Light source type: Laser
- Service life of light source: 20000 h
- Service life of light source (economic mode): 30000 h
Lens system
- Focus: Manual
- Focal length range: 20 - 31.8 mm
- Aperture range (F-F): 1.5 - 1.7
- Zoom capability: Yes
- Zoom type: Manual
- Zoom ratio: 1.6:1
- Throw ratio: 1.35 - 2.2:1
- Horizontal lens shift range: -20 - 20%
- Vertical lens shift range: -50 - 50%
Video
- Full HD: Yes
- Video processing: 10 bit
- Video colour modes: Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection

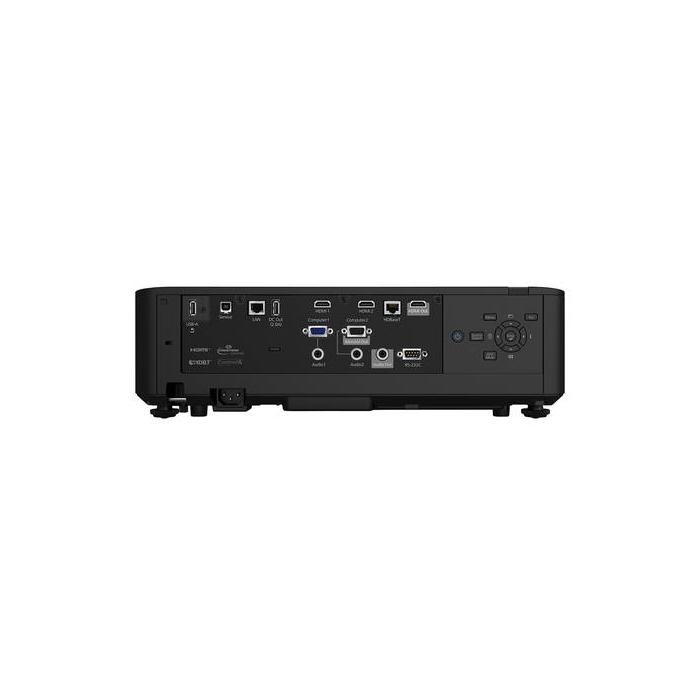

Ports & interfaces
- HDMI connector type: Full-size
- HDBaseT port: Yes
- USB 2.0 ports quantity: 2
- USB 2.0 Type-B ports quantity: 1
- Serial interface type: RS-232C
- PC Audio in: Yes
- PC Audio out: Yes
- VGA (D-Sub) ports quantity: 2
- HDMI ports quantity: 3
- DVI port: No
- AC (power) in: Yes
Network
- Smart TV: No
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Miracast: Yes
Storage
- Card reader integrated: No
Features
- Interactive: No
- Noise level (economic mode): 27 dB
- HDCP: Yes
- Noise level: 38 dB
- Country of origin: Philippines
- Password protection: Yes
Multimedia
- Built-in speaker(s): Yes
- RMS rated power: 10 W
- Number of built-in speakers: 1
Design
- Market positioning: Presentation
- Product type: Standard throw projector
- Product colour: Black

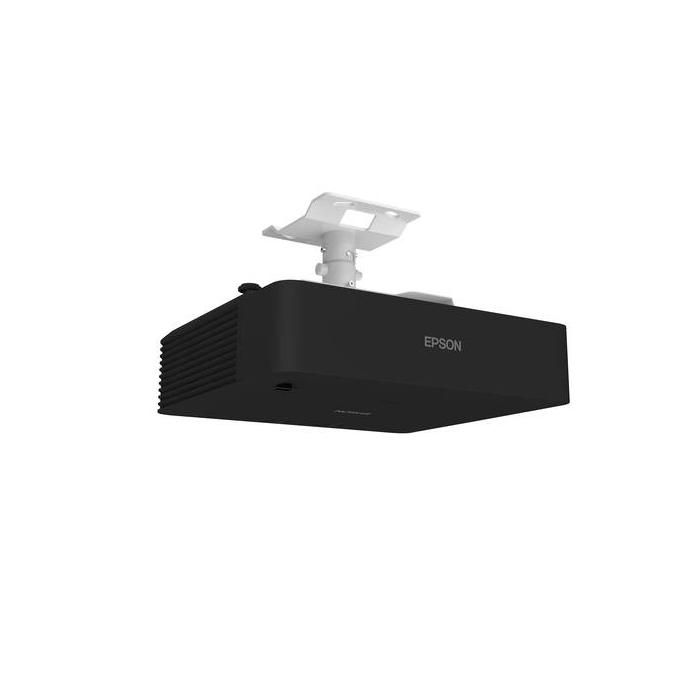

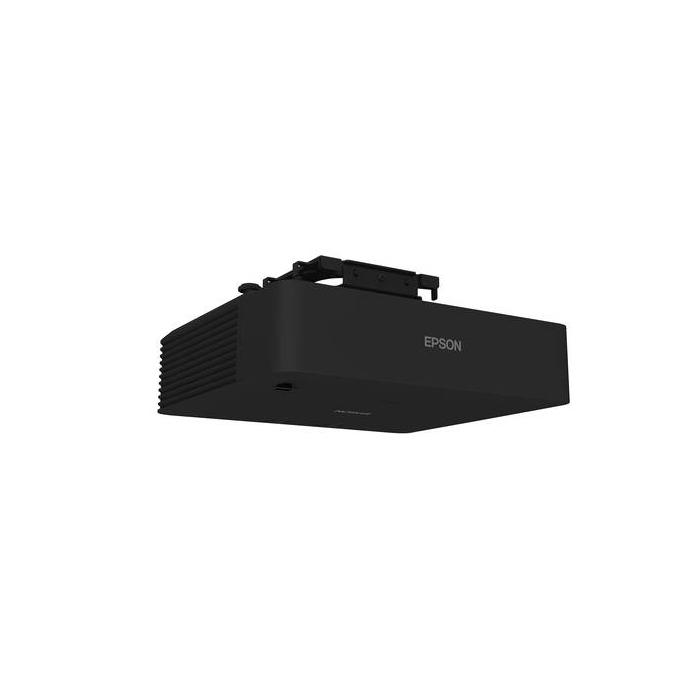

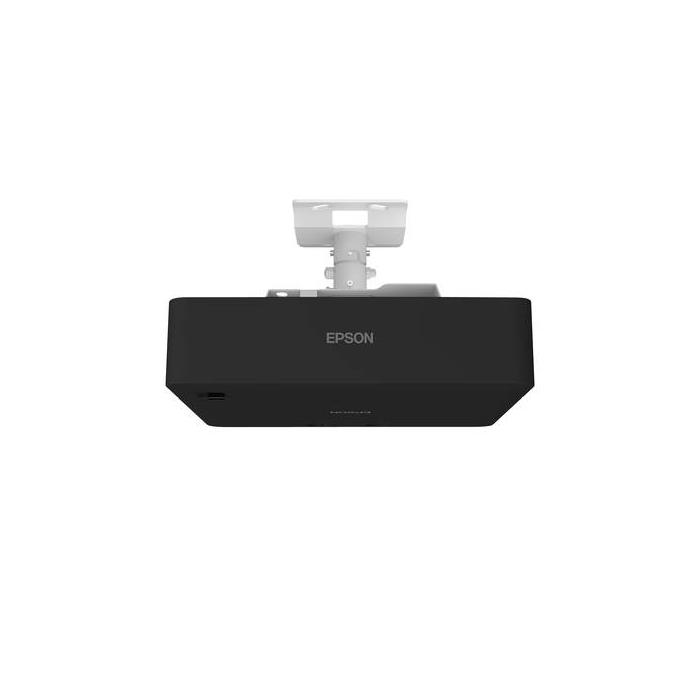

- Placement: Ceiling, Desktop
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Display
- Built-in display: No
Power
- Power source: AC
- Power consumption (typical): 345 W
- Power consumption (standby): 0.3 W
- Power consumption (economy mode): 258 W
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
Software

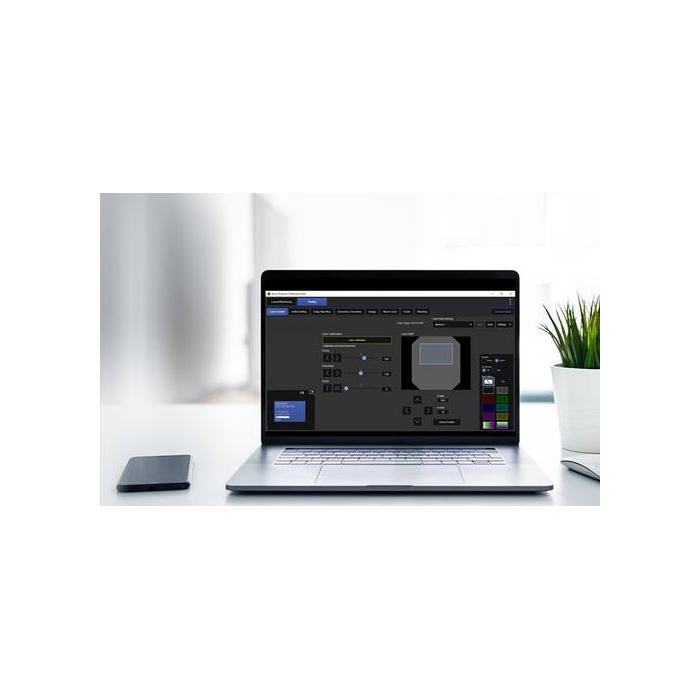

- Software support: via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Operational conditions
- Storage temperature (T-T): -10 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 440 mm
- Depth: 339 mm
- Height: 136 mm
- Weight: 8.4 kg
- Package width: 540 mm
- Package depth: 565 mm
- Package height: 210 mm
- Package weight: 12.3 kg
Packaging content
- Remote control included: Yes
- Batteries included: Yes
- Cables included: AC
- Manual: Yes
- Warranty card: Yes
- WLAN adapter included: Yes
Technical details
- Sustainability certificates: TCO
Logistics data
- Quantity per pack: 1 pc(s)
- Products per pallet: 14 pc(s)
- Pallet gross weight: 0 g
- Products per pallet (UK): 14 pc(s)
- Pallet weight (UK): 0 g
- Harmonized System (HS) code: 85286200
Other features
- Supported network protocols: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
