Description

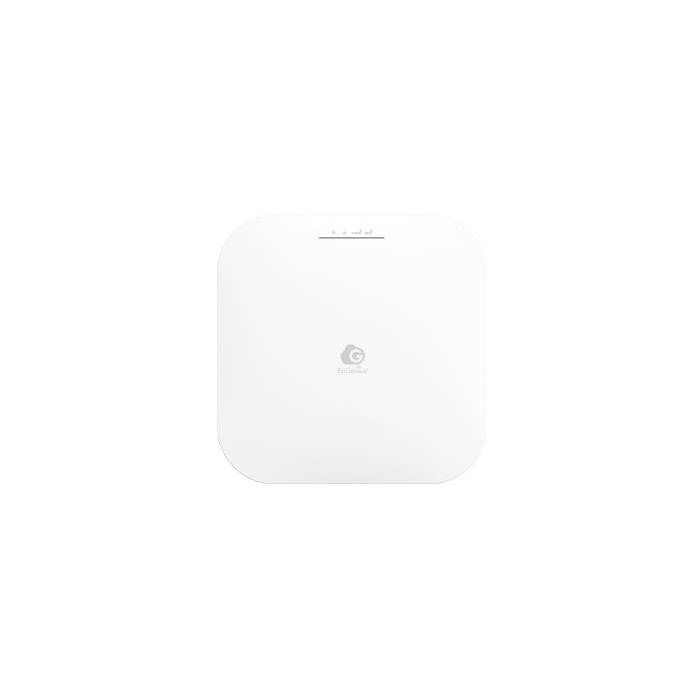

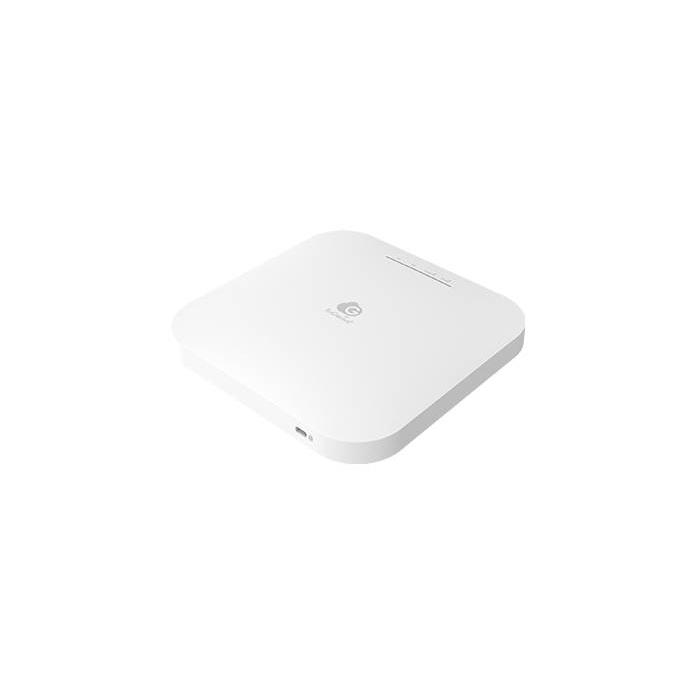

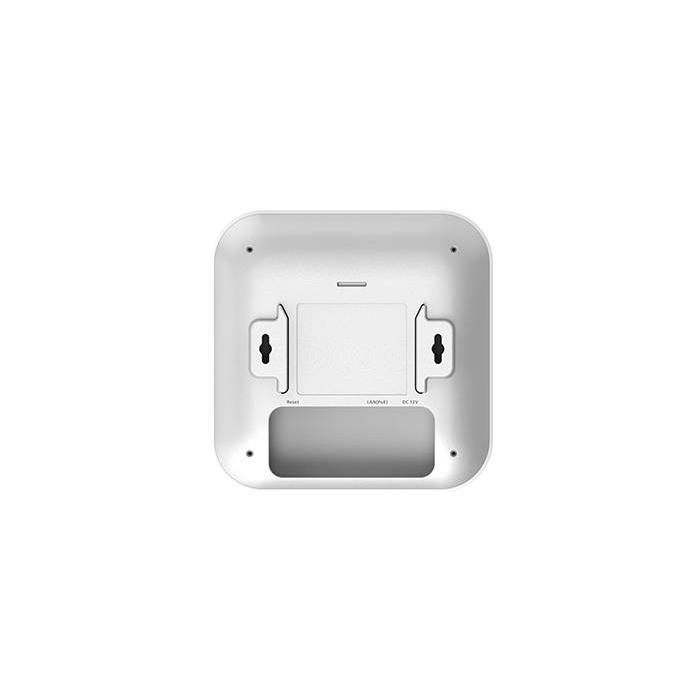

The EnGenius ECW230 wireless access point in white offers Wi-Fi connectivity on the 2.4 GHz bands, with a maximum data transfer speed of 1148 Mbit/s, and 5 GHz, with 2400 Mbit/s. It incorporates MIMO technology with Multi User MIMO support and OFDMA, DSSS and OFDM spread spectrum methods, as well as 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK and QPSK modulations. Its transmission power reaches 23 dBmW and it covers frequency bands from 2.4 to 2.482 GHz and from 5.15 to 5.85 GHz. It integrates virtual LAN functions with Tagged VLAN, VLAN support and QoS quality of service, together with Wi-Fi Multimedia WMM. The Ethernet LAN connection supports speeds of 10, 100 and 1000 Mbit/s, and the device is powered via Power over Ethernet (PoE). Fit AP mode allows mesh network deployment. Its dimensions are 210 x 33.2 x 210 mm (width x height x depth) and its weight is 597 g.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 2400 Mbit/s
- Maximum data transfer rate (2.4 GHz): 1148 Mbit/s
- Maximum data transfer rate (5 GHz): 2400 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IE
- MIMO: Yes
- MIMO type: Multi User MIMO
- Spread spectrum method: OFDMA, DSSS, OFDM
- Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
- Fit AP mode features: Mesh networking
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN
- Quality of Service (QoS) support: Yes
- Transmitting power: 23 dBmW
Security
- Security algorithms: WPA3, 64-bit WEP, 128-bit WEP, 152-bit WEP, SSH, WPA, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK
- MAC address filtering: Yes
- Service Set Identifier (SSID) features: Multiple SSIDs
- Number of SSID supported: 8
Protocols
- Management protocols: SNMP
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- Power consumption (max): 19.5 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Reset button: Yes
- LED indicators: Yes
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antennas quantity: 8
- Antenna gain level (max): 3 dBi
Weight & dimensions
- Width: 210 mm
- Depth: 210 mm
- Height: 33.2 mm
- Weight: 597 g
Packaging content
- Quick start guide: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 80 °C
Logistics data
- Harmonized System (HS) code: 85176990
