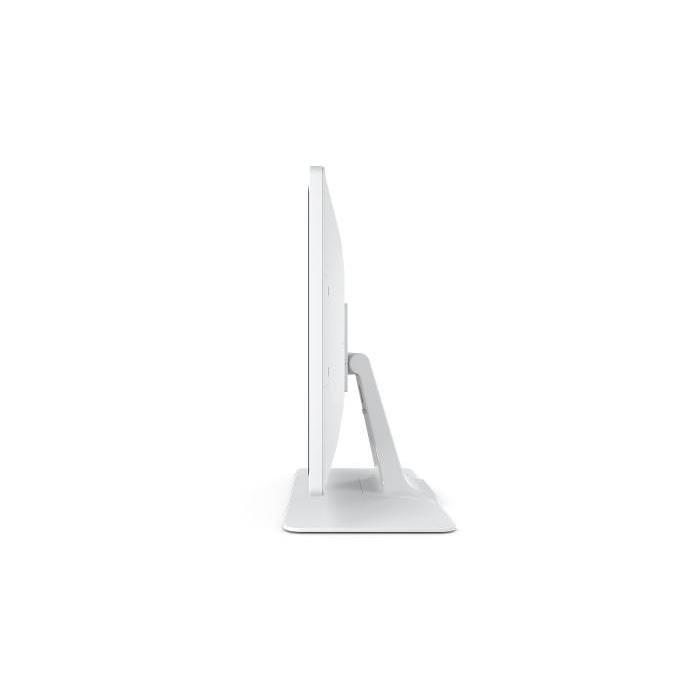

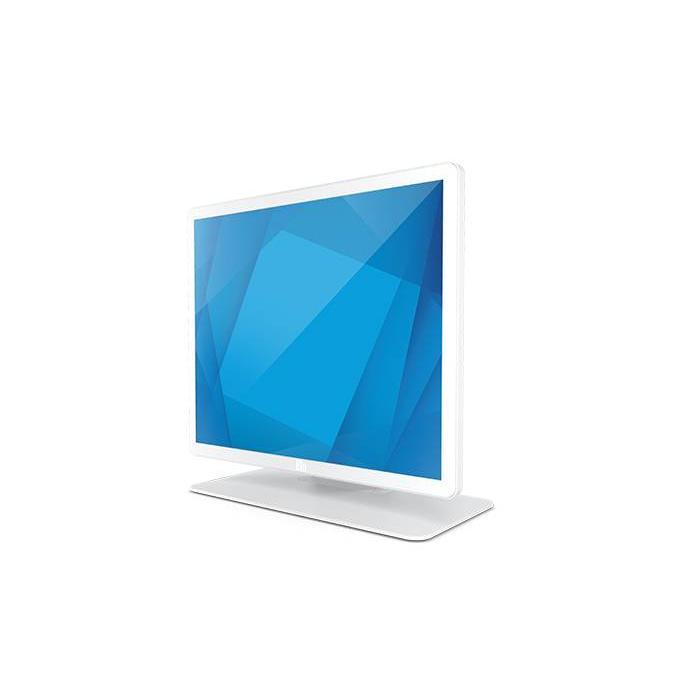

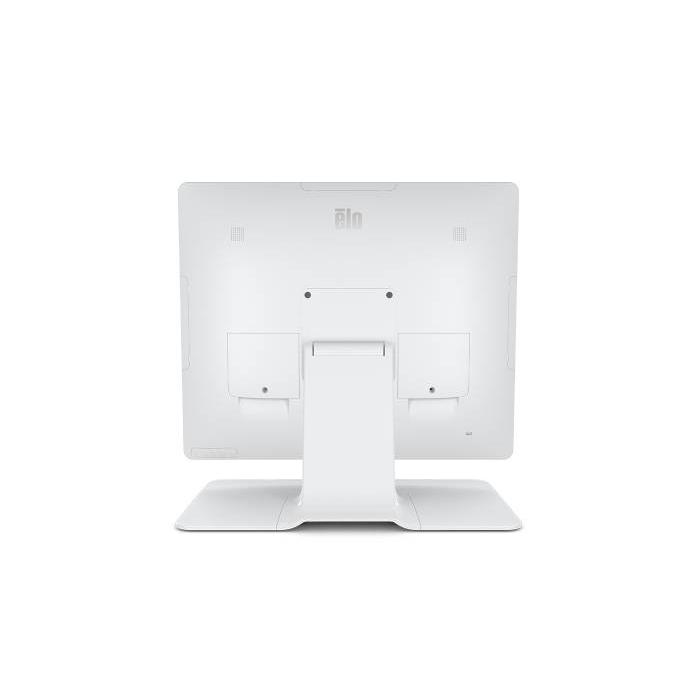

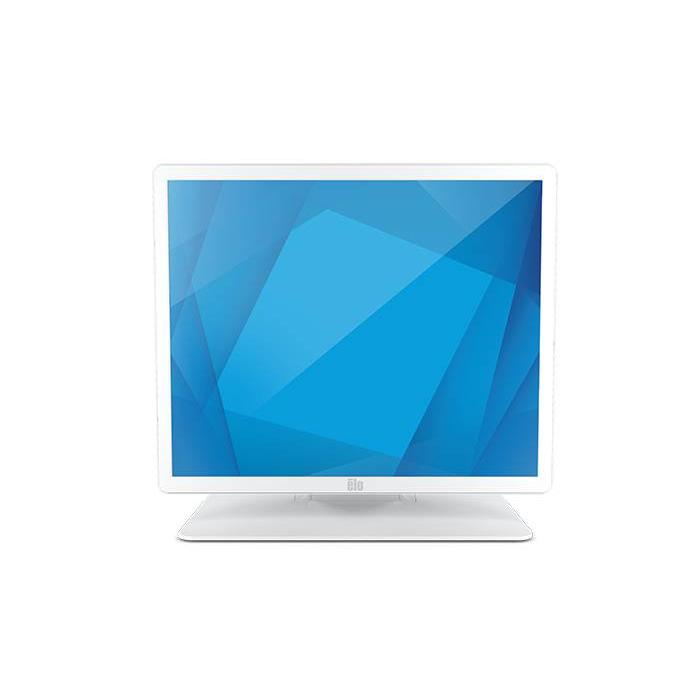

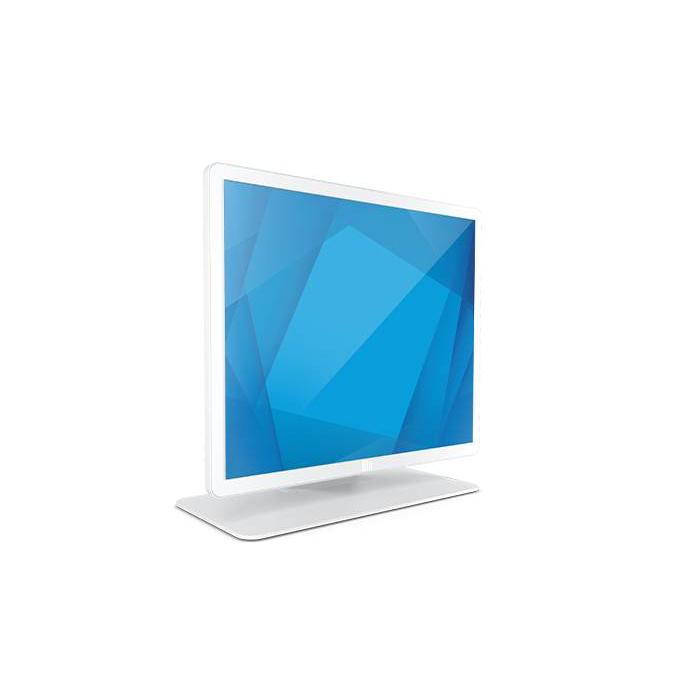

Elo Touch Solution 1903LM 48.3 cm (19'') 1280 x 1024 pixels Multi-touch White
Elo Touch Solution 1903LM, 48.3 cm (19"), 225 cd/m², SVGA, LCD, 5:4, 1280 x 1024 pixels.
More infoBrand: ELO TOUCH SOLUTION
1,002,00 €Stock available: 0 units.
Unavailable
SKU:
113824
PRC:
331471
EAN:
843173135434
PN:
e658586
Description
The Elo Touch Solution 1903LM touchscreen monitor, in white, offers a screen diagonal of 48.3 cm (19") with LCD technology and TFT screen type. Its screen resolution is 1280 x 1024 pixels with HD SVGA type and a native aspect ratio of 5:4, making it suitable for applications requiring a more square format. The screen reaches a brightness of 225 cd/m² and a typical contrast ratio of 1000:1, with a visible area of 374.78 x 299.83 mm. The multi-touch functionality allows direct interaction on the panel. It incorporates a wide viewing angle of 178° both horizontally and vertically, which facilitates reading from different positions. The high frequency rate is 70 Hz and it reproduces 16.78 million colours to display images in detail. Its digital frequencies, horizontal from 30 to 82 kHz and vertical from 50 to 75 Hz, favour smooth adaptation to different video signals.
Specifications
Display
- Display diagonal: 48.3 cm (19")
- Display resolution: 1280 x 1024 pixels
- Panel type: TFT
- HD type: SVGA
- Display technology: LCD
- High frequency rate: 70 Hz
- Native aspect ratio: 5:4
- Anti-glare screen: Yes
- Response time: 14 ms
- Display brightness: 225 cd/m²
- Contrast ratio (typical): 1000:1
- Viewing angle, horizontal: 178°
- Viewing angle, vertical: 178°
- Display viewable area (HxV): 374.78 x 299.83 mm
- Digital horizontal frequency: 30 - 82 kHz
- Digital vertical frequency: 50 - 75 Hz
- Display diagonal (metric): 48 cm
- Viewable size, horizontal: 37.5 cm
- Viewable size, vertical: 30 cm
- Display number of colours: 16.78 million colours
Design
- Product colour: White
- International Protection (IP) code: IP54
Performance
- Touch technology: Multi-touch
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 10
- Built-in speaker(s): Yes
- RMS rated power: 2 W
- Number of speakers: 2
- Built-in camera: No
- Built-in microphone: No
- On Screen Display (OSD): Yes
- Number of OSD languages: 8
- On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
- Mean time between failures (MTBF): 50000 h
Ports & interfaces
- HDMI: Yes
- HDMI ports quantity: 1
- VGA (D-Sub) ports quantity: 1
Ergonomics
- Wall mountable: Yes
- LED indicators: Power
- VESA mounting: Yes
Power
- Energy efficiency class (SDR): F
- Energy consumption (SDR) per 1000 hours: 14 kWh
- Power supply type: DC
- Power consumption (typical): 14.53 W
- Power consumption (max): 16.36 W
- Power consumption (standby): 0.79 W
- Power consumption (off): 0.37 W
- Energy efficiency scale: A to G
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 95%
Sustainability
- Sustainability certificates: RoHS
Weight & dimensions
- Weight (without stand): 4.3 kg
- Width (with stand): 429.6 mm
- Depth (with stand): 193.4 mm
- Height (with stand): 429.6 mm
- Weight (with stand): 6.3 kg
Packaging data
- Package width: 527 mm
- Package depth: 260 mm
- Package height: 482 mm
- Package weight: 9.8 kg
Packaging content
- Cables included: HDMI,USB,VGA
