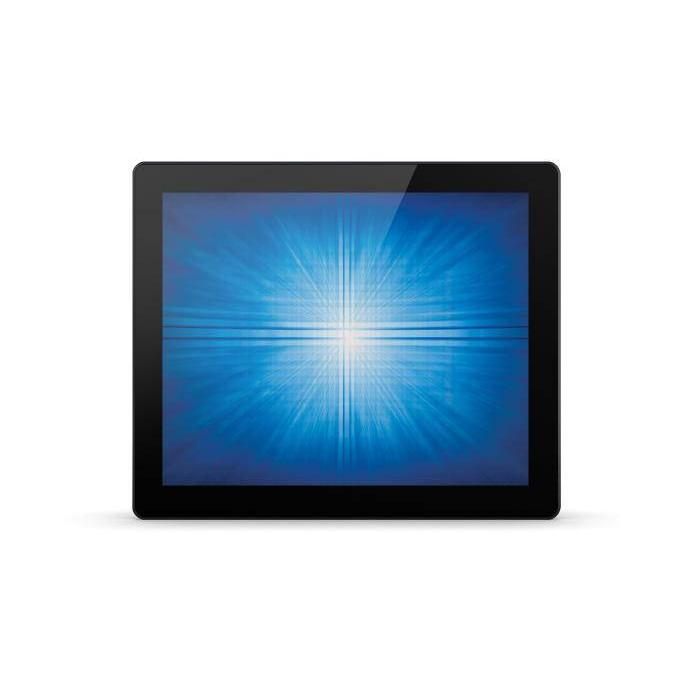

Elo Touch Solution 1790L 17'' 1280 x 1024pixels Single-touch Kiosk Black touch screen monitor
Elo Touch Solution 1790L, 43.2 cm (17"), 5 ms, 225 cd/m², LCD/TFT, 800:1, Surface acoustic wave.
More infoBrand: ELO TOUCH SOLUTION
594,00 €Stock available: 0 units.
Unavailable
SKU:
78588
PRC:
151805
EAN:
815335025822
PN:
E326942
Description
Elo Touch Solution 43.2 cm (17 inch) touchscreen monitor with a resolution of 1280 x 1024 pixels and a 5:4 aspect ratio, presented in black. Its LCD/TFT screen uses surface acoustic wave touchscreen technology and LED backlighting, with a brightness of 225 cd/m² and a typical contrast ratio of 800:1. It offers a response time of 5 ms and displays 16.78 million colours, with viewing angles of 170° horizontally and 160° vertically. The horizontal digital frequency ranges from 30 to 82 kHz, while the vertical digital frequency is between 50 and 75 Hz. Weighing 3.6 kg, this kiosk monitor is designed to be integrated into environments where reliable touch interaction and sharp visualisation are required.
Specifications
Display
- Display diagonal: 43.2 cm (17")
- Display resolution: 1280 x 1024 pixels
- Display technology: LCD/TFT
- Viewing angle, horizontal: 170°
- Aspect ratio: 5:4
- Display viewable area (HxV): 337.92 x 270.336 mm
- Viewing angle, vertical: 160°
- Display number of colours: 16.78 million colours
- LED backlight: Yes
- Full HD: No
- Backlight type: LED
- Digital vertical frequency: 50 - 75 Hz
- Touchscreen technology: Surface acoustic wave
- Response time: 5 ms
- Display brightness: 225 cd/m²
- Contrast ratio (typical): 800:1
- Digital horizontal frequency: 30 - 82 kHz
- Horizontal scan range: 30 - 82 kHz
- Vertical scan range: 50 - 75 Hz
Design
- Colour of product: Black
Performance
- Touch technology: Single-touch
- Touchscreen type: Kiosk
- Built-in camera: No
- Mean time between failures (MTBF): 50000 h
- On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ports & interfaces
- USB 2.0 ports quantity: 1
- DisplayPorts quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
Ergonomics
- Wall mountable: Yes
- VESA mounting: Yes
- VESA mounting interfaces: 75 x 75,100 x 100 mm
Power
- Power supply type: DC
- Power consumption (typical): 17.8 W
- Power consumption (off): 0.5 W
Operational conditions
- Storage relative humidity (H-H): 10 - 95%
- Operating relative humidity (H-H): 20 - 80%
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 0 - 40 °C
Certificates
- RoHS compliance: Yes
Weight & dimensions
- Weight: 3.6 kg
Packaging data
- Package width: 476 mm
- Package depth: 183 mm
- Package height: 418 mm
- Package weight: 5.6 kg
