Elo Touch Solution 17-inch (5:4) EloPOS All-in-One 2.1 GHz i5-8500T 43.2 cm (17'') 1280 x 1024 pixels Touchscreen Black
Elo Touch Solution 17-inch (5:4) EloPOS, 43.2 cm (17"), 1280 x 1024 pixels, LED, Projected capacitive system, 1000:1, 170°.
More infoBrand: ELO TOUCH SOLUTION
1,264,00 €Stock available: 0 units.
Unavailable
SKU:
89210
PRC:
335488
EAN:
843173130941
PN:
e484700
Description

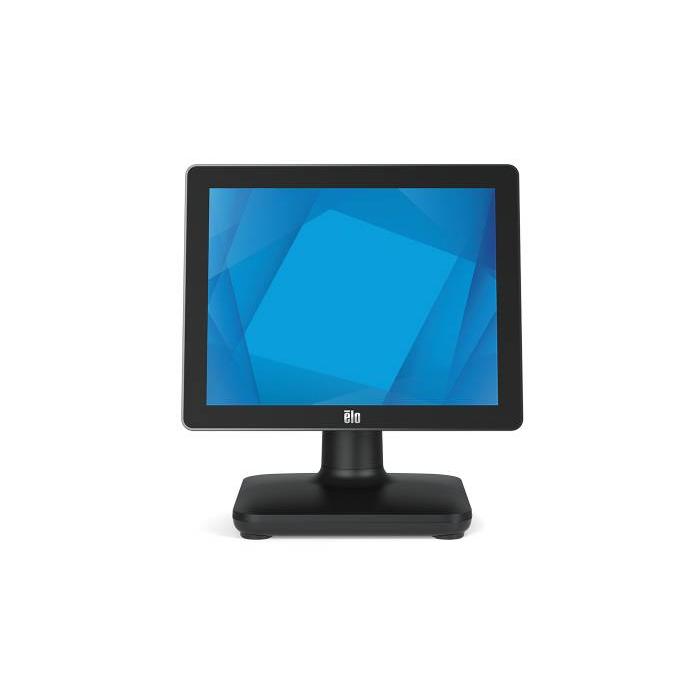

The EloPOS from Elo Touch Solution is a black all-in-one point-of-sale terminal that integrates screen and processor in a single unit. Its 43.2 cm (17-inch) touchscreen offers a resolution of 1280 x 1024 pixels with a 5:4 aspect ratio and LED technology, with an effective viewing area of 337.9 x 270.3 mm. The panel uses a projected capacitive system, with a response time of 5 ms, a contrast ratio of 1000:1 and viewing angles of 170° horizontally and 160° vertically. The terminal reproduces 16.78 million colours to display sales applications clearly. In terms of performance, it mounts an 8th generation Intel Core i5-8500T processor with 6 cores, Intel Q370 chipset and a transfer rate of 8 GT/s. The unit weighs 4.8 kg and its dimensions are 393.5 x 83.3 x 325.9 mm in width, height and depth.
Specifications
Display
- Display diagonal: 43.2 cm (17")
- Display resolution: 1280 x 1024 pixels
- Touchscreen: Yes
- Display type: LED
- Touchscreen technology: Projected capacitive system
- Contrast ratio (typical): 1000:1
- Viewing angle, horizontal: 170°
- Viewing angle, vertical: 160°
- Response time: 5 ms
- Effective viewing area: 337.9 x 270.3 mm
- Aspect ratio: 5:4
- Display number of colours: 16.78 million colours
Processor
- Processor frequency: 2.1 GHz
- Processor manufacturer: Intel
- Processor family: 8th gen Intel® Core™ i5
- Processor model: i5-8500T
- Processor cores: 6
- Processor cache: 9 MB
- Processor threads: 6
- System bus rate: 8 GT/s
- Motherboard chipset: Intel Q370
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4-SDRAM
- Maximum internal memory: 32 GB
- Number of memory slots: 2
- Memory slots type: SO-DIMM
- Memory clock speed: 2400 MHz
Storage
- Total storage capacity: 128 GB
- Storage media: SSD
- Number of storage drives supported: 1
- SSD capacity: 128 GB
- SSD interface: Serial ATA
- SSD form factor: M.2
Graphics
- Graphics adapter manufacturer: Intel
- Graphics adapter: UHD Graphics 630
Features
- Certification: UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC
Multimedia
- Built-in speaker(s): Yes
- Number of speakers: 2
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 1000 Mbit/s
- Bluetooth: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Serial ports quantity: 2
Design
- Chassis type: All-in-One
- Product colour: Black
Performance
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: No
Power
- AC input voltage: 100-240 V
- AC input frequency: 50-60 Hz
- Power supply: 180 W
- Power consumption (typical): 76 W
Operational conditions
- Operating relative humidity (H-H): 0 - 35%
- Operating temperature (T-T): -20 - 60 °C
- Relative humidity: 20 - 80%
- Storage relative humidity (H-H): 5 - 95%
Ergonomics
- Wall mountable: Yes
- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
- Mean time between failures (MTBF): 50000 h
Weight & dimensions
- Width: 393.5 mm
- Depth: 325.9 mm
- Height: 83.3 mm
- Width (with stand): 393.5 mm
- Depth (with stand): 325.9 mm
- Height (with stand): 221.3 mm
- Weight: 4.8 kg
- Weight (with stand): 6.7 kg
Packaging data
- Package width: 476 mm
- Package depth: 197 mm
- Package height: 400 mm
- Package weight: 6.8 kg
Security
- Cable lock slot: Yes
- Cable lock slot type: Kensington
