Description

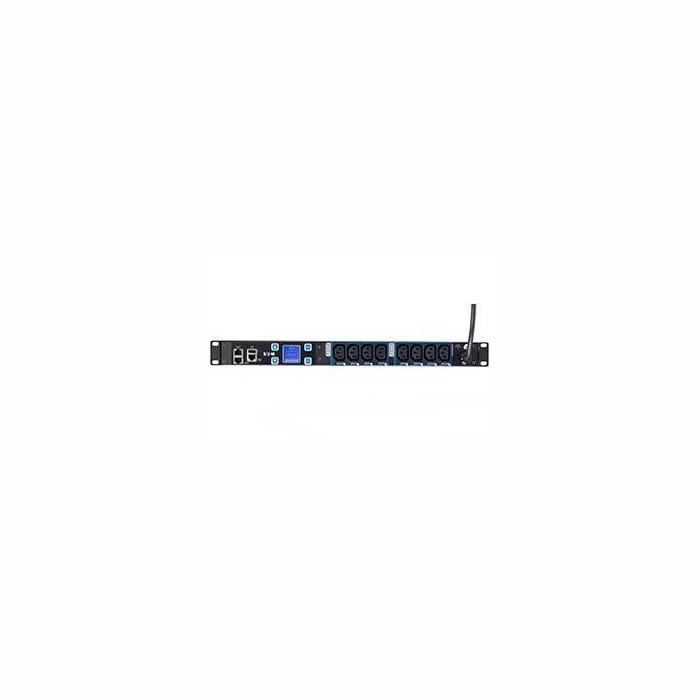

The Eaton EMIH02 is a regulated power distribution unit (PDU) in a 1U horizontal rack-mount format, finished in black and designed for single-phase installations. It features 8 AC outlets of type C13 and an input via an IEC-320-C20 connector, along with a 3-metre cable. It incorporates an LCD screen for current monitoring and an RJ-45 Ethernet port that enables remote management via SNMP and Telnet protocols. This PDU from EATON, included in the UPS category, offers an electrical distribution solution with basic supervision for server racks.
Specifications
Design
- PDU types: Metered
- Type: Single-phase
- Form factor: Rackmount
- Rack mounting: Yes
- Rack capacity: 1U
- Mounting: Horizontal
- Product colour: Black
- Cable colour: Black
- Display: LCD
Ports & interfaces
- AC outlets quantity: 8 AC outlet(s)
- Power plug: C14 coupler
- AC outlet types: C13 coupler
- Ethernet LAN (RJ-45) ports: 1
- Input connection type: IEC-320-C20
- Output connections: 8 x C13
Features
- Cable length: 3 m
Management features
- Monitoring: Current
- Supported network protocols: HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS
- Management protocols: SNMP, Telnet
- Firmware upgradeable: Yes
- Firmware upgradeable via: Network, USB
Power
- Nominal input voltage: 230 V
- AC input frequency: 50 Hz
- Maximum current: 10 A
- Nominal output voltage: 230 V
- Maximum input current per phase: 10 A
- Maximum power: 2300 W
Certificates
- Compliance certificates: RoHS
- Certification: CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am
Operational conditions
- Operating temperature (T-T): 0 - 60 °C
Weight & dimensions
- Width: 44.5 mm
- Depth: 482.6 mm
- Height: 203 mm
- Weight: 2.6 kg
Packaging content
- Cables included: LAN (RJ-45)
- Rack mount kit: Yes
Packaging data
- Package weight: 3.8 kg
