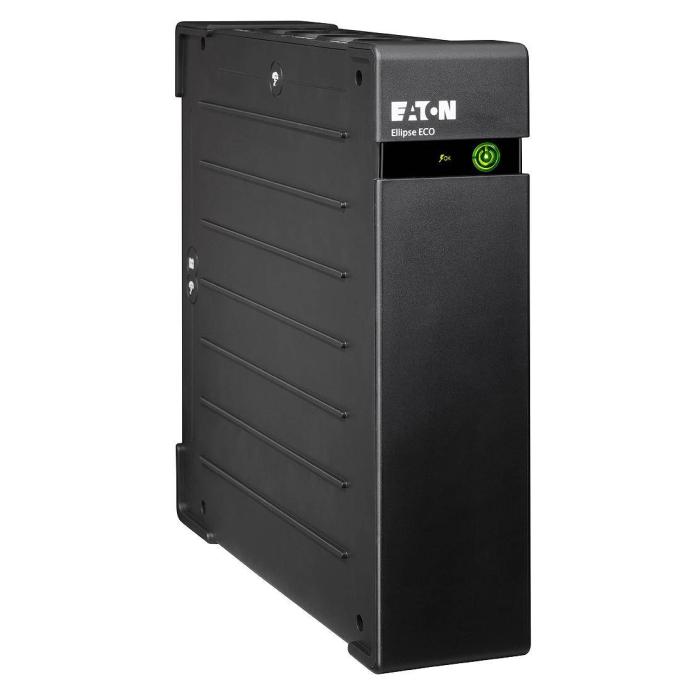

Eaton Ellipse ECO 1600 USB IEC 1600VA 8AC outlet(s) Rackmount Black uninterruptible power supply (UPS)
Eaton Ellipse ECO 1600 USB IEC, 1600 VA, 1000 W, 161 V, 284 V, 220 V, 240 V.
More infoBrand: EATON
335.00 €Stock available: 0 units.
Unavailable
SKU:
112420
PRC:
65648
EAN:
3553340621635
PN:
EL1600USBIEC
Description
The Eaton Ellipse ECO 1600 USB IEC UPS is a black uninterruptible power supply with rack or rackmount mounting, with dimensions of 81 x 305 x 312 mm (width x height x depth) and a weight of 7.8 kg. It offers an output power capacity of 1600 VA and an output power of 1000 W, with an output operating voltage of between 220 and 240 V and an input operating voltage of between 161 and 284 V at a frequency of 50/60. It incorporates eight AC outlets with C13 output type, a C14 connector, a USB 2.0 port, an Ethernet LAN RJ-45 port and an RJ-11 modem port. Its Sealed Lead Acid (VRLA) technology battery provides a typical backup time at half load of 11 minutes and features an audible and LED battery replacement alarm. It has cold start and emergency power off.
Specifications
Power
- Output power capacity: 1600 VA
- Output power: 1000 W
- Input operation voltage (min): 161 V
- Input operation voltage (max): 284 V
- Output operation voltage (min): 220 V
- Output operation voltage (max): 240 V
- Power supply input frequency: 50/60
- Emergency Power Off (EPO): Yes
Ports & interfaces
- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB 2.0 ports quantity: 1
- Modem (RJ-11) ports: 1
- Ethernet LAN (RJ-45) ports: 1
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Typical backup time at half load: 11 min
- Battery replacement alarms: Audible, LED
- Automatic battery test: Yes
- Hot-swap battery: Yes
- Cold start: Yes
Design
- Form factor: Rackmount
- Rack capacity: 2U
- Colour of product: Black
Performance
- Surge protection: Yes
- Surge protection features: Fax, Modem, Network, Telephone
- LED indicators: Yes
- Audible alarm(s): Yes
Certificates
- Safety: IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
Weight & dimensions
- Width: 81 mm
- Depth: 312 mm
- Height: 305 mm
- Weight: 7.8 kg
Packaging content
- Bundled software: Eaton Intelligent Power
Other features
- Input connection type: IEC
- Overload protection: Yes
- Compatible operating systems: Windows 7/Vista/XP Mac OS X Linux
- Mac compatibility: Yes
- Nominal input voltage: 230
- Nominal output voltage: 220-240
