Description

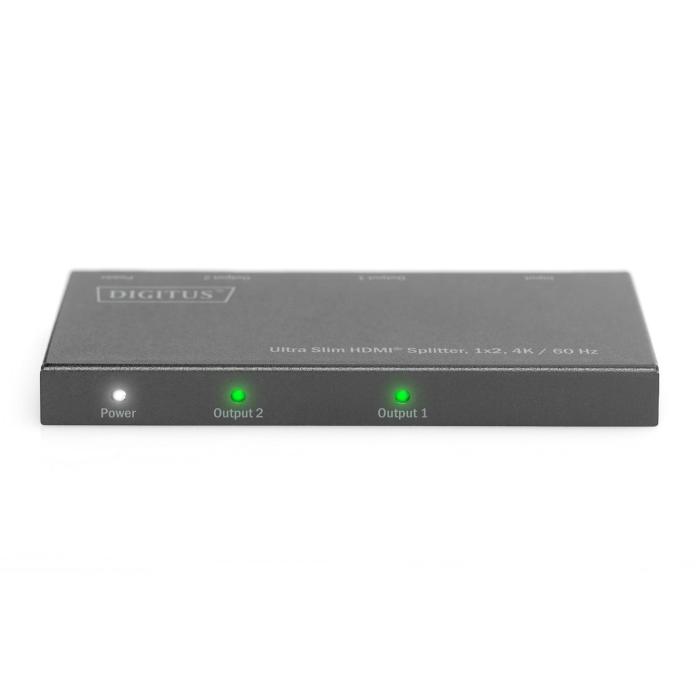

The DIGITUS HDMI Ultra Slim 1x2 video splitter is designed for the black model, featuring a metal housing and a slim profile that facilitates integration into installations with limited space. This device duplicates an input HDMI signal to two simultaneous outputs, supporting resolutions up to 4096 x 2160 pixels at 60 Hz with a colour depth of 36 bit and compatibility with HDCP and 3D content. Its HDMI 1.4 version and Plug and Play feature allow immediate connection without any additional setup, while power is supplied via a USB port at 5 V and 0.4 A, including LED indicators that show operating status.
Specifications
Ports & interfaces
- Video port type: HDMI
- Video out: HDMI
- HDMI version: 1.4
- Video ports quantity: 2
Features
- Product colour: Black
- Housing material: Metal
- Maximum resolution: 4096 x 2160 pixels
- HD type: 4K Ultra HD
- 3D: Yes
- Colour depth: 36 bit
- Maximum refresh rate: 60 Hz
- HDCP: Yes
- Plug and Play: Yes
- LED indicators: Yes
- Certification: CE
Power
- AC input voltage: 5 V
- Input current: 0.4 A
- Power consumption (typical): 2 W
- USB powered: Yes
Weight & dimensions
- Width: 83 mm
- Depth: 40 mm
- Height: 9 mm
- Weight: 60 g
Packaging data
- Package width: 150 mm
- Package depth: 110 mm
- Package height: 25 mm
- Package weight: 300 g
- Package volume: 412.5 cm³
Packaging content
- Manual: Yes
- Cables included: Micro-USB
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -10 - 80 °C
- Operating relative humidity (H-H): 10 - 85%
Technical details
- Connector 1: HDMI
Logistics data
- Harmonized System (HS) code: 85176990
- UK Trade Tariff code: 85437090
- Master (outer) case width: 520 mm
- Master (outer) case length: 320 mm
- Master (outer) case height: 175 mm
- Master (outer) case gross weight: 6 kg
- Master (outer) case volume: 29120 cm³
- Products per master (outer) case: 20 pc(s)
- Country of origin: China
