Description

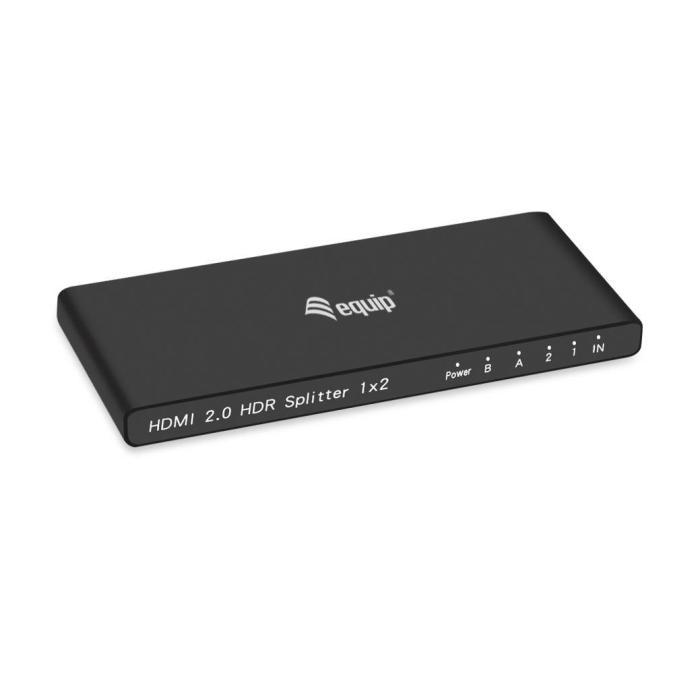

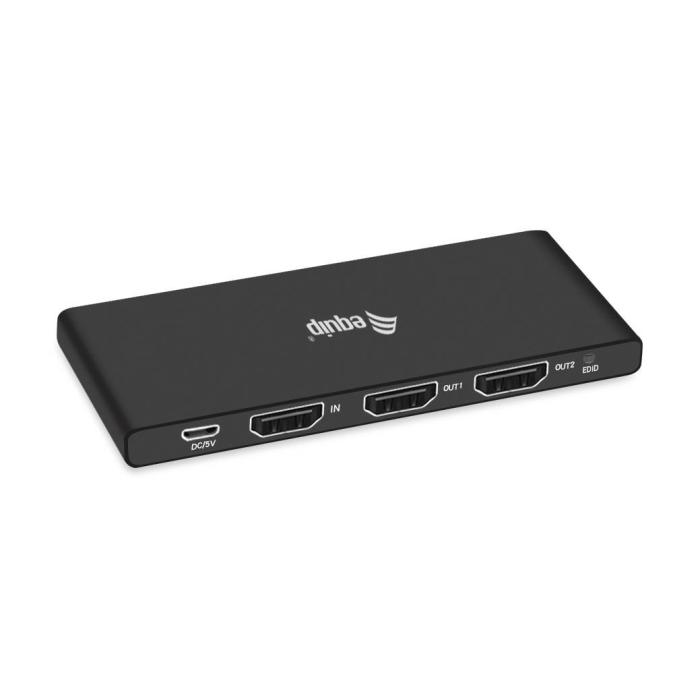

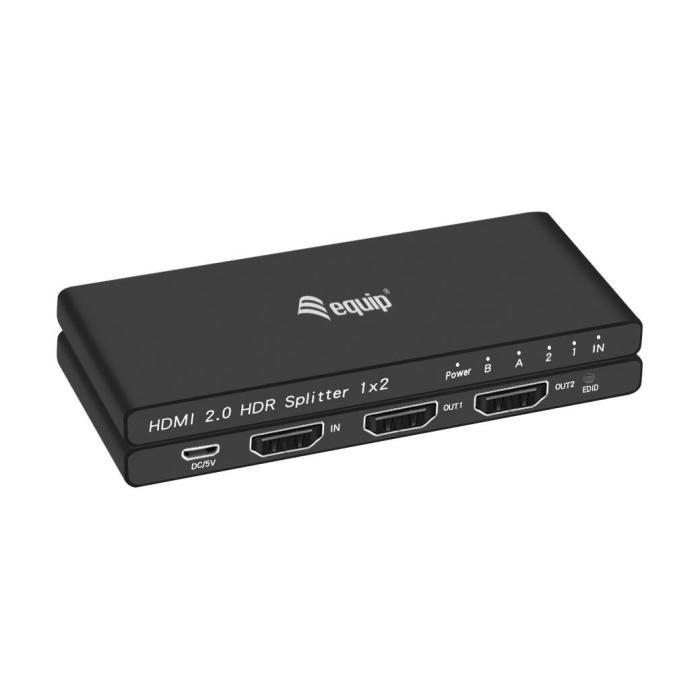

Equip 332716 video splitter with 2x HDMI output that distributes the signal to two compatible screens. Its black colour and aluminium casing give it a sober and resistant appearance to place next to the equipment. With dimensions of 4.2 x 12.5 x 0.95 mm and a weight of 72 g, it takes up very little space on the desk or behind the television. It incorporates three video ports, one input and two output, with HDMI port type and HDMI 2.0 version. It reaches a maximum resolution of 3840 x 2160 pixels, compatible with 4K Ultra HD content, and supports up to two screens with a colour depth of 32 bit. The 3D function and HDCP version 2.2 protection allow protected content to be played back without issues. Its DC input plug supports an input current of 1 A to power the device. The LED indicators show the operating status of each connection.
Specifications
Ports & interfaces
- Video port type: HDMI
- Video out: 2x HDMI
- HDMI version: 2.0
- Video ports quantity: 3
- DC-in jack: Yes
Features
- Product colour: Black
- Housing material: Aluminium
- Maximum resolution: 3840 x 2160 pixels
- HD type: 4K Ultra HD
- 3D: Yes
- Colour depth: 32 bit
- HDCP version: 2.2
- HDCP: Yes
- Plug and Play: Yes
- LED indicators: Yes
- Number of displays supported: 2
- Certification: CE & RoHS
Power
- Input current: 1 A
Weight & dimensions
- Width: 4.2 mm
- Depth: 0.95 mm
- Height: 12.5 mm
- Weight: 72 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 8 mm
- Package depth: 4 mm
- Package height: 13 mm
- Package weight: 168 g
- Package type: Box
Packaging content
- Manual: Yes
- AC adapter included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 390 mm
- Master (outer) case length: 280 mm
- Master (outer) case height: 560 mm
- Master (outer) case gross weight: 17.6 kg
- Products per master (outer) case: 100 pc(s)
- Country of origin: China
