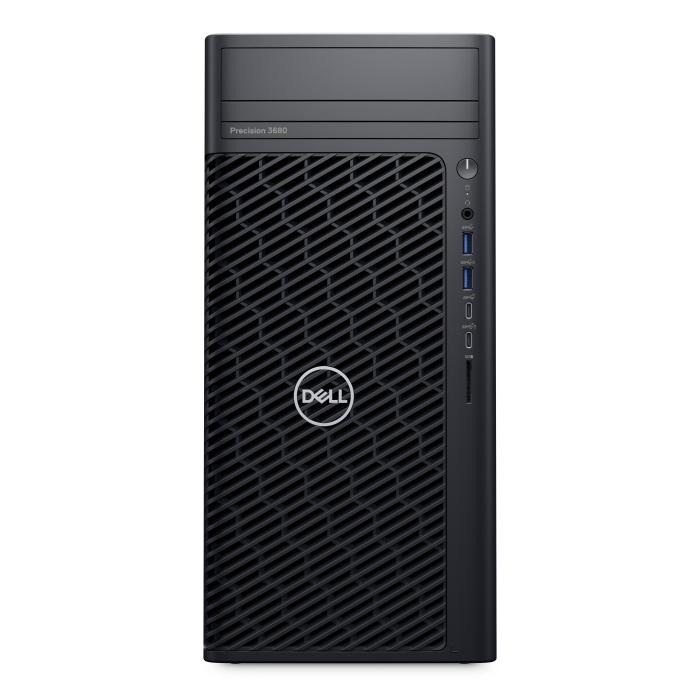

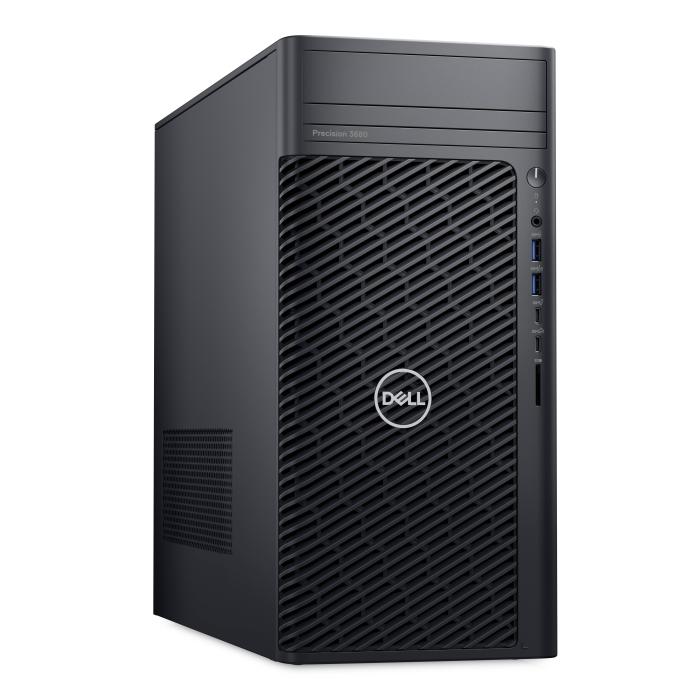

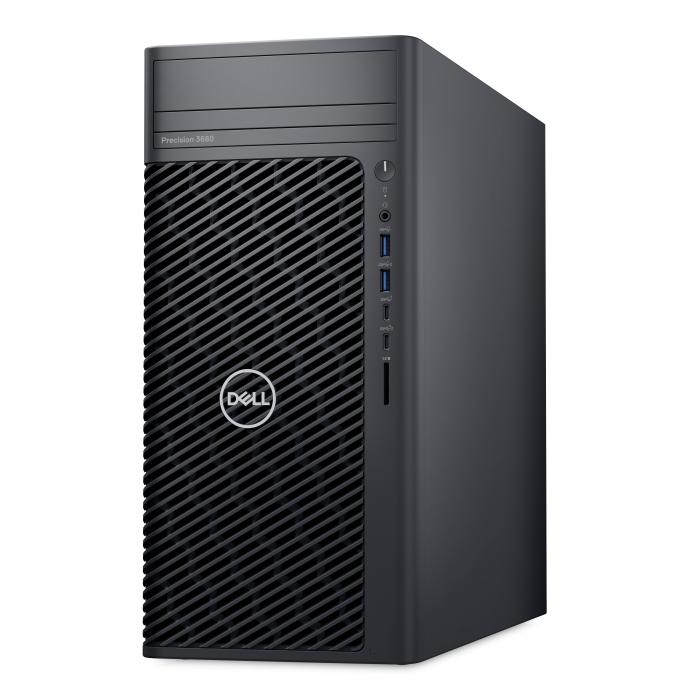

Name: DELL Precision 3680 Intel® Core™ i7 i7-14700K 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Tower Workstation Black
Brand: DELL
Availability: OutOfStock

DELL Precision 3680 Intel® Core™ i7 i7-14700K 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Tower Workstation Black

Not avaliable

DELL Precision 3680 Intel® Core™ i7 i7-14700K 32 GB DDR5-SDRAM 1 TB SSD Windows 11 Pro Tower Workstation Black. More info

Amount

Brand: DELL

SKU: 107016 PRC: 534744 EAN: 5397184865279 PN: JKPJP

Description

Specifications

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i7
Processor generation: Intel® Core™ i7 (14th gen)
Processor model: i7-14700K
Processor cores: 20
Processor threads: 28
Processor boost frequency: 5.6 GHz
Performance cores: 8
Efficient cores: 12
Performance-core Max Turbo Frequency: 5.5 GHz
Efficient-core Max Turbo Frequency: 4.3 GHz
Performance-core base frequency: 3.4 GHz
Efficient-core base frequency: 2.5 GHz
Processor cache: 33 MB
Processor cache type: Smart Cache
Number of processors installed: 1
Number of processors supported: 1
Processor base power: 125 W
Maximum turbo power: 253 W

Memory

Internal memory: 32 GB
Maximum internal memory: 128 GB
Internal memory type: DDR5-SDRAM
Memory layout (slots x size): 2 x 16 GB
Memory slots: 4x DIMM
ECC: No
Non-ECC: Yes
Memory channels: Dual-channel
Memory data transfer rate: 4400 MT/s

Storage

Total storage capacity: 1 TB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 1 TB
Number of SSDs installed: 1
SSD capacity: 1 TB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Compatible memory cards: Not supported
RAID support: No

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 770
Maximum on-board graphics card resolution: 7680 x 4320 pixels

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
LAN controller: Intel® I219-LM
Wi-Fi: No
Bluetooth: No

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
PowerShare: Yes
Number of USB ports with PowerShare support: 2
DisplayPorts quantity: 2
DisplayPort version: 1.4a
Ethernet LAN (RJ-45) ports: 1
Line-out: Yes
Combo headphone/mic port: Yes
Number of rear USB ports: 6
Number of front USB ports: 4
Number of front audio ports: 1
Number of rear audio ports: 1

Design

Chassis type: Tower
Placement supported: Vertical
Water cooling system: No
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Black
Viewing window: No
Intel® vPro™ Platform Eligibility: Yes

Performance

Market positioning: Business
Motherboard chipset: Intel W680
Audio chip: Realtek ALC3246-CG
Audio system: High Definition Audio
Built-in speaker(s): Yes
Number of speakers: 1
Password protection: Yes
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Product type: Workstation

Software

Operating system installed: Windows 11 Pro
Operating system architecture: 64-bit
Operating system language: English, Spanish, French, Italian, Portuguese
Trial software: No Microsoft Office Licence Included - 30 day Trial Offer Only

Power

Power supply: 1000 W
Power supply input voltage: 90 - 264 V
Power supply input frequency: 47/63 Hz
80 PLUS certification: 80 PLUS Platinum

Operational conditions

Operating temperature (T-T): 10 - 35 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 20 - 85%
Storage relative humidity (H-H): 0 - 95%
Operating altitude: -15.2 - 3048 m
Non-operating altitude: -15.2 - 10668 m
Operating vibration: 0.52 G
Non-operating vibration: 2 G
Operating shock: 40 G
Non-operating shock: 105 G

Sustainability

Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, EPEAT Gold

Weight & dimensions

Width: 173 mm
Depth: 420.2 mm
Height: 372.9 mm

Packaging content

Display included: No
Cables included: AC
