Description

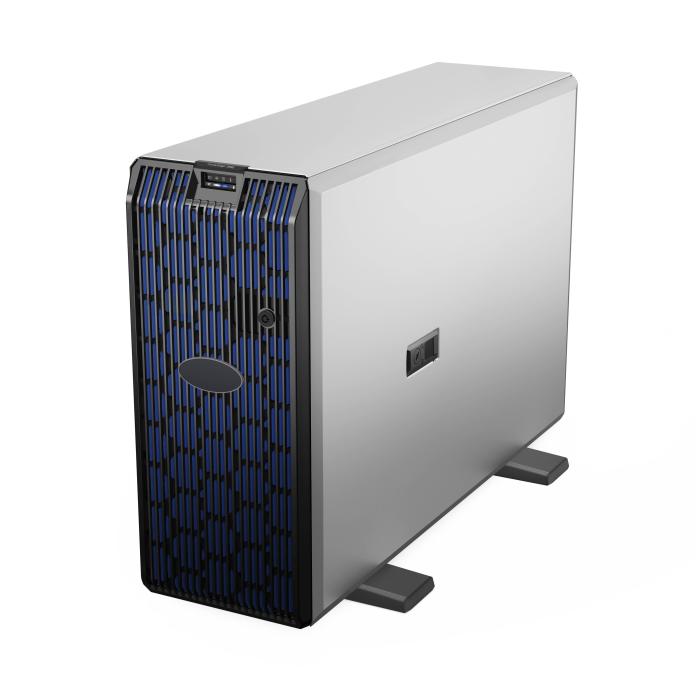

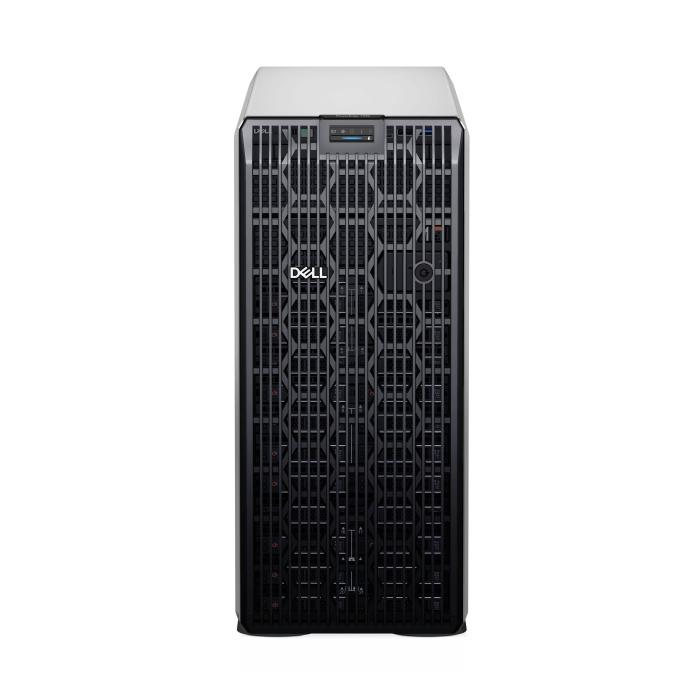

The DELL PowerEdge T560 server is a tower unit (4.5U) with an Intel Xeon Silver 4410Y processor at 2 GHz, 32 GB of DDR5-SDRAM memory and a total storage capacity of 480 GB split across one SSD drive, in black. It supports expanding the internal memory up to 1 TB and uses Registered (buffered) type memory, with a memory clock speed supported by the processor of 4000 MHz. Its power supply is 1100 W and the processor has a thermal design power of 150 W. It includes RAID support and a data transfer rate of 6 Gbit/s, with 512 bytes per sector. In connectivity it incorporates a Broadcom 5720 LAN controller with 10/100/1000Base-T(X) cabling technology and iDRAC9 Enterprise 16G remote management. It has two USB 2.0 ports, two USB 3.2 Gen 1 Type-A ports and one VGA (D-Sub) port, and is delivered without an operating system installed.
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel Xeon Silver
- Processor generation: Intel Xeon Scalable 4th Gen
- Processor model: 4410Y
- Processor frequency: 2 GHz
- Processor boost frequency: 3.9 GHz
- Processor cores: 12
- Processor cache: 30 MB
- Motherboard chipset: Intel C741
- Number of processors installed: 1
- Thermal Design Power (TDP): 150 W
- System bus rate: 16 GT/s
- Processor threads: 24
- Memory types supported by processor: DDR5-SDRAM
- Memory clock speeds supported by processor: 4000 MHz
Memory
- Internal memory: 32 GB
- Internal memory type: DDR5-SDRAM
- Buffered memory type: Registered (buffered)
- Memory ranking: 2
- Memory slots: 16x DIMM
- Memory layout (slots x size): 1 x 32 GB
- Memory data transfer rate: 5600 MT/s
- Maximum internal memory: 1 TB
Storage
- Total storage capacity: 480 GB
- Number of SSDs installed: 1
- SSD capacity: 480 GB
- SSD interface: SATA III
- SSD size: 2.5"
- Supported SSD sizes: 3.5"
- Number of SSDs supported: 8
- RAID support: Yes
- Supported RAID controllers: PERC H755
- Hot-swap: Yes
- Optical drive type: No
- Drive writes per day (DWPD): 1
- Storage drive adapter included: Yes
- Storage drive adapter type: 2.5" - 3.5"
Network
- LAN controller: Broadcom 5720
- Ethernet LAN: Yes
- Cabling technology: 10/100/1000Base-T(X)
- Ethernet interface type: Gigabit Ethernet
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- VGA (D-Sub) ports quantity: 1
Design
- Chassis type: Tower (4.5U)
- Product colour: Black
- Rack rails: Yes
Performance
- Remote administration: iDRAC9, Enterprise 16G
Software
- Operating system installed: No
- Compatible operating systems: Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Serv
Power
- Redundant power supply (RPS) support: No
- Power supply: 1100 W
- Number of main power supplies: 1
- Power supply input voltage: 220 V
Carbon footprint
- Total carbon footprint (kg of CO2e): 5989
- Total carbon emissions, standard deviation (kg of CO2e): 3189
- Carbon emissions, manufacturing (kg of CO2e): 419.23
- Carbon emissions, logistics (kg of CO2e): 299.45
- Carbon emissions, energy usage (kg of CO2e): 5210.43
- Carbon emissions, end-of-life (kg of CO2e): 59.89
- Total carbon emissions, w/o use phase (kg of CO2e): 778.57
- PAIA version: 1.3.2, 2022
Weight & dimensions
- Width: 200 mm
Other features
- Data transfer rate: 6 Gbit/s
- Bytes per sector: 512
