Description

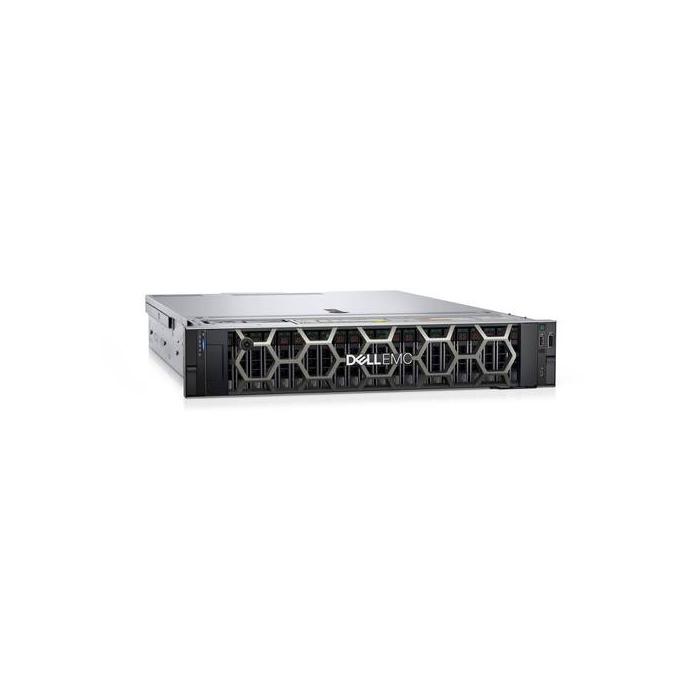

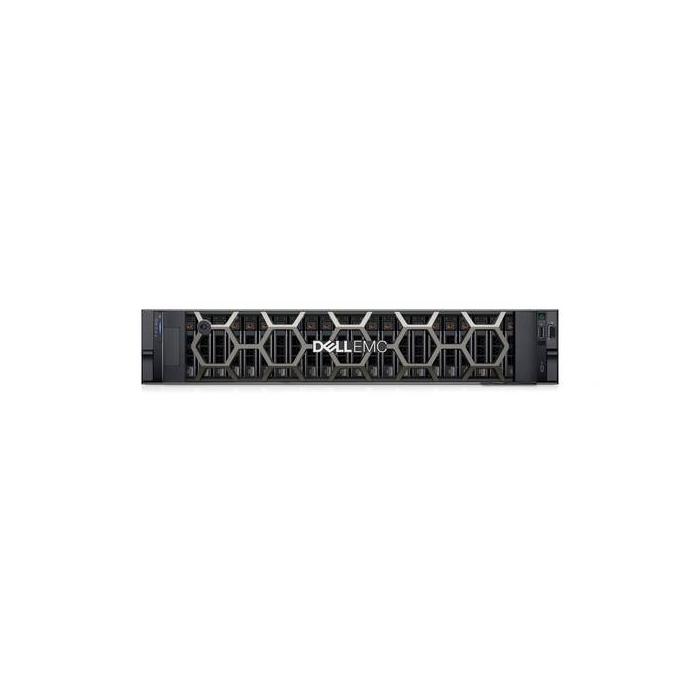

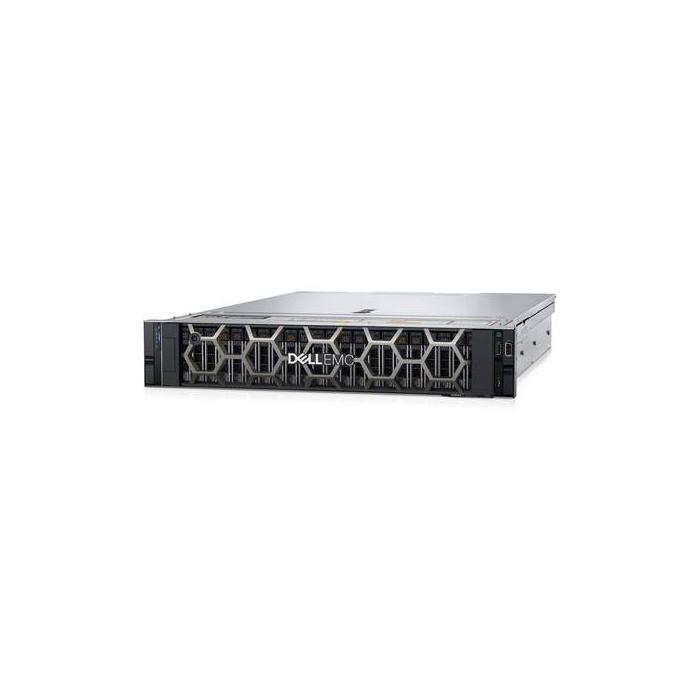

Dell PowerEdge R750XS server in 2U rack format with 480 GB of storage, equipped with an Intel Xeon Silver 4314 processor at 2.4 GHz (up to 3.4 GHz with turbo) and 32 GB of DDR4-SDRAM memory at 2666 MHz. Its single-CPU configuration supports up to 512 GB per processor and 1 TB of total memory across its 16 DIMM slots, with registered buffered modules reaching 3200 MT/s. It includes a 800 W power supply and a memory arrangement of 1 x 32 GB, designed for virtualised workloads or databases in corporate environments requiring gradual expansion.
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel Xeon Silver
- Processor generation: 3rd Generation Intel® Xeon® Scalable
- Processor model: 4314
- Processor frequency: 2.4 GHz
- Processor boost frequency: 3.4 GHz
- Processor cache: 24 MB
- Number of processors installed: 1
- Maximum internal memory supported by processor: 512 GB
Memory
- Internal memory: 32 GB
- Internal memory type: DDR4-SDRAM
- Buffered memory type: Registered (buffered)
- Memory ranking: 2
- Memory slots: 16x DIMM
- Memory clock speed: 2666 MHz
- Memory layout (slots x size): 1 x 32 GB
- Memory data transfer rate: 3200 MT/s
- Maximum internal memory: 1 TB
Storage
- Total storage capacity: 480 GB
- Number of SSDs installed: 1
- SSD capacity: 480 GB
- SSD interface: SATA III
- SSD size: 2.5"
- Supported SSD sizes: 3.5"
- Number of SSDs supported: 8
- Supported RAID controllers: PERC H755
- Hot-Plug support: Yes
- Optical drive type: No
- Drive writes per day (DWPD): 1
- Storage drive adapter included: Yes
- Storage drive adapter type: 2.5" - 3.5"
Graphics
- On-board graphics card model: Not available
Network
- LAN controller: Broadcom 57412
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
- Power cables quantity: 1
Expansion slots
- PCI Express x4 slots: 1
- PCI Express x16 slots: 1
Design
- Chassis type: Rack (2U)
- Product colour: Black
- Rack rails: Yes
- Bezel: Yes
Performance
- Remote administration: iDRAC9, Enterprise 15G
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: No
- Compatible operating systems: Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterpri
Power
- Redundant power supply (RPS) support: Yes
- Power supply: 800 W
- Number of redundant power supplies supported: 2
- Number of main power supplies: 1
- Power cable length: 2 m
- Power cable connector 1: C13 coupler
- Power cable connector 2: C14 coupler
- Power cable current: 10 A
Operational conditions
- Operating temperature (T-T): 10 - 35 °C
- Storage temperature (T-T): -40 - 65 °C
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
- Non-operating altitude: 0 - 12000 m
Logistics data
- Harmonized System (HS) code: 84714100
Carbon footprint
- Total carbon footprint (kg of CO2e): 8930
- Total carbon emissions, standard deviation (kg of CO2e): 4770
- Carbon emissions, manufacturing (kg of CO2e): 1037
- Carbon emissions, logistics (kg of CO2e): 162
- Carbon emissions, energy usage (kg of CO2e): 7700
- Carbon emissions, end-of-life (kg of CO2e): 26
- Total carbon emissions, w/o use phase (kg of CO2e): 1225
- PAIA version: 1.3.2, 2022
Weight & dimensions
- Height: 86.8 mm
Other features
- Drive bays: 8
- Data transfer rate: 6 Gbit/s
- Bytes per sector: 512
