DELL Dock – WD19S 130W

More info

Brand: DELL

Not avaliable

Stock available: 0 units.

Unavailable

SKU: 87190 PRC: 310819 EAN: 5397184513972 PN: WD19S-130W

Description

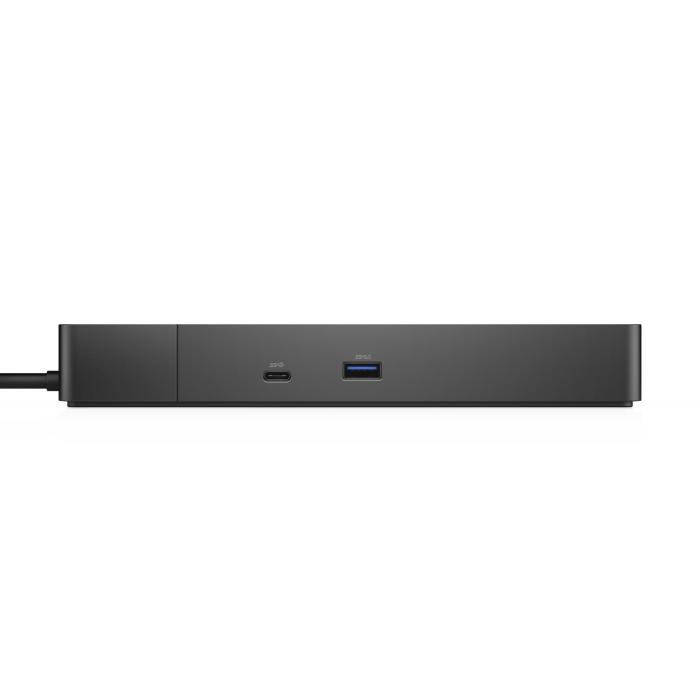

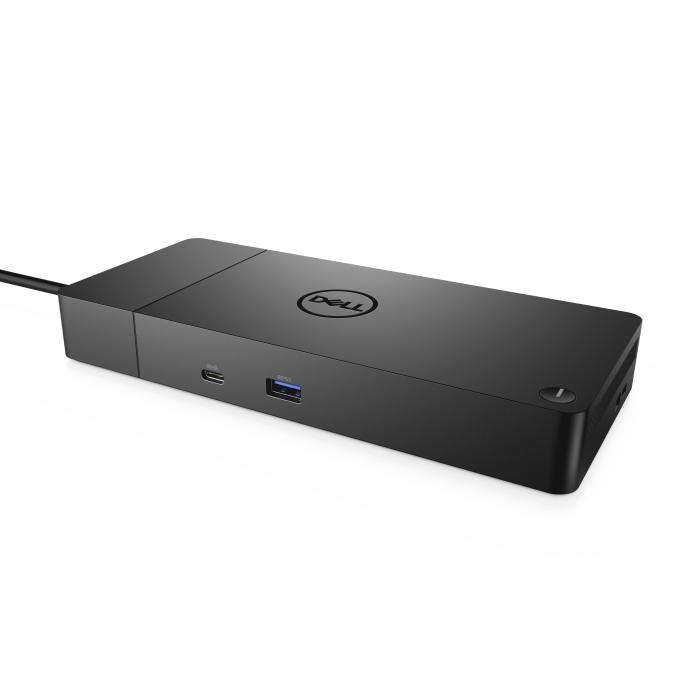

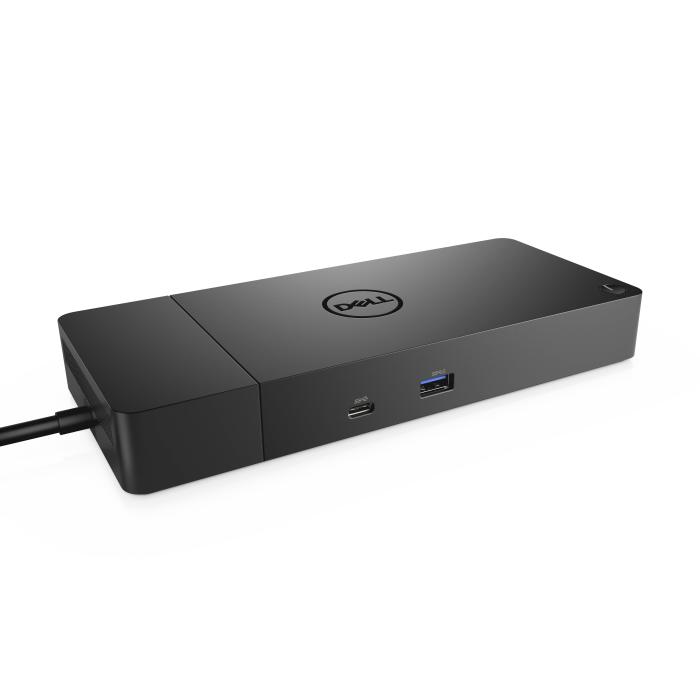

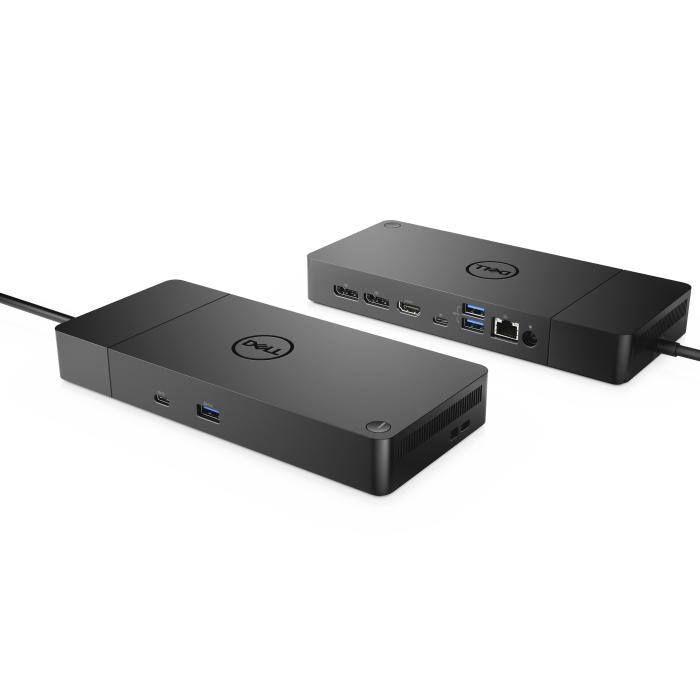

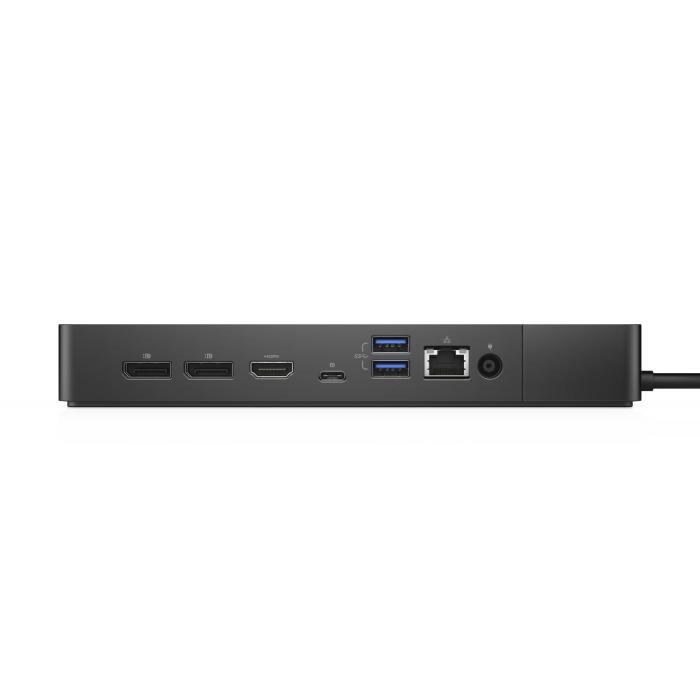

The Dell WD19S 130 W docking station connects your laptop to the rest of your equipment with a single cable. Its host interface is USB 3.2 Gen 2 Type-C, so you simply plug in the cable to have all the ports available. It includes three USB Type-A USB 3.2 Gen 1 ports and two USB Type-C USB 3.2 Gen 2 ports for peripherals and storage. For displays it offers one HDMI 2.0 port with HDMI 2.0 version and two DisplayPort with DisplayPort 1.4 version, with a maximum digital resolution of 5120 x 2880 pixels. The network connection is handled by an RJ-45 Ethernet port with transfer speeds of 10, 100 and 1000 Mbit/s. It includes a DC power input connector, built-in on/off switch and LED indicators. Its VESA mounting allows it to be attached to a compatible bracket. It comes in black, with a weight of 585 g and dimensions of 205 x 29 x 90 mm (width x height x depth).

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 2
DisplayPort version: 1.4
Microphone in: No
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100, 1000 Mbit/s

Performance

Card reader integrated: No
Maximum digital resolution: 5120 x 2880 pixels
VESA mounting: Yes
Product colour: Black
On/off switch: Yes
LED indicators: Yes

Power

Power source type: DC
AC input voltage: 120 - 230 V
AC input frequency: 50 - 60 Hz
Power supply: 130 W
Power cable length: 1 m

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
Linux operating systems supported: Yes
