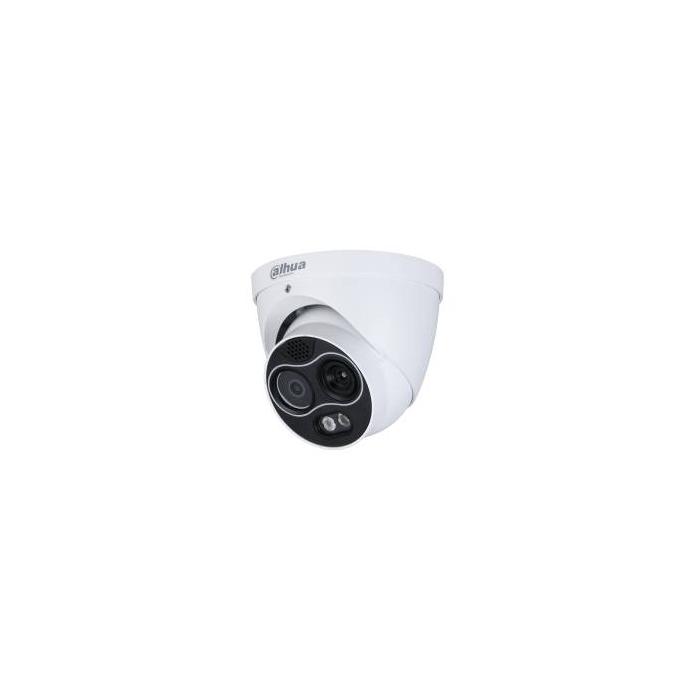

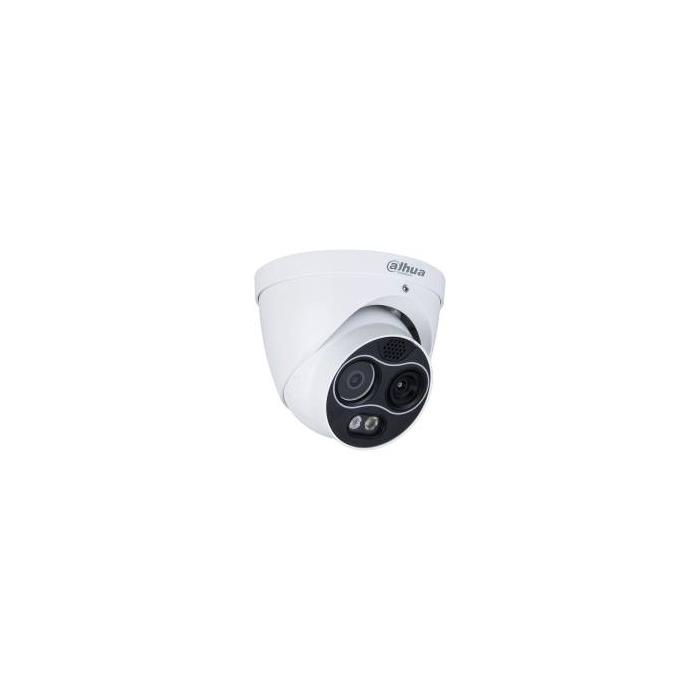

Dahua Technology Lite TPC-DF1241-T-S2 Turret IP security camera Indoor & outdoor 2336 x 1752 pixels Ceiling/wall
More info
Brand: DAHUA TECHNOLOGY
591.92 €
489.19 €
without VAT
incl. 21 % VAT
Stock available: 7 units.
Get it
on the
October 16
/
October 19
SKU:
134265
PRC:
680312
EAN:
6939554923739
Description
The Dahua Technology TPC-DF1241-T-S2 is a turret-type IP security camera for indoor and outdoor use, with ceiling or wall mounting and a maximum resolution of 2336 x 1752 pixels. It incorporates a thermal sensor with an effective resolution of 256 x 192 pixels and offers night vision up to 30 metres. It records video at 30 fps with a dynamic range of 55 dB and an adjustable shutter speed between 1/30000 and 1 second, in automatic or manual mode. Its connectivity is wired, with an RJ-45 Ethernet LAN port and an RS-485 port, and it supports MicroSD cards up to 256 GB. Among the compatible network protocols are HTTPS, HTTP, TCP, RTSP, SMTP, DHCP, DNS, SNMP, QoS and NTP, with support for up to 10 users.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Dynamic range: 55 dB
Design
- Form factor: Turret
- Mounting type: Ceiling/wall
- Product colour: White
- International Protection (IP) code: IP67
Camera
- Minimum illumination: 0.05 lx
- Lens viewing angle, horizontal: 71.2°
- Lens viewing angle, vertical: 52°
- White balance: Auto, Indoor, Manual, Natural, Outdoor, Street lamp
- Camera pixel size: 12 µm
- Response waveband: 8 - 14 µm
- Camera shutter speed: 1/30000 - 1 s
- Adjustment shutter speed: Auto/Manual
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Sensor type (thermal module): Vanadium Oxide Uncooled Focal Plane Arrays
- Effective sensor resolution (thermal module): 256 x 192 pixels
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Digital zoom: 16x
- Focal length range: 4 mm
- Maximum aperture number: 1
Night vision
- Night vision: Yes
- Night vision distance: 30 m
- LED type: IR
Video
- Maximum resolution: 2336 x 1752 pixels
- Total megapixels: 4 MP
- Video compression formats: H.264B, H.264H, H.264M, H.265, H.265 Pro
- Supported graphics resolutions: 352 x 288, 640 x 480 (VGA), 704 x 576, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
- Frame rate: 30 fps
- Thermal frame rate (NTSC): 50 Hz
- Thermal frame rate (PAL): 60 Hz
- Noise reduction: Yes
- Noise reduction technology: 2D noise reduction, 3D noise reduction
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Digital Wide Dynamic Range (DWDR): Yes
- Region of Interest (ROI) encoding: Yes
Audio
- Audio input channels: 1.0 channels
- Audio output channels: 1.0 channels
- Voice codecs: AGC
Network
- Ethernet LAN: Yes
- Supported network protocols: HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
- Number of users: 10 user(s)
Storage
- Built-in HDD: No
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 256 GB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- RS-485 ports: 1
Security
- Alarm input channels: 1
- Alarm output channels: 1
- Human and vehicle targets classification: Yes
Management features
- Web browser: Yes
Power
- Power source type: DC, PoE
- Power consumption (max): 13 W
- DC output voltage: 12
- DC output current: 1.2 A
Operational conditions
- Operating temperature (T-T): -30 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Height: 122 mm
- Diameter: 12.2 cm
- Weight: 850 g
Packaging data
- Package width: 155 mm
- Package depth: 155 mm
- Package height: 135 mm
- Package weight: 1 kg
Packaging content
- Number of cameras: 1
