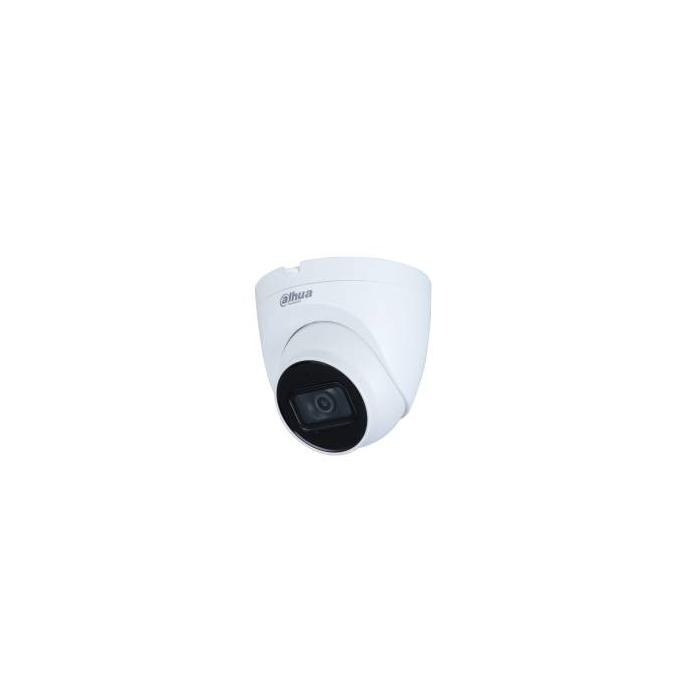

Name: Dahua Technology Lite IPC-HDW2231T-AS-0280B-S2 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Brand: DAHUA TECHNOLOGY
Availability: OutOfStock

Dahua Technology Lite IPC-HDW2231T-AS-0280B-S2 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Not avaliable

Dahua Technology Lite IPC-HDW2231T-AS-0280B-S2 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall. More info

Amount

Brand: DAHUA TECHNOLOGY

SKU: 94679 PRC: 380368 EAN: 6939554979125 PN: ipc-hdw2231t-as-0280b-s2

Description

Specifications

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Remote viewing: Yes
Dynamic range: 120 dB
Certification: CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: White
Housing material: Metal, Plastic
Protection features: Vandal proof
International Protection (IP) code: IP67

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0 lx
Angle of rotation: 360°
Lens viewing angle, horizontal: 107°
Lens viewing angle, vertical: 56°
Lens viewing angle, diagonal: 127°
Tilt angle range: 0 - 78°
Pan range: 0 - 360°
White balance: Auto, Custom modes, Manual, Natural, Outdoor
Camera shutter speed: 1/3 - 1/100000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 43.9 m
Observe distance: 17.5 m
Recognize distance: 8.8 m
Fixed focus: Yes
Maximum aperture number: 1.6
Identify distance: 4.4 m
Fixed focal length: 2.8 mm
Closest focusing distance: 0.7 m

Night vision

Night vision: No
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 2

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG
Supported graphics resolutions: 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes: 720p, 1080p
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto/Manual
Flip & mirror: Yes
Privacy masking: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: H.264: 32 Kbps–6144 Kbps; H.265: 12 Kbps–6144 Kbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes

Audio

Audio formats supported: AAC, G.711 A-law, G.711 μ-law
Audio codecs: AAC,G.711,G.711 A-law,G.726
Signal-to-Noise Ratio (SNR): 52 dB
Built-in microphone: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
Wi-Fi: No
Bluetooth: No
Number of users: 20 user(s)
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: Yes
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB
Internal memory: 128 MB
ROM capacity: 128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Video motion detection: Yes
Active tampering alarm: Yes
Privacy protection: Yes
Intelligent Video Surveillance (IVS) system features: Intrusion, Tripwire
Motion sensor: Yes
Mirror: Yes
Digital watermark: Yes

Management features

Web browser: Yes

Power

Power source type: DC, PoE
Power consumption (max): 5.5 W
Power consumption (Power over Ethernet (PoE)): 6.1 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%

System requirements

Mobile operating systems supported: Android, iOS

Weight & dimensions

Height: 100.9 mm
Diameter: 11 cm
Weight: 390 g

Packaging data

Package weight: 560 g

Sustainability

Compliance certificates: CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Packaging content

Number of cameras: 1

Dahua Technology Lite IPC-HDW2231T-AS-0280B-S2 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
