Description

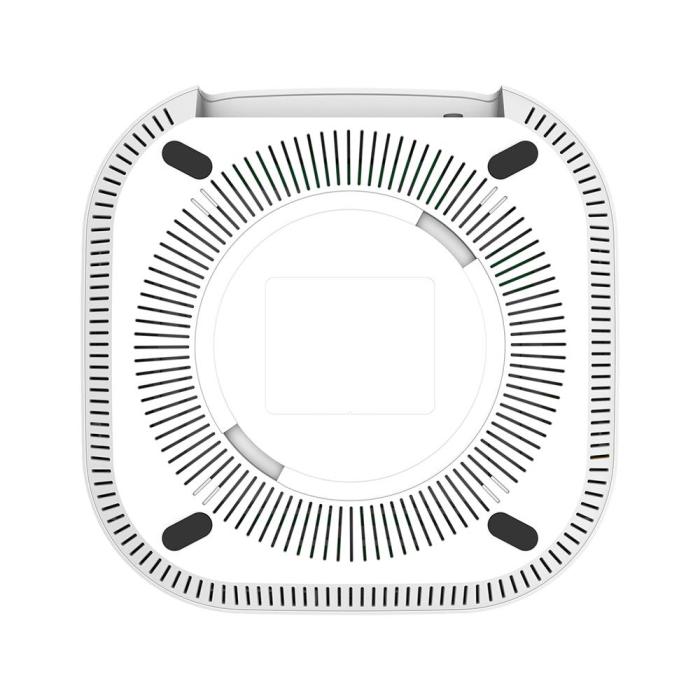

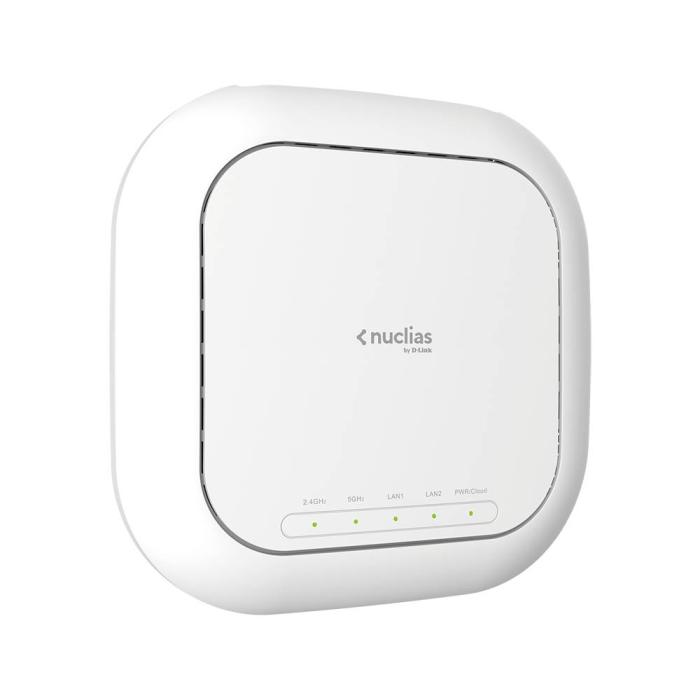

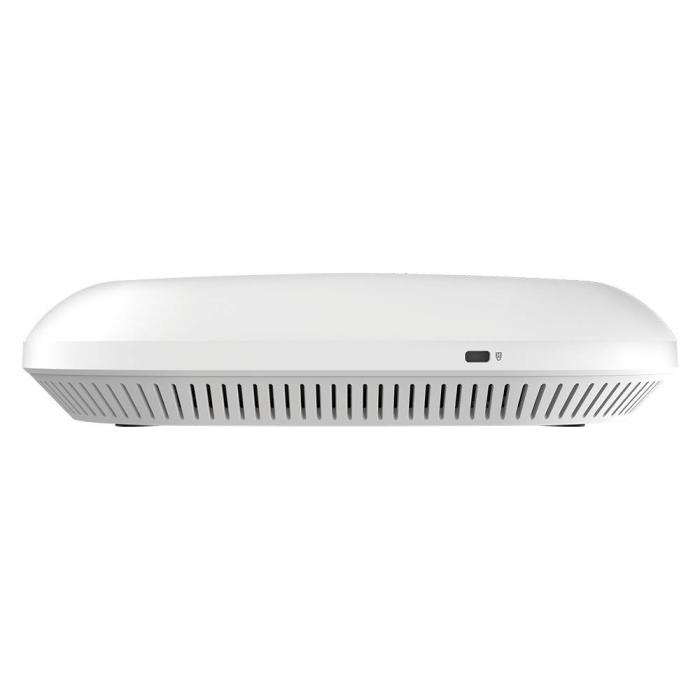

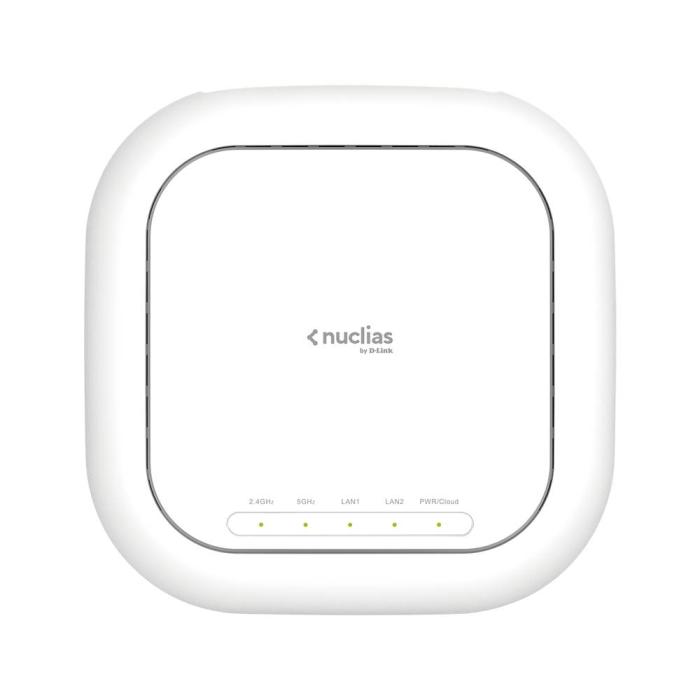

The D-Link DBA-2520P is a white wireless access point offering simultaneous connectivity on the 2.4 GHz and 5 GHz bands, with maximum speeds of 600 Mbit/s and 1299 Mbit/s respectively, reaching a maximum data transfer speed of 1900 Mbit/s. It incorporates MIMO Multi User MIMO technology alongside a transmission power of 25 dBmW and flow control support. It features two RJ-45 Ethernet LAN ports with speeds of 10, 100 and 1000 Mbit/s, and supports up to 16 SSIDs with SSID, WPA, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3 and WPA3-PSK security algorithms, as well as MAC address filtering. It includes a DHCP server and operates at an output voltage of 12 V, with a power consumption of 16.92 W. Its dimensions are 224.5 x 50 x 223.8 mm (width x height x depth) and its weight is 811 g.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1900 Mbit/s
- Maximum data transfer rate (2.4 GHz): 600 Mbit/s
- Maximum data transfer rate (5 GHz): 1299 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3at, IE
- MIMO: Yes
- MIMO type: Multi User MIMO
- Flow control support: Yes
- Transmitting power: 25 dBmW
Security
- Security algorithms: SSID, WPA, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
- MAC address filtering: Yes
- Number of SSID supported: 16
Protocols
- DHCP server: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
Power
- Power over Ethernet (PoE): Yes
- Output voltage: 12 V
- Output current: 2.5 A
- Power consumption (typical): 16.92 W
- Power consumption (max): 19.68 W
Design
- Placement: Ceiling, Table, Wall
- Product colour: White
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antennas quantity: 2
- Antenna gain level (max): 4 dBi
Certificates
- Certification: CE B, FCC B, UL, IC B
Weight & dimensions
- Width: 224.5 mm
- Depth: 223.8 mm
- Height: 50 mm
- Weight: 811 g
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 65 °C
- Storage relative humidity (H-H): 5 - 95%
Logistics data
- Harmonized System (HS) code: 85176990
