Description

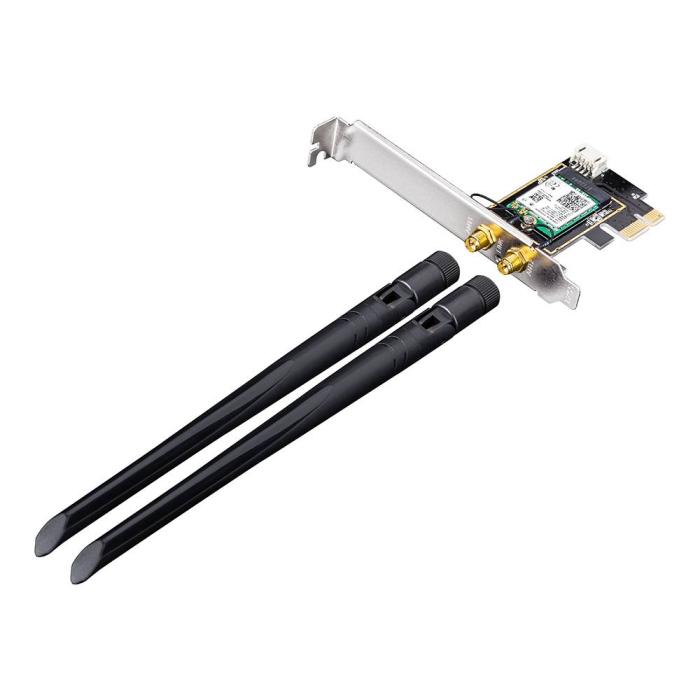

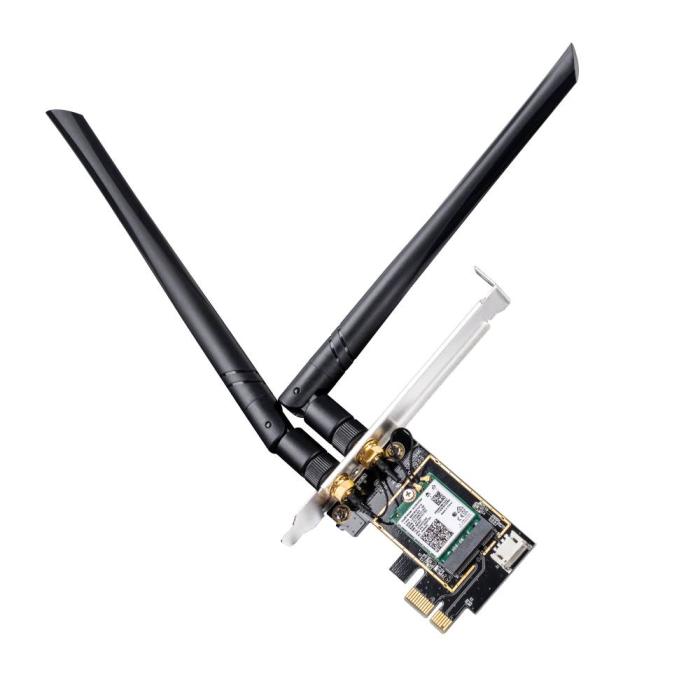

The Cudy WE3000 network card connects via PCI Express and adds WLAN and Bluetooth 5.2 connectivity to your system, with a full-height form factor that fits most towers. Its Intel AX210 controller supports tri-band Wi-Fi 6E, achieving speeds of up to 2400 Mbit/s on the 6 GHz band and 574 Mbit/s on 2.4 GHz, while also being compatible with the 802.11a/b/g/n/ac/ax standards. It includes two antennas with 5 dBi gain, WPA3 security, and OFDMA technology to manage multiple devices on congested networks. It also offers Bluetooth 5.2, allowing you to connect wireless peripherals without occupying additional USB ports.
Specifications
Ports & interfaces
- Connectivity technology: Wireless
- Host interface: PCI Express
- Interface: WLAN / Bluetooth
- PCI Card form factor: Full-height (low-profile)
Network
- Maximum data transfer rate: 2400 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wi-Fi: Yes
- Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN data transfer rates supported: 574, 2402 Mbit/s
- Spread spectrum method: OFDMA
- Security algorithms: WPA3
- Bluetooth: Yes
- Bluetooth version: 5.2
- LAN controller: Intel AX210
Design
- Component for: PC
- Internal: Yes
- Antenna: Yes
- Antenna design: External
- Antenna direction type: Omni-directional
- Antenna gain level (max): 5 dBi
System requirements
- Windows operating systems supported: Windows 10, Windows 11
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -10 - 80 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 65 mm
- Depth: 44.5 mm
- Height: 1.6 mm

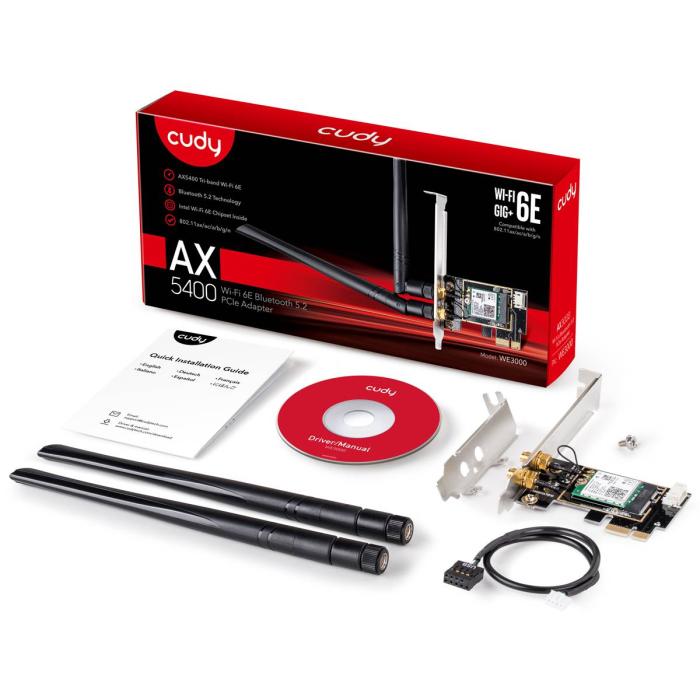

Packaging content
- Mounting brackets included: Yes
- Resource CD: Yes
- Bluetooth header cable: Yes
- Quick installation guide: Yes
Other features

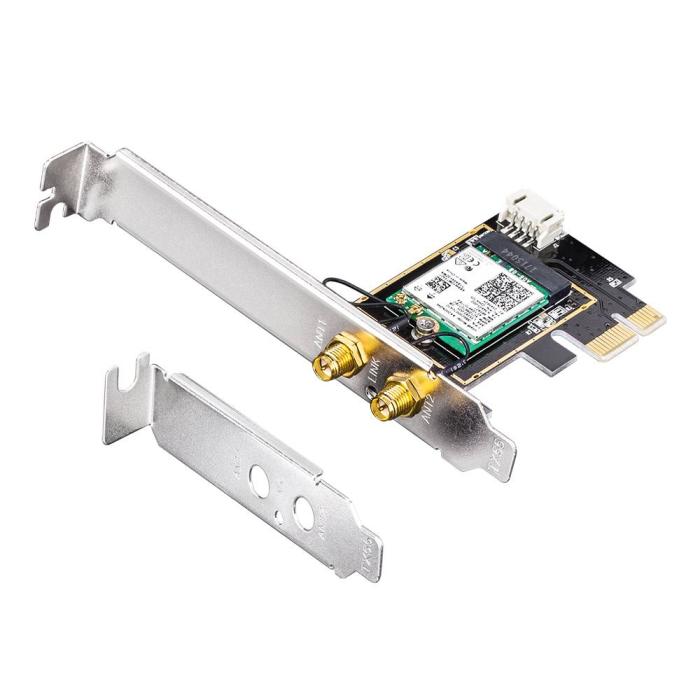

- Bracket height: Low-Profile (LP) / Full-Height (FH)
