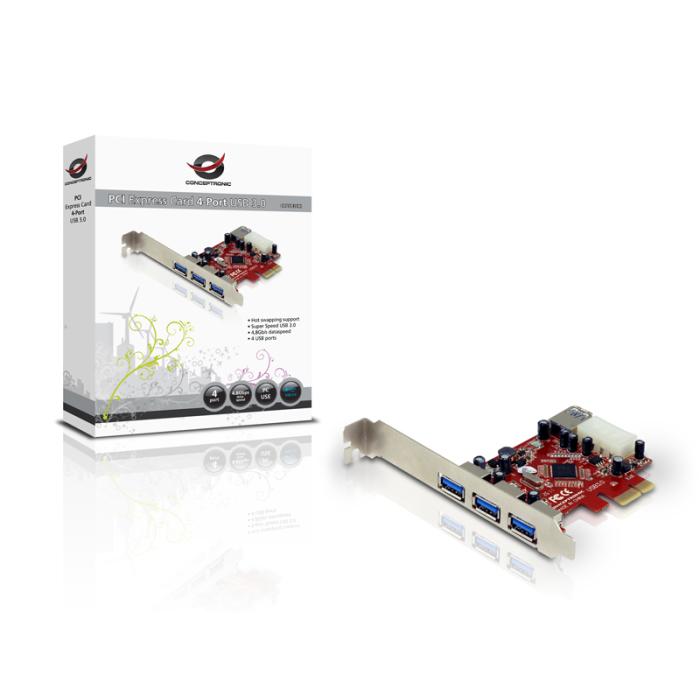

Conceptronic PCI Express Card 4-Port USB 3.0
More info
Brand: CONCEPTRONIC
20.73 €Stock available: 0 units.
Unavailable
SKU:
112740
PRC:
86547
EAN:
8714909023917
PN:
C4USB3EXI-V1
Description

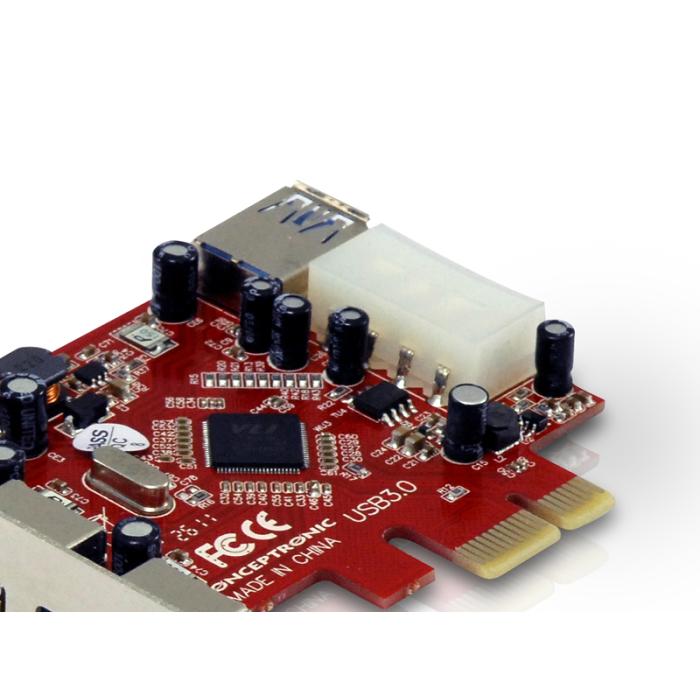

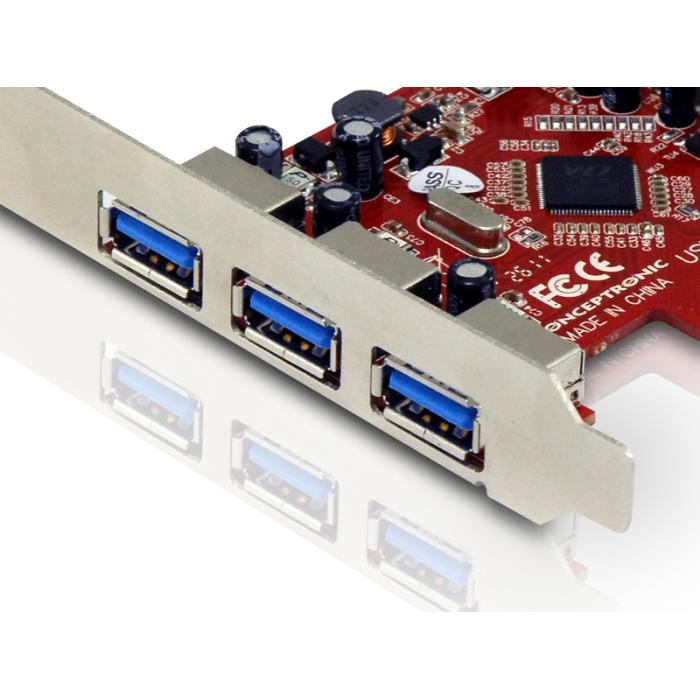

The Conceptronic C4USB3EXI card expands your equipment with USB 3.2 Gen 1 (3.1 Gen 1) connectivity via a PCIe host interface. It incorporates three USB 3.2 Gen 1 (3.1 Gen 1) type A ports and one internal USB 3.2 Gen 1 (3.1 Gen 1) port, and integrates the VIA VL800 processor. It reaches a maximum data transfer rate of 4.8 Gbit/s, and its hot-swap function allows devices to be connected and disconnected without turning off the system. It is installed inside the equipment and features a red and silver colour, with dimensions of 84 x 66 x 1.6 mm (width x height x depth) and a weight of 40 g. It is compatible with Windows operating systems and is supplied with drivers and a quick installation guide.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 1
Design
- Internal: Yes
- Product colour: Red, Silver
- Hot-swap: Yes
- Country of origin: China
Features
- Built-in processor: Yes
- Processor model: VIA VL800
- Data transfer rate (max): 4.8 Gbit/s
System requirements
- Windows operating systems supported: Yes
Weight & dimensions
- Width: 84 mm
- Depth: 1.6 mm
- Height: 66 mm
- Weight: 40 g
Packaging data
- Drivers included: Yes
- Quick installation guide: Yes
- Package width: 156 mm
- Package depth: 26 mm
- Package height: 132 mm
- Package weight: 40 g
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
