Conceptronic DONN06G 10-in-1 USB 3.2 Gen 1 Docking Station, HDMI, 100W USB PD, USB-C 5Gbps x 2, USB-A 5Gbps x 3, SD, TF/MicroSD, GbE
More info
Brand: CONCEPTRONIC
51.94 €
42.93 €
without VAT
Stock available: 3 units.
Get it
on the
August 27
/
August 28
SKU:
127373
PRC:
638326
EAN:
4015867237809
PN:
110515507301
Description

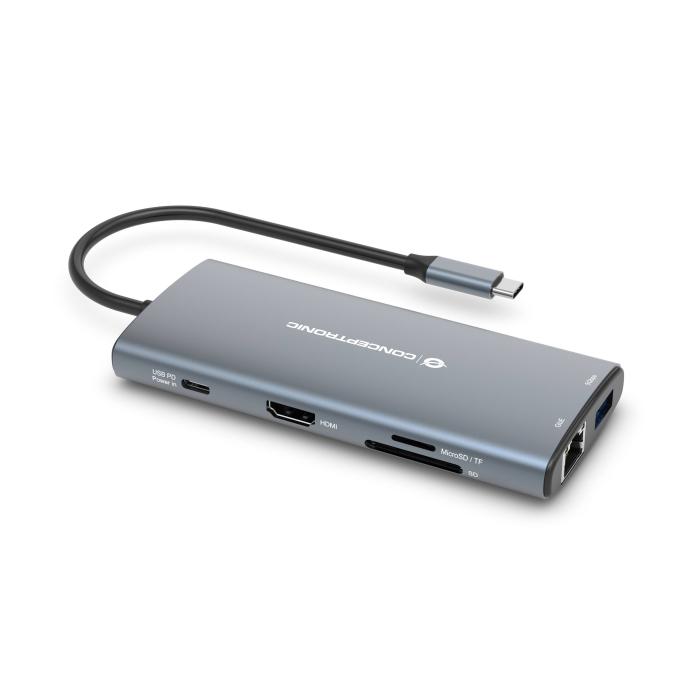

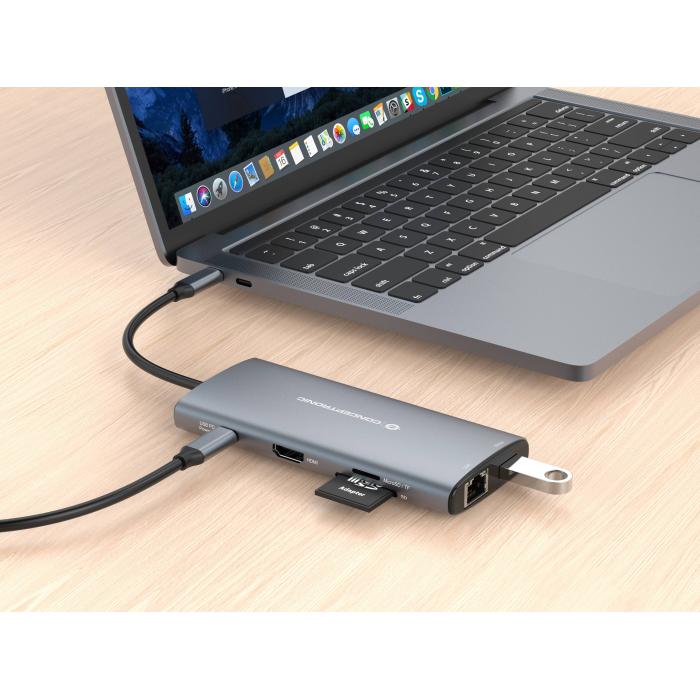

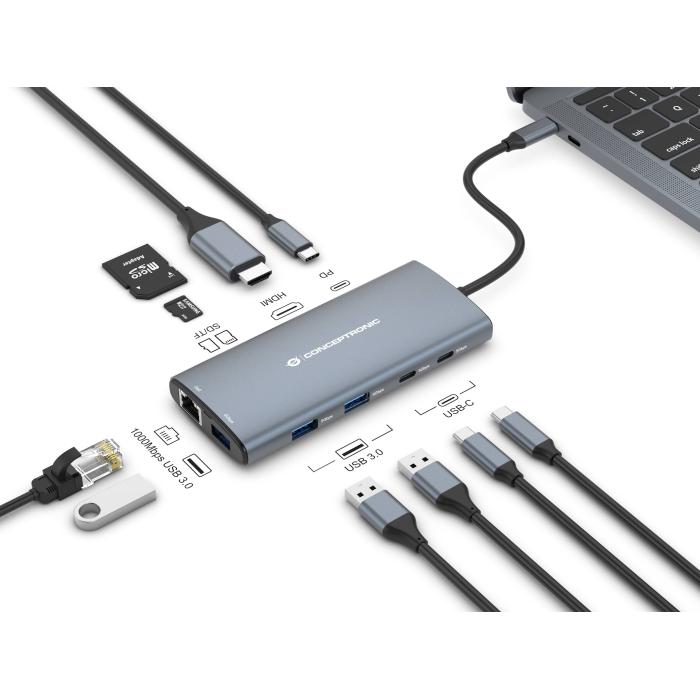

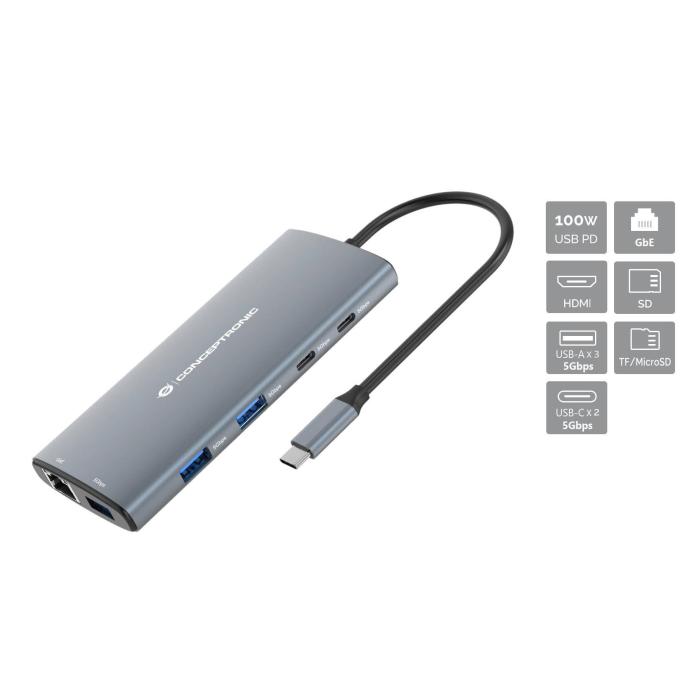

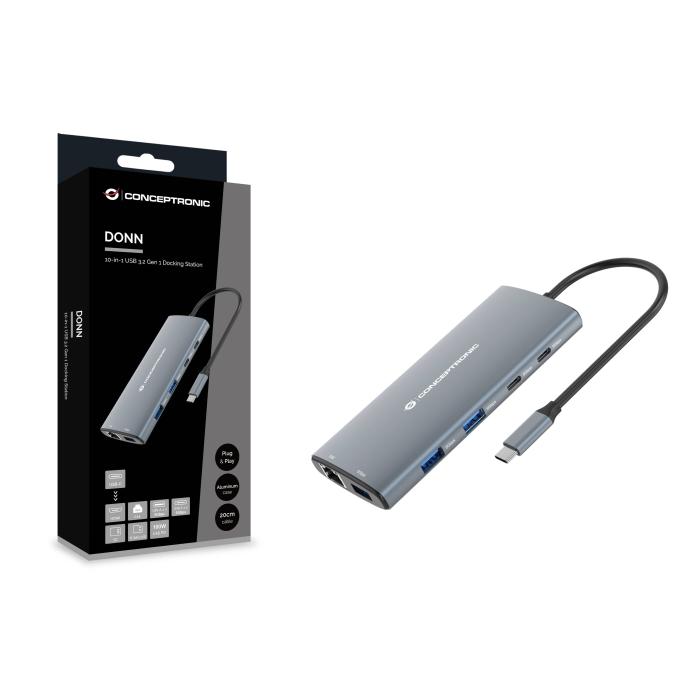

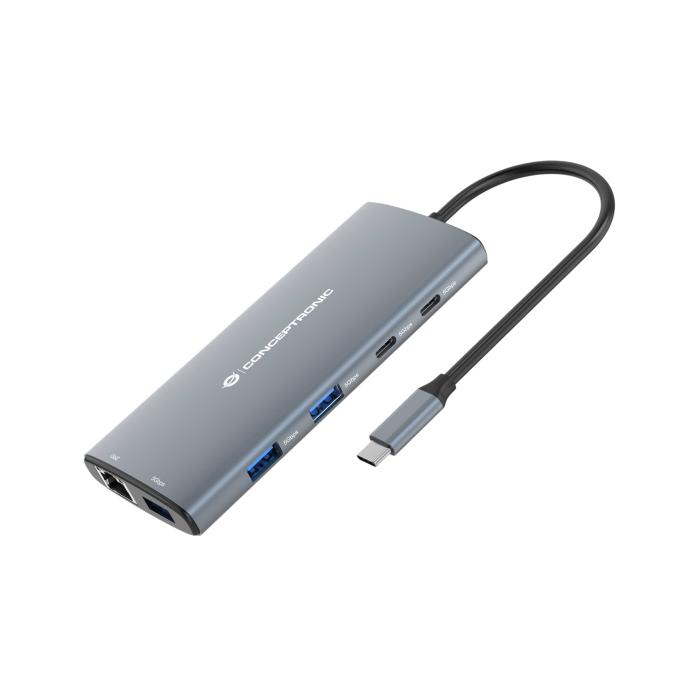

Conceptronic's grey USB Type-C adapter, model DONN06G, expands your laptop's connectivity with three USB 3.2 Gen 1 Type-A ports, three Type-C ports, and an HDMI 1.4 output supporting 4K Ultra HD resolutions. Its aluminium housing integrates a card reader for SD, SDHC, SDXC, MicroSD, MicroSDHC, and MicroSDXC formats, plus an RJ-45 Ethernet port with speeds of 10, 100, and 1000 Mbit/s. Connection to the device is made via a fixed cable with a USB 3.2 Gen 1 Type-C host interface, and it supports USB power delivery with Power Delivery 3.0 up to 100 W to charge the host device.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.0
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- HDMI version: 1.4
- Microphone in: No
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Wake-on-LAN ready: Yes
Performance
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
- Data transfer rate: 5 Gbit/s
- HD type: 4K Ultra HD
- Maximum digital resolution: 3840 x 2160 pixels
- Product colour: Grey
- Plug and Play: Yes
- Housing material: Aluminium
- Country of origin: China
Power
- Power source type: USB
- USB cable length: 0.2 m
Software
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Mobile operating systems supported: Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1
Operational conditions
- Operating temperature (T-T): -40 - 80 °C
Weight & dimensions
- Width: 55.4 mm
- Depth: 16.6 mm
- Height: 125 mm
- Weight: 99 g
Packaging data
- Package width: 95 mm
- Package depth: 20 mm
- Package height: 200 mm
- Package weight: 135 g
Packaging content
- Quick start guide: Yes
Logistics data
- Products per master (outer) case: 40 pc(s)
- Master (outer) case width: 400 mm
- Master (outer) case length: 220 mm
- Master (outer) case height: 225 mm
- Master (outer) case gross weight: 6.1 kg
- Harmonized System (HS) code: 8517623500
- Pallet gross width: 120 cm
- Pallet gross length: 80 cm
- Pallet gross height: 112.5 cm
Other features
- Master (outer) cases per pallet: 30 pc(s)
